LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-1610)

Click highlighted areas on diagram

2ﾎﾝｽﾎﾟｰｸ

diagram 45100 45105 45130 45176 45180 45201P 9014950032 9356054012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36140B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MD.CHARCOAL,TRIM1#

 1
45100-37040B1

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-36030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
45130 - BUTTON ASSY, HORN
45130-37140B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-36120B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#

 1
45176 - RING, HORN CONTACT
45176-36020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-36030B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
Common parts
90149-50032
93560-54012

(0107-1610)

Click highlighted areas on diagram

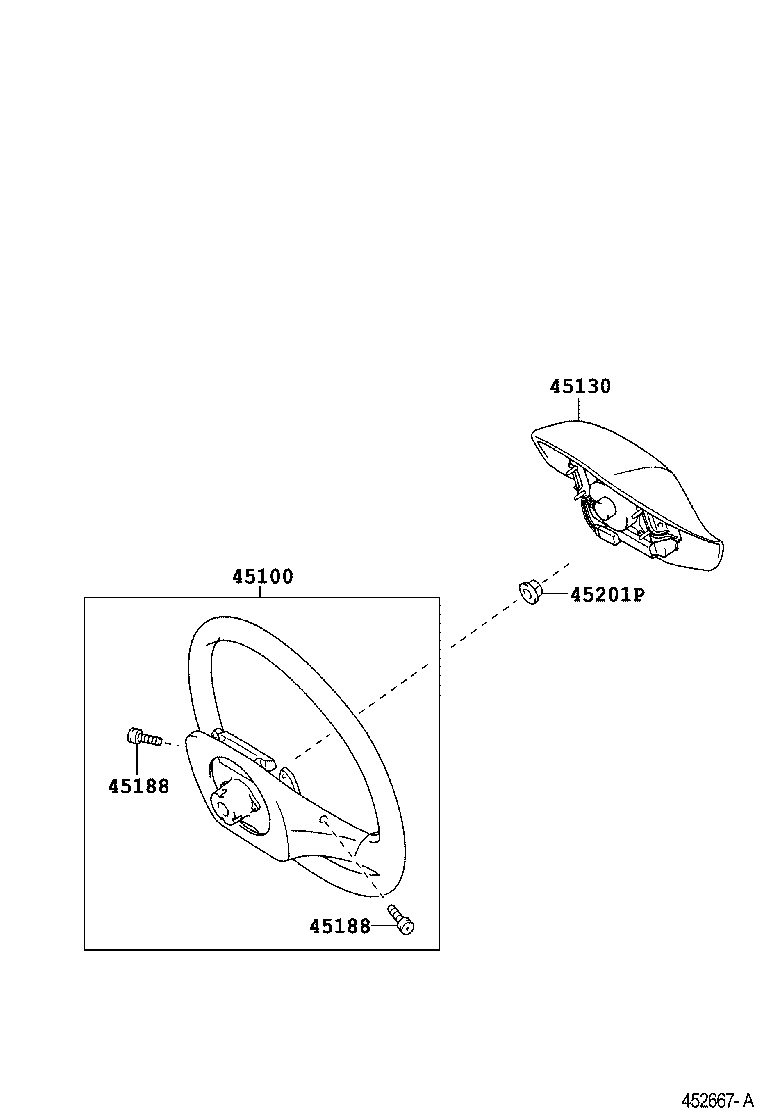

2ﾎﾝｽﾎﾟｰｸ,ｱﾘ(ｴｱﾊﾞｯｸﾞ)

diagram 45100 45130 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36140B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MD.CHARCOAL,TRIM1#

 1
45100-37040B1

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-37140B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-36120B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

長さ=15.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

長さ=15.5

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
