LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )KDY27#,28#,290,LY270,280,290,RZY281,TRY281

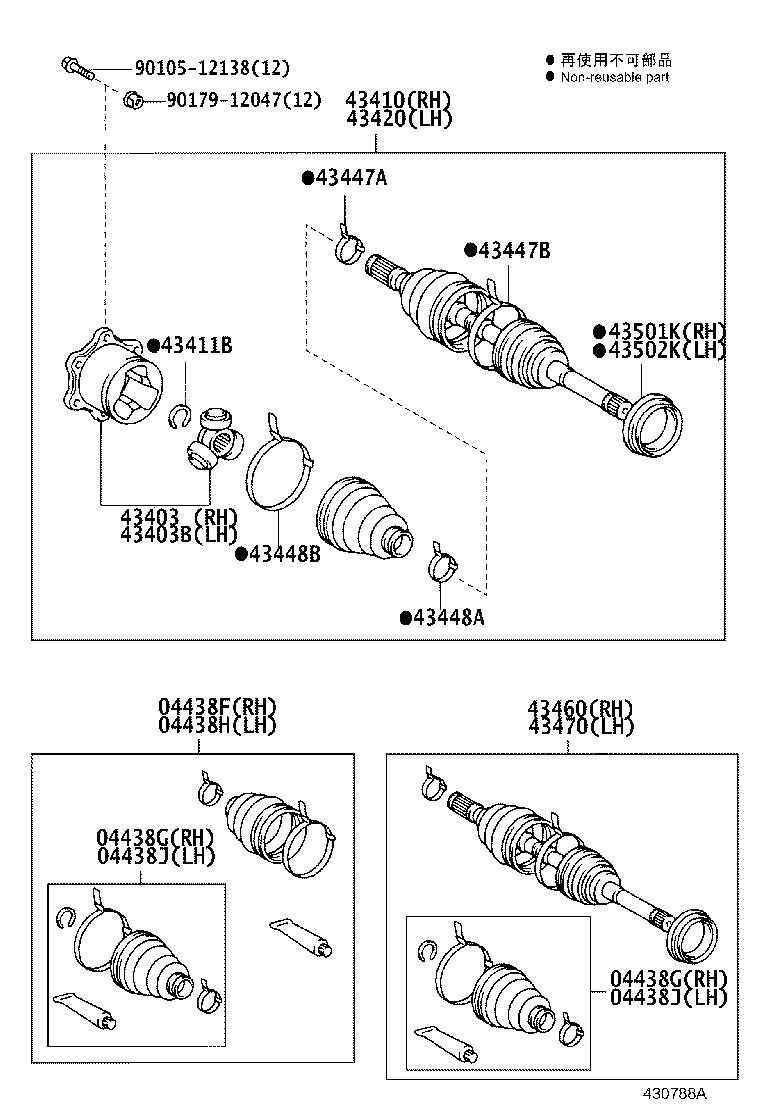

Click highlighted areas on diagram

diagram 04438F 04438G 04438G 04438H 04438J 04438J 43403 43403B 43410 43411B 43420 43447A 43447B 43448A 43448B 43460 43470 43501K 43502K 9010512138 9017912047
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-25020

KDY270,280,290,LY270,280,290,RZY281

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-25010

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-25010

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 1
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-25020

KDY270,280,290,LY270,280,290,RZY281

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-25010

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-25010

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 1
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-35020

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 1
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43403-35020

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43430-25011

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-29028

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 2
43420 - SHAFT ASSY, FRONT DRIVE, LH
43430-25011

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-60110

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 2
90949-01A51

LY270,280,290

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01A50

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01221

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01222

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-29435

KDY270,280,290,LY270,280,290,RZY281

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43460-29435

KDY270,280,290,LY270,280,290,RZY281

 1
43501K - SEAL, DUST (FOR FRONT AXLE HUB RH)
90304-76005

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 1
43502K - SEAL, DUST (FOR FRONT AXLE HUB LH)
90304-76005

KDY27#,28#,290,LY270,280,290,RZY281,TRY281

 1
Common parts
90105-12138
90179-12047
