LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace

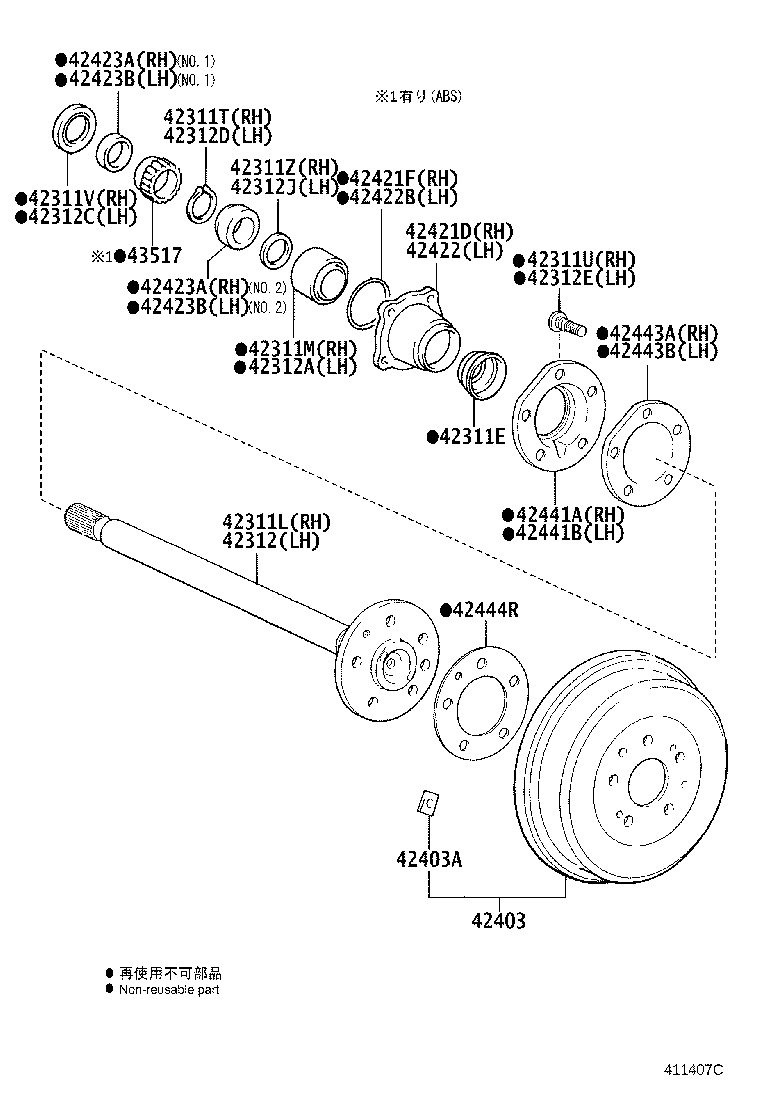

(0107- )KDY231,280,LY230,280,RZY230,TRY230..12T,15T..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-62001 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
2 | ||
| 90313-62001 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-25130 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42311-25130 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90369-48001 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90369-48001 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90520-44038 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90520-44038 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02052 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
6 | ||
| 90942-02052 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-58002 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90310-58002 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42311Z - WASHER(FOR REAR AXLE SHAFT RH) | ||||
| 90208-48002 |
KDY280..TW1;KDY230,280..15T..ST |
1 | ||
| 90208-48002 |
KDY280..TW1;KDY230,280..15T..ST |
1 | ||
| 90208-48002 |
LY230,280..(12T,15T)..ST |
1 | ||
| 90208-48002 |
LY230,280..(12T,15T)..ST |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-25130 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42311-25130 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90369-48001 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90369-48001 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-58002 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90310-58002 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90520-44038 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90520-44038 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02052 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
6 | ||
| 90942-02052 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
6 | ||
| 42312J - WASHER (FOR REAR AXLE SHAFT LH) | ||||
| 90208-48002 |
LY230,280..(12T,15T)..ST |
1 | ||
| 90208-48002 |
LY230,280..(12T,15T)..ST |
1 | ||
| 90208-48002 |
KDY280..TW1;KDY230,280..15T..ST |
1 | ||
| 90208-48002 |
KDY280..TW1;KDY230,280..15T..ST |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-25130 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
2 | ||
| 42431-25130 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01119 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 30G |
1 | ||
| 90937-01119 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 30G |
1 | ||
| 90937-01118 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 20G |
1 | ||
| 90937-01118 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 20G |
1 | ||
| 90937-01117 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 10G |
1 | ||
| 90937-01117 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 10G |
1 | ||
| 42421D - CASE, REAR AXLE BEARING, RH | ||||
| 42422-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42422-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) | ||||
| 90301-85004 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90301-85004 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42422 - CASE, REAR AXLE BEARING, LH | ||||
| 42421-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42421-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) | ||||
| 90301-85004 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90301-85004 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-25090 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42441-25090 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-25090 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42441-25090 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH | ||||
| 42443-55020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
1 | ||
| 42443-55020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
1 | ||
| 42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH | ||||
| 42443-55020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
1 | ||
| 42443-55020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
1 | ||
| 42444R - GASKET, BRAKE DRUM (FOR REAR AXLE) | ||||
| 42444-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
2 | ||
| 42444-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
2 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-60020 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
2 | ||
| 43517-60020 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
2 | ||

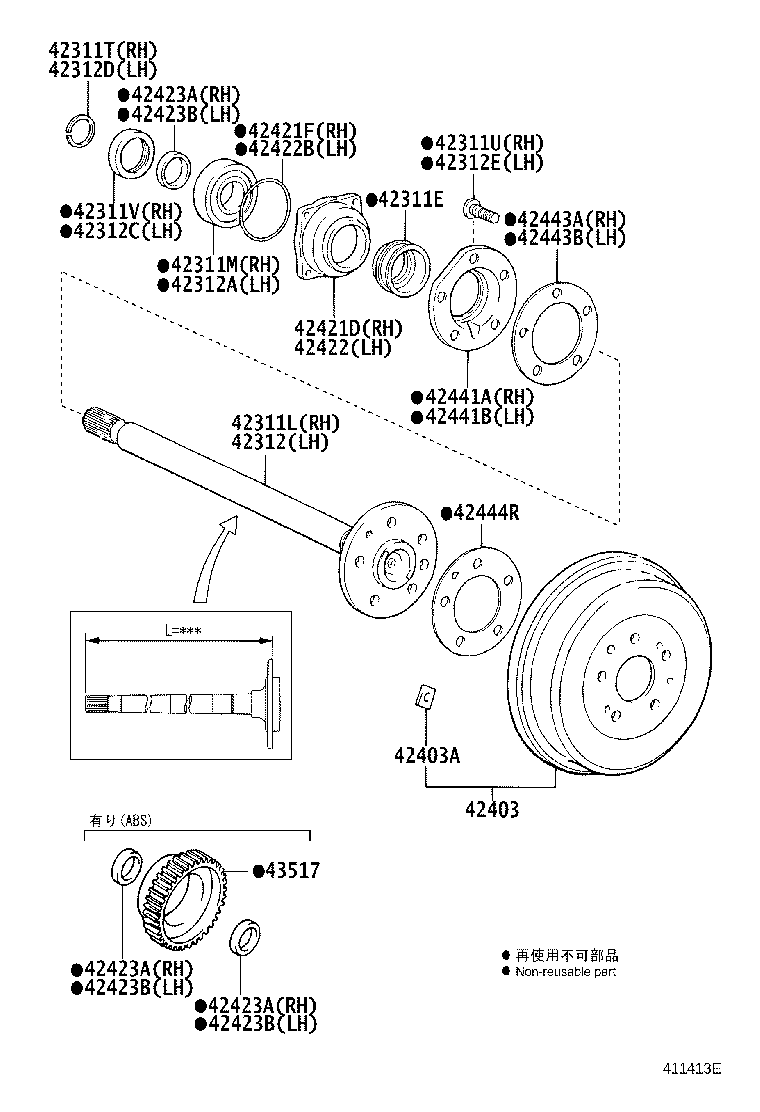

(0107- )KDY280..T3,TW3..TS ; (0107- )KDY281,TRY230..T2,T3,TW3..125T,1T ; (010
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-62001 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
2 | ||
| 90313-62001 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-25130 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42311-25130 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90369-48001 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90369-48001 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90520-44038 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90520-44038 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02052 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
6 | ||
| 90942-02052 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-58002 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90310-58002 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-25130 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42311-25130 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90369-48001 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90369-48001 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-58002 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90310-58002 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90520-44038 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90520-44038 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02052 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
6 | ||
| 90942-02052 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
6 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-25130 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
2 | ||
| 42431-25130 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01119 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 30G |
1 | ||
| 90937-01119 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 30G |
1 | ||
| 90937-01118 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 20G |
1 | ||
| 90937-01118 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 20G |
1 | ||
| 90937-01117 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 10G |
1 | ||
| 90937-01117 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 10G |
1 | ||
| 42421D - CASE, REAR AXLE BEARING, RH | ||||
| 42422-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42422-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) | ||||
| 90301-85004 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90301-85004 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42422 - CASE, REAR AXLE BEARING, LH | ||||
| 42421-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42421-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) | ||||
| 90301-85004 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 90301-85004 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60030 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.1 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42423-60040 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST NO.2 |
1 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-25090 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42441-25090 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-25090 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42441-25090 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
1 | ||
| 42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH | ||||
| 42443-55020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
1 | ||
| 42443-55020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
1 | ||
| 42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH | ||||
| 42443-55020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
1 | ||
| 42443-55020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
1 | ||
| 42444R - GASKET, BRAKE DRUM (FOR REAR AXLE) | ||||
| 42444-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
2 | ||
| 42444-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
2 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-60020 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
2 | ||
| 43517-60020 |
KDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
