LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

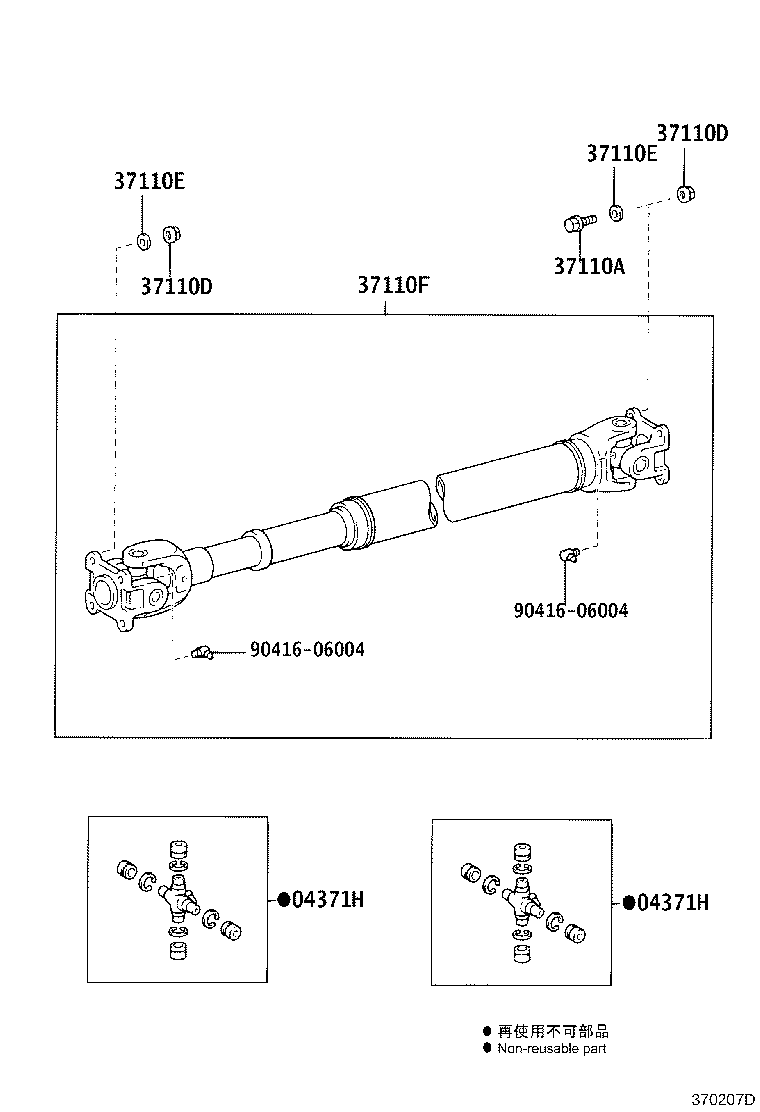

(0107-0210)LY270,280 ; (0107-0210)LY220,240,290,RZY220..WT ; (0107-0210)LY230,RZY23

Click highlighted areas on diagram

ﾘﾔ

diagram 04371H 04371H 37110A 37110D 37110D 37110E 37110E 37110F 9041606004 9041606004
Part # Description Qty Price
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-60070

LY220..125T..ST;LY230..125T..WT;LY280..MTM..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL;LY220,280..(T2,T3,T4,TW1)..MTM..(12T,15T,1T);KDY22#,23#,24#,27#,28#,LY240,RZY231,281,TRY220,23#,281

 2
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-60070

LY220..125T..ST;LY230..125T..WT;LY280..MTM..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL;LY220,280..(T2,T3,T4,TW1)..MTM..(12T,15T,1T);KDY22#,23#,24#,27#,28#,LY240,RZY231,281,TRY220,23#,281

 2
37110A - BOLT (FOR PROPELLER SHAFT)
90105-11013

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

*11−1.00PX28−16

 4
37110D - NUT (FOR PROPELLER SHAFT)
90179-11005

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

高さ=10

 8
37110D - NUT (FOR PROPELLER SHAFT)
90179-11005

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

高さ=10

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90201-11013

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90201-11013

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

 8
37110F - SHAFT ASSY, PROPELLER, REAR
37110-25700

LY280..MTM..125T..WT;LY280,RZY281..MTM..(12T,15T)

 1
Common parts
90416-06004

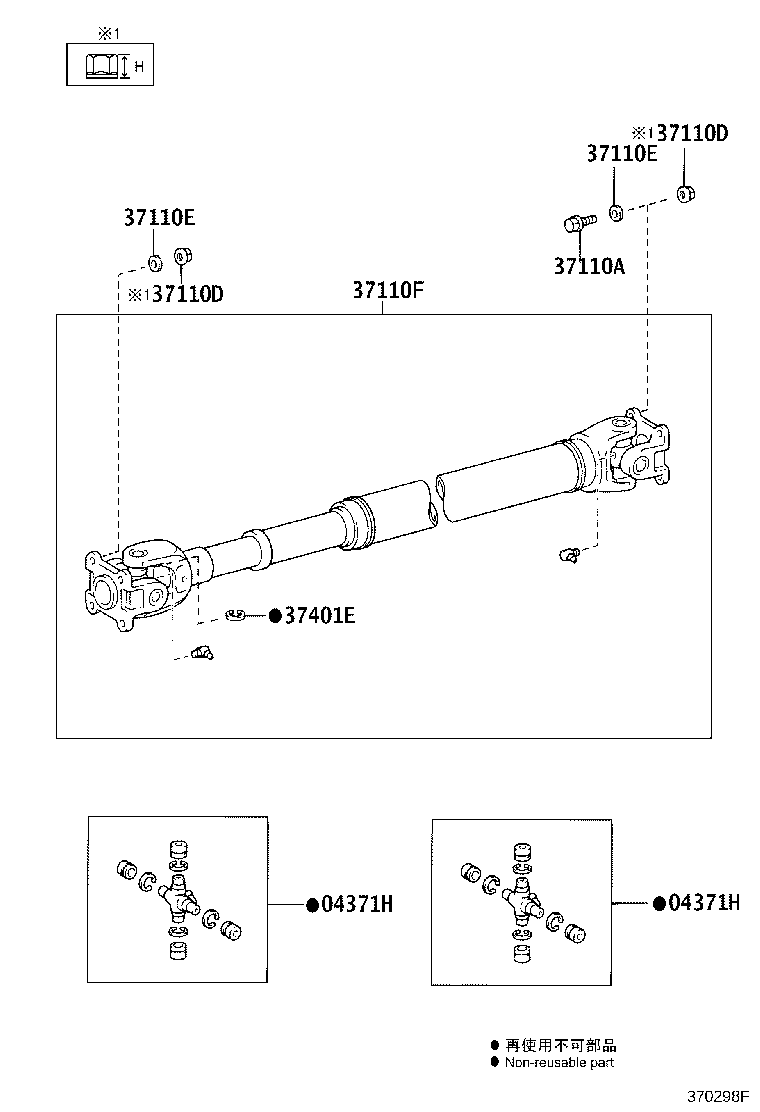

(0210- )KDY27#,28#,LY270,280 ; (0210- )KDY23#,LY230,RZY230,TRY230..12T,15T,17

Click highlighted areas on diagram

ﾘﾔ

diagram 04371H 04371H 37110A 37110D 37110D 37110E 37110E 37110F 37401E
Part # Description Qty Price
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-60070

LY220..125T..ST;LY230..125T..WT;LY280..MTM..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL;LY220,280..(T2,T3,T4,TW1)..MTM..(12T,15T,1T);KDY22#,23#,24#,27#,28#,LY240,RZY231,281,TRY220,23#,281

 2
04371-60070

LY220..125T..ST;LY230..125T..WT;LY280..MTM..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL;LY220,280..(T2,T3,T4,TW1)..MTM..(12T,15T,1T);KDY22#,23#,24#,27#,28#,LY240,RZY231,281,TRY220,23#,281

 2
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-60070

LY220..125T..ST;LY230..125T..WT;LY280..MTM..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL;LY220,280..(T2,T3,T4,TW1)..MTM..(12T,15T,1T);KDY22#,23#,24#,27#,28#,LY240,RZY231,281,TRY220,23#,281

 2
04371-60070

LY220..125T..ST;LY230..125T..WT;LY280..MTM..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL;LY220,280..(T2,T3,T4,TW1)..MTM..(12T,15T,1T);KDY22#,23#,24#,27#,28#,LY240,RZY231,281,TRY220,23#,281

 2
37110A - BOLT (FOR PROPELLER SHAFT)
90105-11013

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

*11−1.00PX28−16

 4
90105-11013

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

*11−1.00PX28−16

 4
37110D - NUT (FOR PROPELLER SHAFT)
90179-11005

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

高さ=10

 8
90179-11005

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

高さ=10

 8
37110D - NUT (FOR PROPELLER SHAFT)
90179-11005

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

高さ=10

 8
90179-11005

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

高さ=10

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90201-11013

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

 8
90201-11013

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90201-11013

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

 8
90201-11013

KDY280,LY280..TB;KDY280,LY230,280..TW1;LY230..(T3,T4,TW4)..TB;KDY23#,281,TRY230..TW1,TW4;RZY230..(T3,T4,TW1,TW4)..MTM;KDY23#,LY230,RZY230,TRY230..T2..15T..ST;KDY22#,23#,24#,281,290,LY220,240,290,RZY220,231,281,TRY220,23#,281..(T3,T4,VAN)..15T

 8
37110F - SHAFT ASSY, PROPELLER, REAR
37110-25700

LY280..MTM..125T..WT;LY280,RZY281..MTM..(12T,15T)

 1
37110-25700

LY280..MTM..125T..WT;LY280,RZY281..MTM..(12T,15T)

 1
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90520-25040

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.31,ﾏｰｸ 2

 4
90520-25040

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.31,ﾏｰｸ 2

 4
90520-25039

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.29,ﾏｰｸ 1

 4
90520-25039

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.29,ﾏｰｸ 1

 4
90520-25041

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.33,ﾏｰｸ無

 4
90520-25041

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.33,ﾏｰｸ無

 4
90520-25042

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.35,ﾌﾞﾗｳﾝ

 4
90520-25042

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.35,ﾌﾞﾗｳﾝ

 4
90520-25043

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.37,ﾌﾞﾙｰ

 4
90520-25043

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.37,ﾌﾞﾙｰ

 4
90520-25044

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.39,ﾏｰｸ 6

 4
90520-25044

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.39,ﾏｰｸ 6

 4
90520-25050

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.51,ﾏｰｸ B

 4
90520-25050

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.51,ﾏｰｸ B

 4
90520-25047

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.45,ﾏｰｸ 9

 4
90520-25047

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.45,ﾏｰｸ 9

 4
90520-25045

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.41,ﾏｰｸ 7

 4
90520-25045

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.41,ﾏｰｸ 7

 4
90520-25049

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.49,ﾏｰｸ A

 4
90520-25049

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.49,ﾏｰｸ A

 4
90520-25048

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.47,ﾏｰｸ 10

 4
90520-25048

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.47,ﾏｰｸ 10

 4
90520-25052

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.55,ﾏｰｸ D

 4
90520-25052

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.55,ﾏｰｸ D

 4
90520-25046

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.43,ﾏｰｸ 8

 4
90520-25046

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.43,ﾏｰｸ 8

 4
90520-25051

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.53,ﾏｰｸ C

 4
90520-25051

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.53,ﾏｰｸ C

 4
90520-25057

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.25,ﾏｰｸ G

 4
90520-25057

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.25,ﾏｰｸ G

 4
90520-25053

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.57,ﾏｰｸ E

 4
90520-25053

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.57,ﾏｰｸ E

 4
90520-25054

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.19,ﾏｰｸ D

 4
90520-25054

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.19,ﾏｰｸ D

 4
90520-25056

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.23,ﾏｰｸ F

 4
90520-25056

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.23,ﾏｰｸ F

 4
90520-25055

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.21,ﾏｰｸ E

 4
90520-25055

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.21,ﾏｰｸ E

 4
90520-25058

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.27,ﾏｰｸ H

 4
90520-25058

KDY23#..15T;TRY230..WT..IV6;KDY23#..125T..WT;LY280..MTM..125T..WT;TRY230..TS..125T..WT;KDY27#,28#,TRY231,281;KDY22#,24#,290,LY280,RZY281..MTM..(12T,15T)

厚さ=2.27,ﾏｰｸ H

 4

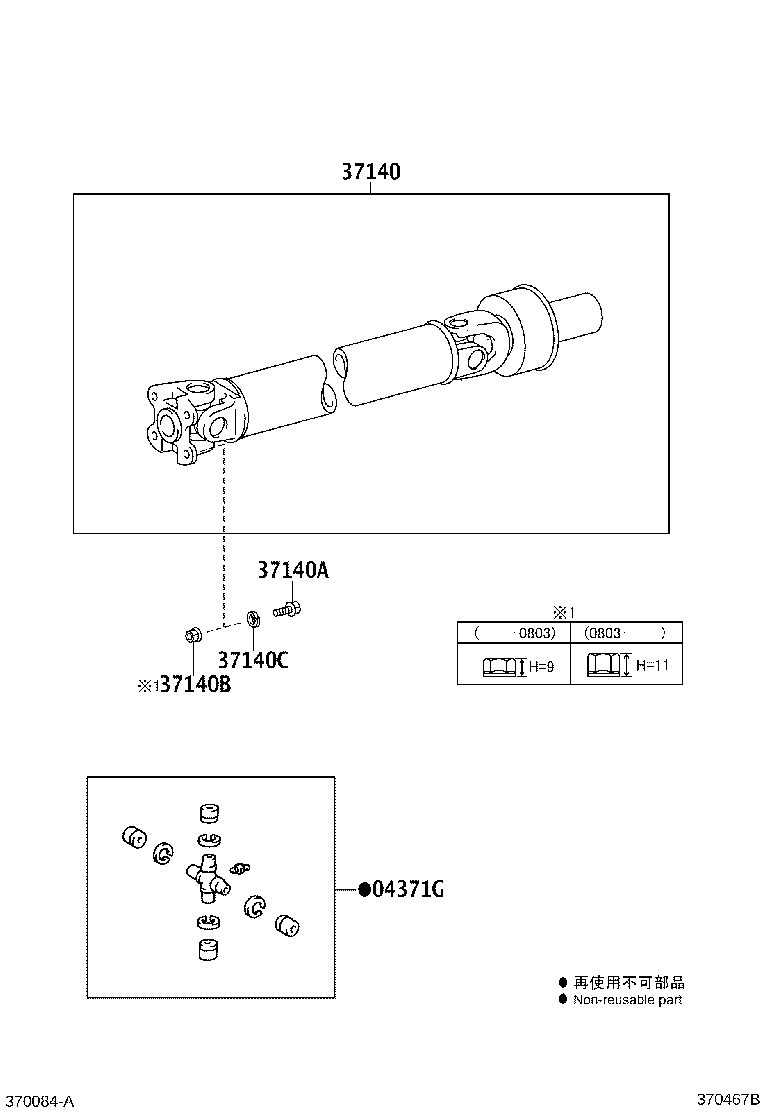

(0107- )KDY27#,28#,290,LY270,280,290,RZY281,TRY281

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 04371G 37140 37140A 37140B 37140C
Part # Description Qty Price
04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT
04371-60051

LY280..LPG;LY270,280,290..MTM..DSL

 2
04371-60051

KDY270,280,290,RZY281

 2
04371-60051

LY270,280,290..MTM

 2
37140 - SHAFT ASSY, PROPELLER, FRONT
37140-25030

LY270,280,290..MTM..DSL

 1
37140A - BOLT (F0R FRONT PROPELLER SHAFT)
90105-10085

KDY270,280,290,RZY281

 4
90105-10085

LY270,280,290..DSL

 4
37140B - NUT (F0R FRONT PROPELLER SHAFT)
90179-10059

LY270,280,290..DSL

 4
90179-10059

KDY270,280,290,RZY281

 4
37140C - WASHER (F0R FRONT PROPELLER SHAFT)
90204-10002

LY270,280,290..DSL

 4
90204-10002

KDY270,280,290,RZY281

 4
