LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )KDY23#,LY230,RZY230,TRY230..MTM..12T,15T,175T ; (0107- )KDY23#,LY230,

Click highlighted areas on diagram

R451,R452,R453

diagram 33103 33103R 33124F 33124G 9011910186 9011910337 91611B0816
Part # Description Qty Price

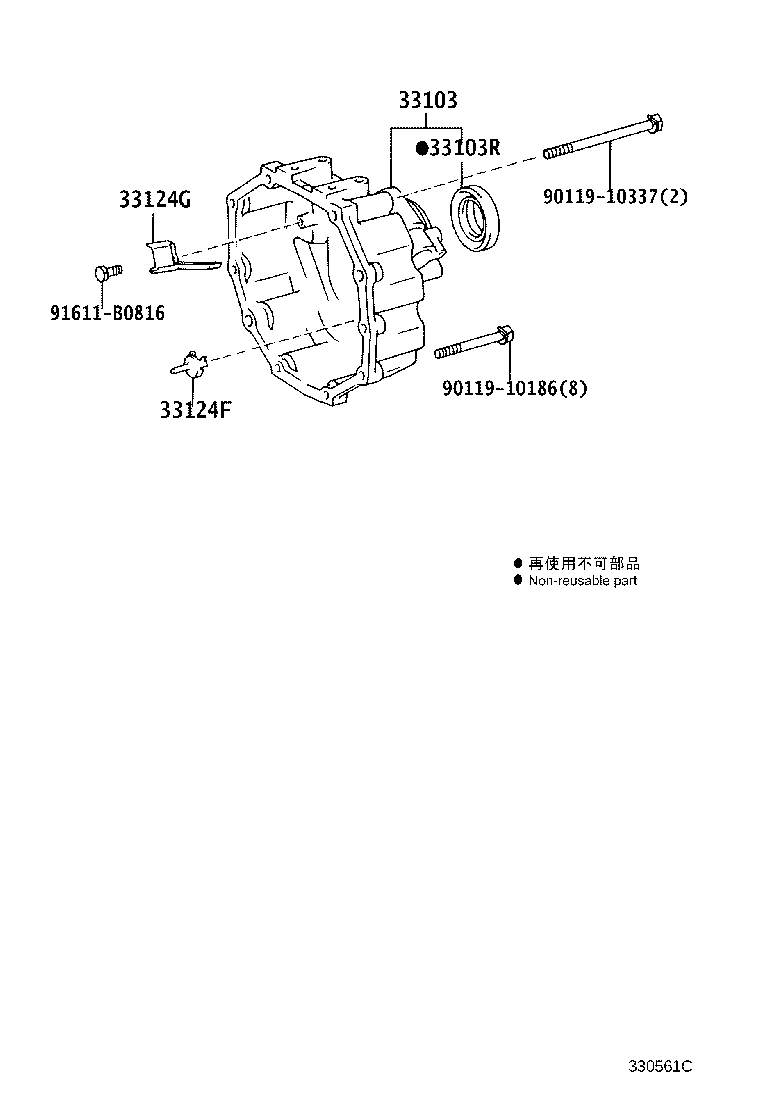

33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-35100

LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM

 1
33124-35100

LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM

 1
Common parts
90119-10186
90119-10337
91611-B0816

(0107- )KDY27#,28#,290,LY270,280,290,RZY281,TRY281..MTM

Click highlighted areas on diagram

R351F,R352F

diagram 33124F 36117E 36117H 36117J 9011910186
Part # Description Qty Price

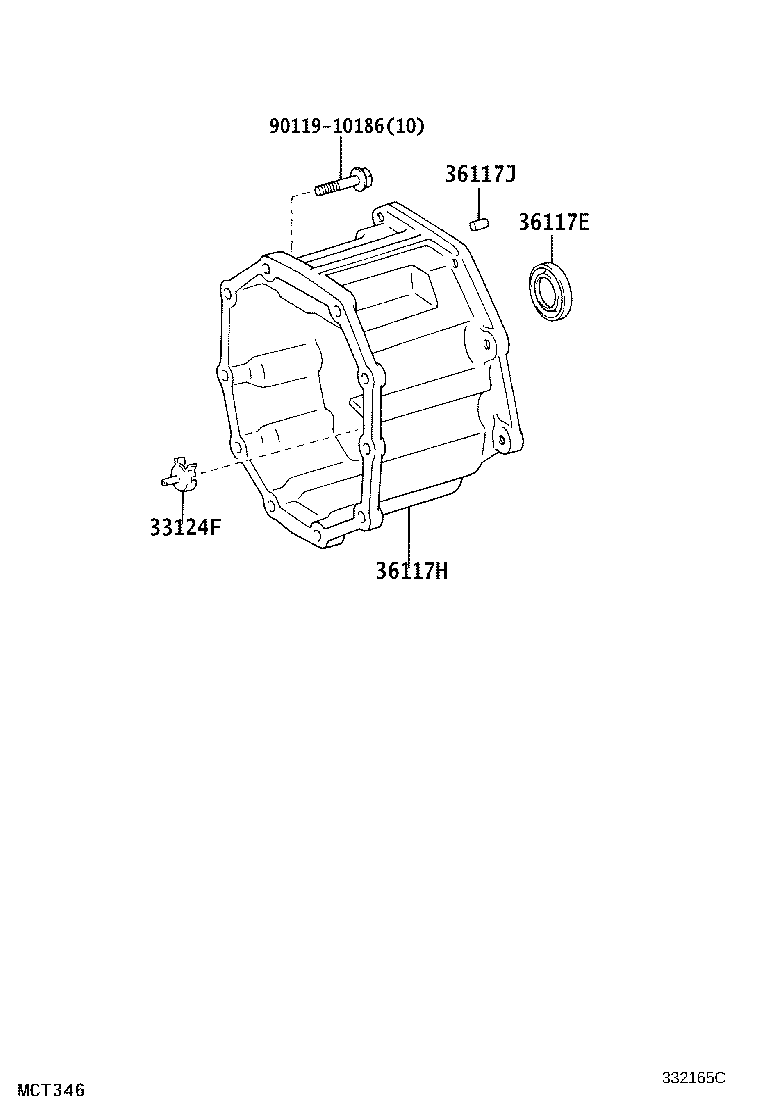

33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-35100

LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM

 1
36117E - SEAL, OIL(FOR TRANSFER ADAPTER)
90310-40004

LY280..MTM..DSL;KDY27#,28#,290,LY270,290,RZY281,TRY281..MTM

 1
36117H - ADAPTER SUB-ASSY, TRANSFER
36107-26030

LY280..MTM..DSL;KDY270,280,290,LY270,290,RZY281..MTM

 1
36117J - PIN, STRAIGHT
90250-10214

LY280..MTM..DSL;KDY27#,28#,290,LY270,290,RZY281,TRY281..MTM

 2
Common parts
90119-10186
