LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )KDY27#,28#,290,LY270,280,290,RZY281,TRY281..MTM

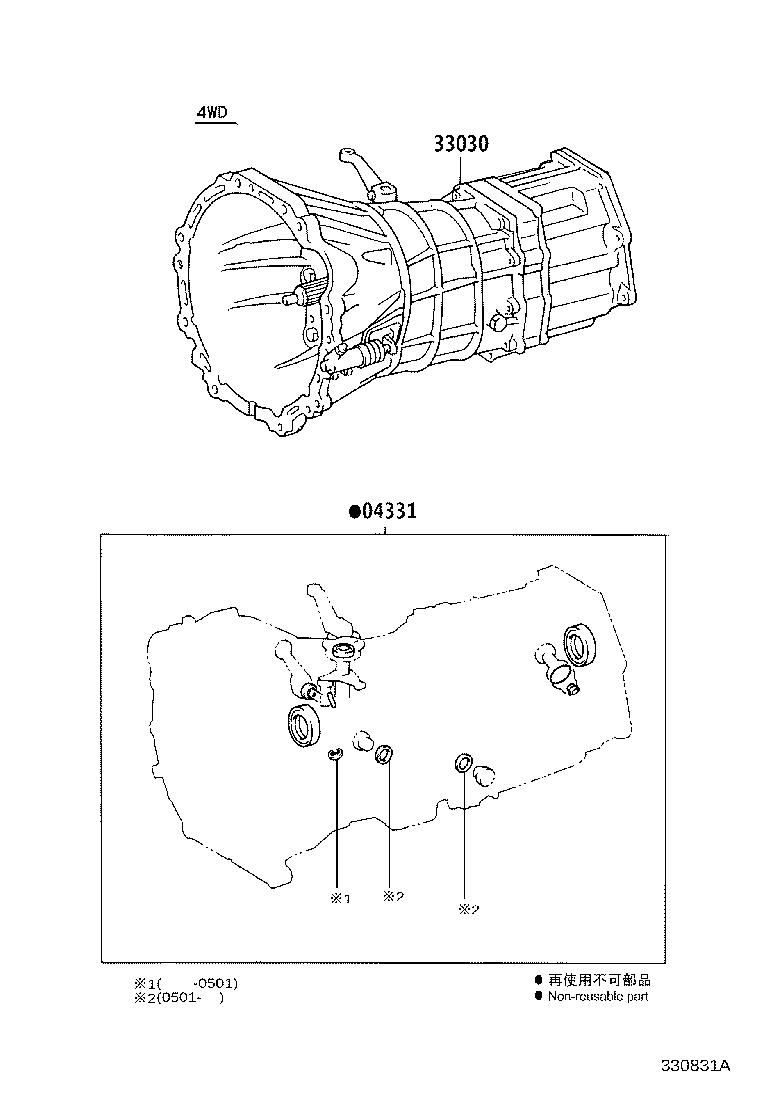

Click highlighted areas on diagram

R351F,R352F

diagram 04331 33030
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-25030

LY270,280..MTM;LY220,240,290,RZY220..WT;LY230,RZY230..MTM..(12T,15T,175T);LY230,RZY230..(TW1,TW2,TW4)..MTM..125T

 1
33030 - TRANSMISSION UNIT ASSY, MANUAL
33030-25240

LY270,280,290..MTM..DSL

R352F

 1
