LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-1610)MTM

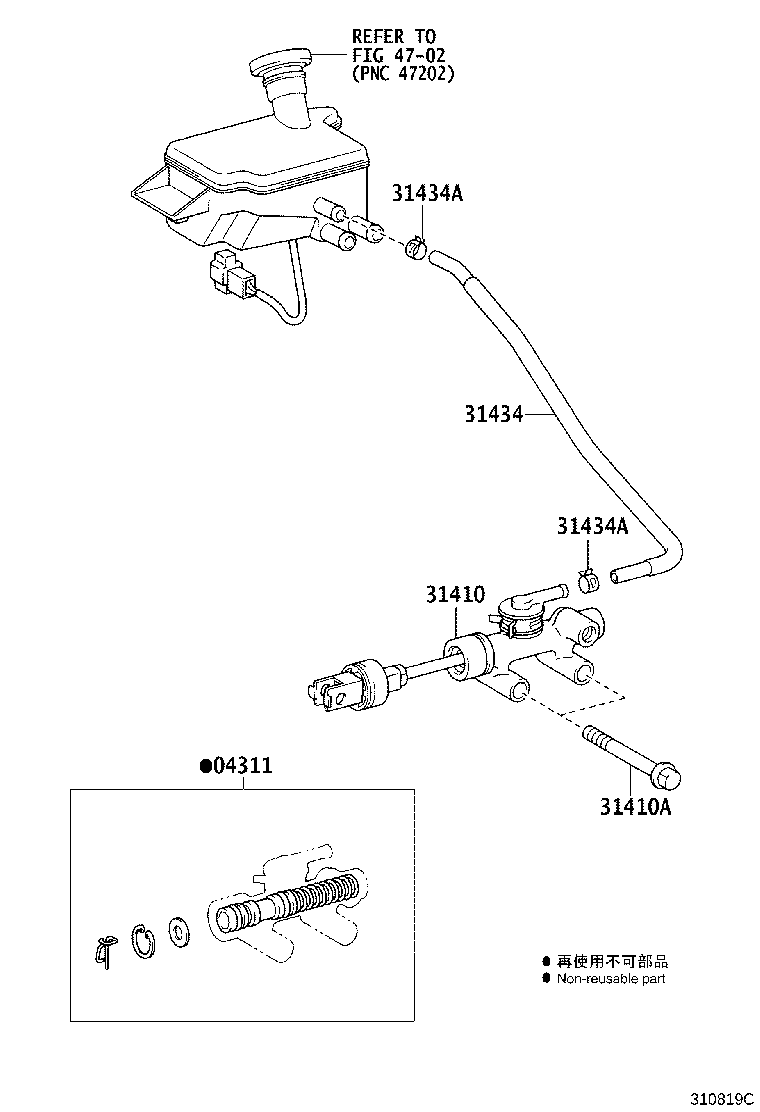

Click highlighted areas on diagram

diagram 04311 31410 31410A 31434 31434A 31434A 4702
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-25020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-25040

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
91611-60865

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

 2
31434 - TUBE, CLUTCH RESERVOIR
31434-25060

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
90467-16003

LY220,230,240,270,280,290,RZY220,230..MTM

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
90467-16003

LY220,230,240,270,280,290,RZY220,230..MTM

 2
Linked diagrams
4702
