Toyota Dyna/toyoace LY280 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
LY280-TGMFS3 (2001)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004

Engine 5L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0107-1008)MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31310-25030	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..MTM	07/2001 - 01/2005	1
31301 - PEDAL SUB-ASSY, CLUTCH
31310-25030	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..MTM	07/2001 - 01/2005	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-60800	KDY221..T3..TB..MTM;KDY231,TRY230..TS..MTM..125T..WT;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..MTM	07/2001 - 12/2999	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-60800	KDY221..T3..TB..MTM;KDY231,TRY230..TS..MTM..125T..WT;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..MTM	07/2001 - 12/2999	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-60800	KDY221..T3..TB..MTM;KDY231,TRY230..TS..MTM..125T..WT;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..MTM	07/2001 - 12/2999	1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017	LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03108	LY230,280..MTM..DSL;LY220,240,270,290,RZY220,230,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31321 - PAD, CLUTCH PEDAL
31321-14020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 03/2017	1
31323 - BRACKET, CLUTCH PEDAL
55107-25030	KDY220,230,240,270,280,290,RZY231,281..MTM	07/2001 - 08/2007	1
55107-25030	LY220..15T,1T;LY220..MTM..125T..ST;LY230..T2..TB..MTM..15T;LY230..(T2,TW3)..TS..MTM;LY240,270,280,290..MTM..DSL;LY230..(T3,T4,TW2,TW4)..MTM..DSL	07/2001 - 08/2004	1
31324 - SHAFT, CLUTCH PEDAL
91112-61070	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-14010	LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM 長さ=23.5	07/2001 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 12/2999	1
Common parts
90468-16032
91611-B0816
94130-61000
94531-01000
96160-00600

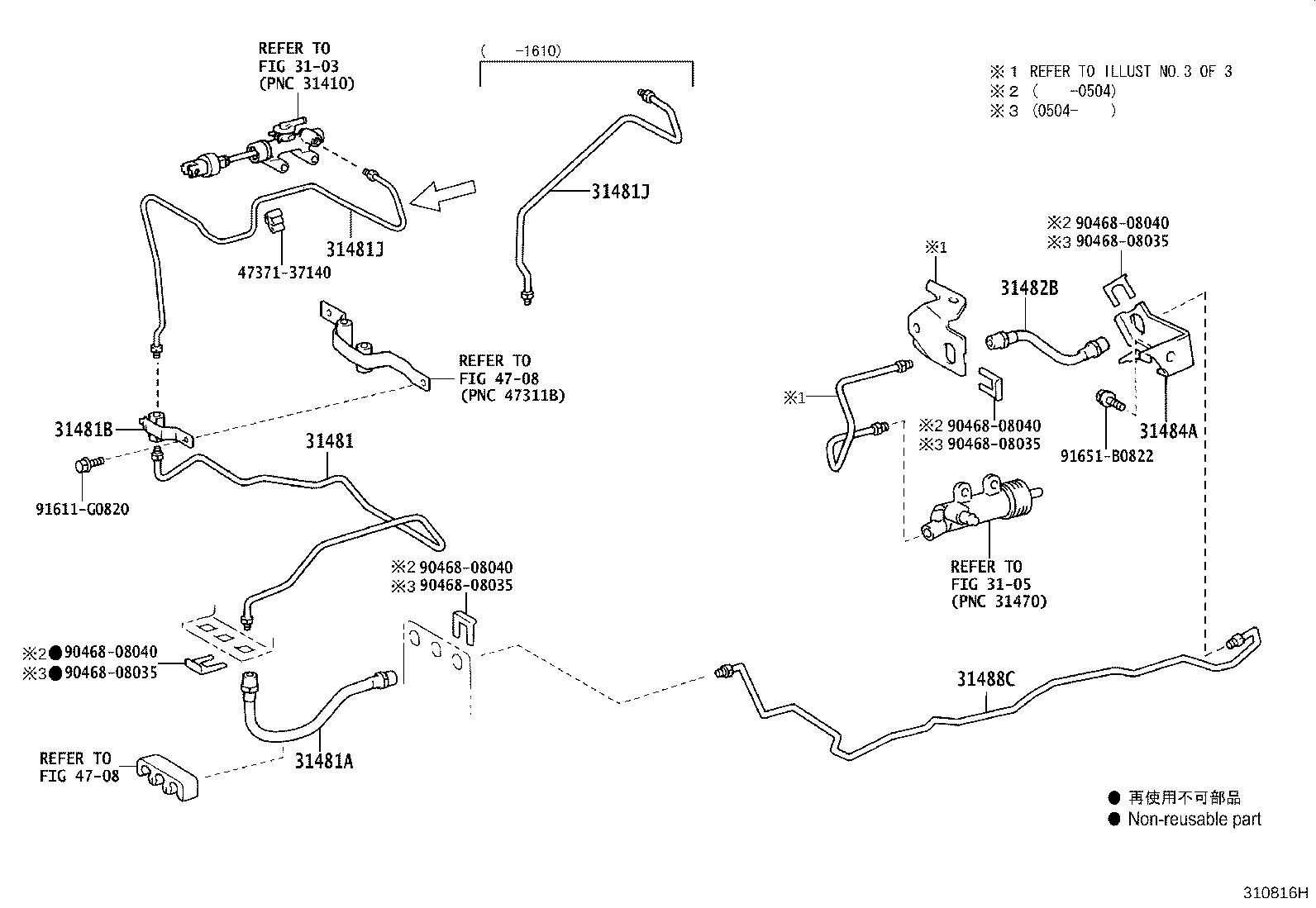

ILLUST NO. 2 OF 3(0107- )MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-25240	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31481A - HOSE, CLUTCH, NO.1
90931-01147	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 12/2999	1
31481B - WAY(FOR CLUTCH TUBE)
31495-37010	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 12/2999	1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-25220	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-25220	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31482B - HOSE, CLUTCH, NO.2
90947-02C63	RZY220..WT;RZY230..15T;RZY230..TW1,TW2,TW4;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281..MTM	07/2001 - 12/2999	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-25100	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 12/2999	1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31488-25020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 12/2999	1
Common parts
47371-37140
90468-08035
90468-08040
91611-G0820
91651-B0822
Linked diagrams
3103
3105
4708

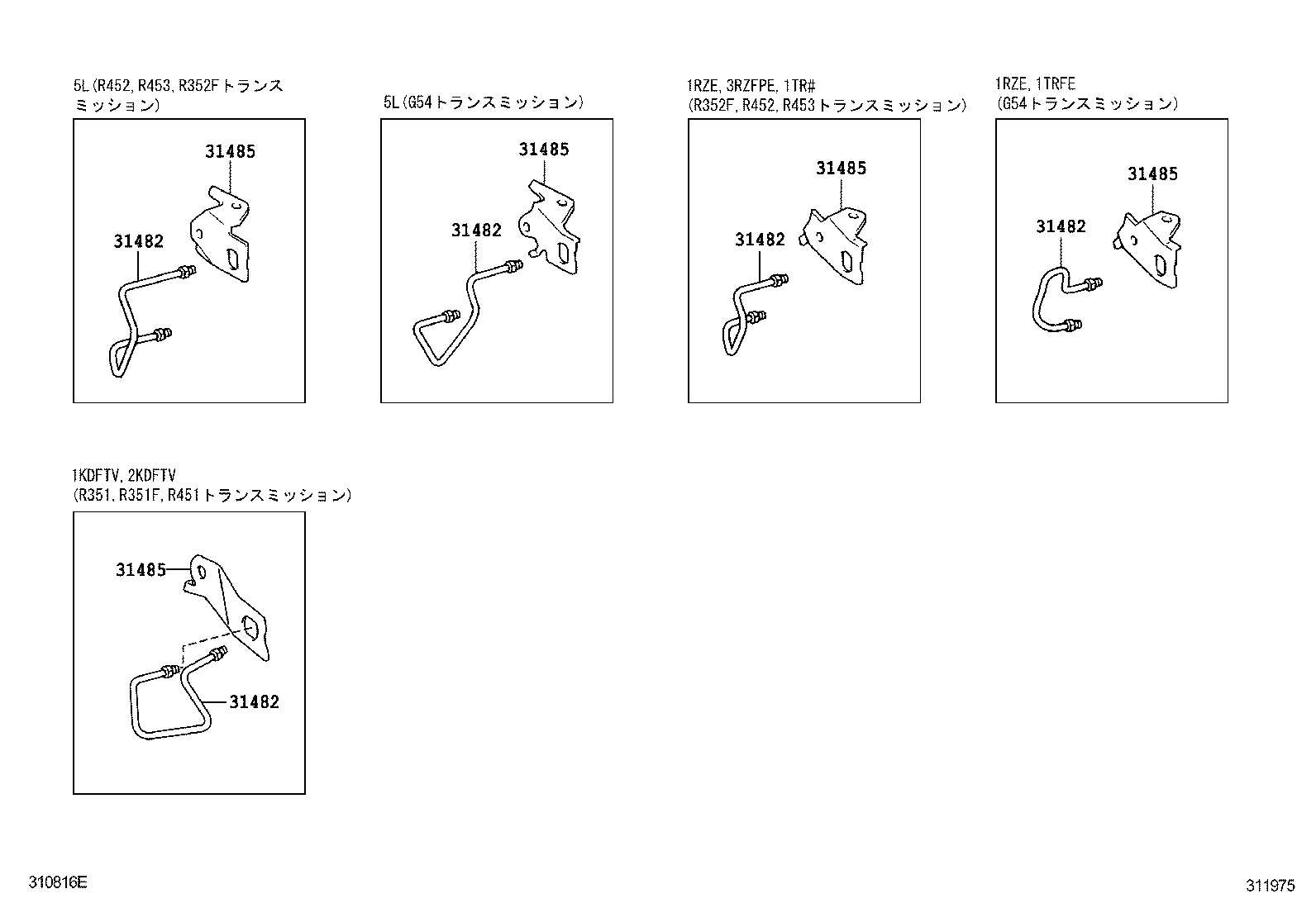

ILLUST NO. 3 OF 3(0107- )MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25180	LY220,240,290..WT;LY270,280..MTM..DSL;LY230..(TW1,TW4)..MTM;LY230..MTM..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25180	LY220,240,290..WT;LY270,280..MTM..DSL;LY230..(TW1,TW4)..MTM;LY230..MTM..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25180	LY220,240,290..WT;LY270,280..MTM..DSL;LY230..(TW1,TW4)..MTM;LY230..MTM..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25180	LY220,240,290..WT;LY270,280..MTM..DSL;LY230..(TW1,TW4)..MTM;LY230..MTM..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25180	LY220,240,290..WT;LY270,280..MTM..DSL;LY230..(TW1,TW4)..MTM;LY230..MTM..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-25150	LY220,240,290..WT;LY270,280..MTM..DSL;LY230..(TW1,TW4)..MTM;LY230..MTM..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-25150	LY220,240,290..WT;LY270,280..MTM..DSL;LY230..(TW1,TW4)..MTM;LY230..MTM..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-25150	LY220,240,290..WT;LY270,280..MTM..DSL;LY230..(TW1,TW4)..MTM;LY230..MTM..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-25150	LY220,240,290..WT;LY270,280..MTM..DSL;LY230..(TW1,TW4)..MTM;LY230..MTM..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-25150	LY220,240,290..WT;LY270,280..MTM..DSL;LY230..(TW1,TW4)..MTM;LY230..MTM..(12T,15T,175T)..DSL	07/2001 - 08/2004	1

LY280-TGMFS3 (2001)

ILLUST NO. 1 OF 3(0107-1008)MTM

ILLUST NO. 2 OF 3(0107- )MTM

ILLUST NO. 3 OF 3(0107- )MTM
