LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

Click highlighted areas on diagram

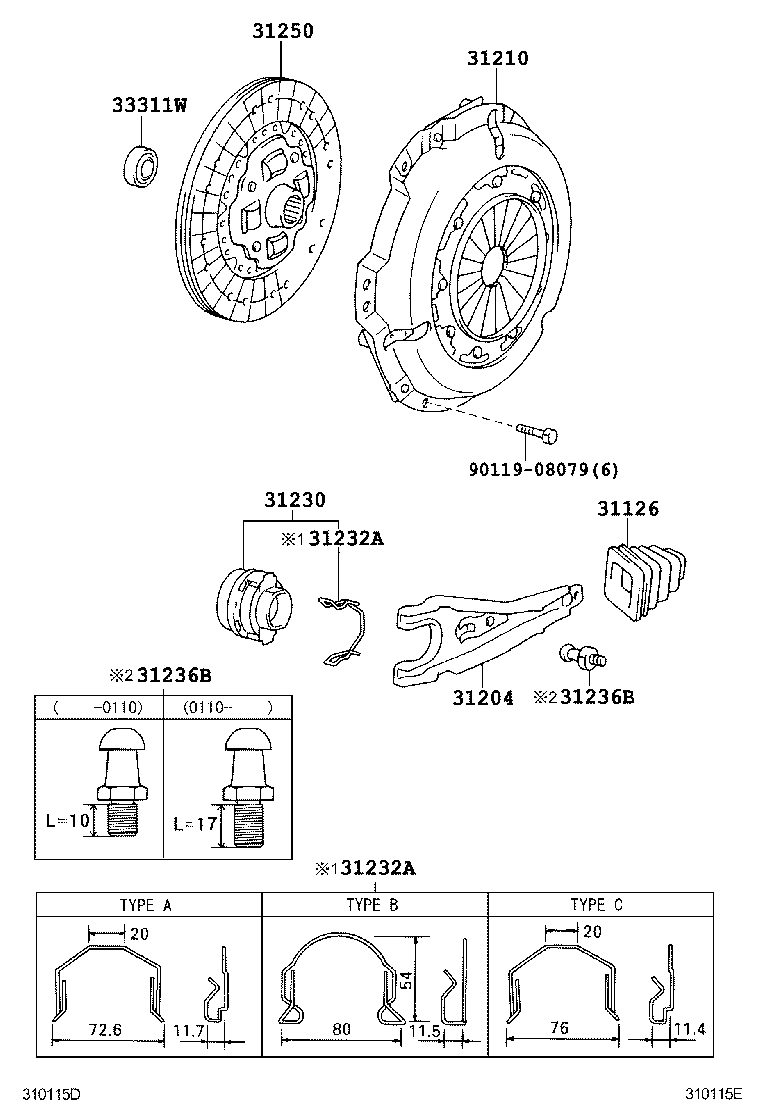

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31236B 31250 33311W 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-34010

LY220,240,290..WT;LY270,280..MTM..DSL;LY230..(TW1,TW4)..MTM;LY230..MTM..(12T,15T,175T)..DSL

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35031

LY270,280..MTM..DSL;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY220,240,290,RZY220,231,281,TRY220,231,281..MTM..WT

 1
31210 - COVER ASSY, CLUTCH
31210-35122

LY220,230,240,270,280,290..MTM..DSL

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35061

LY220,230,240,270,280,290..MTM..DSL

 1
31230-35060

LY220,230,240,270,280,290..MTM..DSL

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

LY230,280..MTM..DSL;TRY230..T2..TS..MTM;TRY230..T2..TB..MTM..WT;TRY230..(T3,T4,TW2,TW3)..MTM;LY220,240,270,290,RZY220,230,281,TRY220,231,281..MTM

TYPE A:ｲﾗｽﾄ参照

 1
31232-35030

LY220,230,240,270,280,290..MTM..DSL

TYPE B:ｲﾗｽﾄ参照

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

LY230,280..MTM..DSL;TRY230..T2..TS..MTM;TRY230..T2..TB..MTM..WT;TRY230..(T3,T4,TW2,TW3)..MTM;LY220,240,270,290,RZY220,230,281,TRY220,231,281..MTM

TYPE A:ｲﾗｽﾄ参照

 1
31232-35030

LY220,230,240,270,280,290..MTM..DSL

TYPE B:ｲﾗｽﾄ参照

 1
31236B - SUPPORT, RELEASE FORK
31236-35030

LY270,280..MTM..DSL;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY220,240,290,RZY220,231,281,TRY220,231,281..MTM..WT

 1
31236B - SUPPORT, RELEASE FORK
31236-35030

LY270,280..MTM..DSL;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY220,240,290,RZY220,231,281,TRY220,231,281..MTM..WT

 1
31250 - DISC ASSY, CLUTCH
31250-25143

LY220,230,240,270,280,290..MTM..DSL

 1
31250-25144

LY220,230,240,270,280,290..MTM..DSL

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..MTM..(DCR,DSL)

 1
Common parts
90119-08079
