LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0408)5L

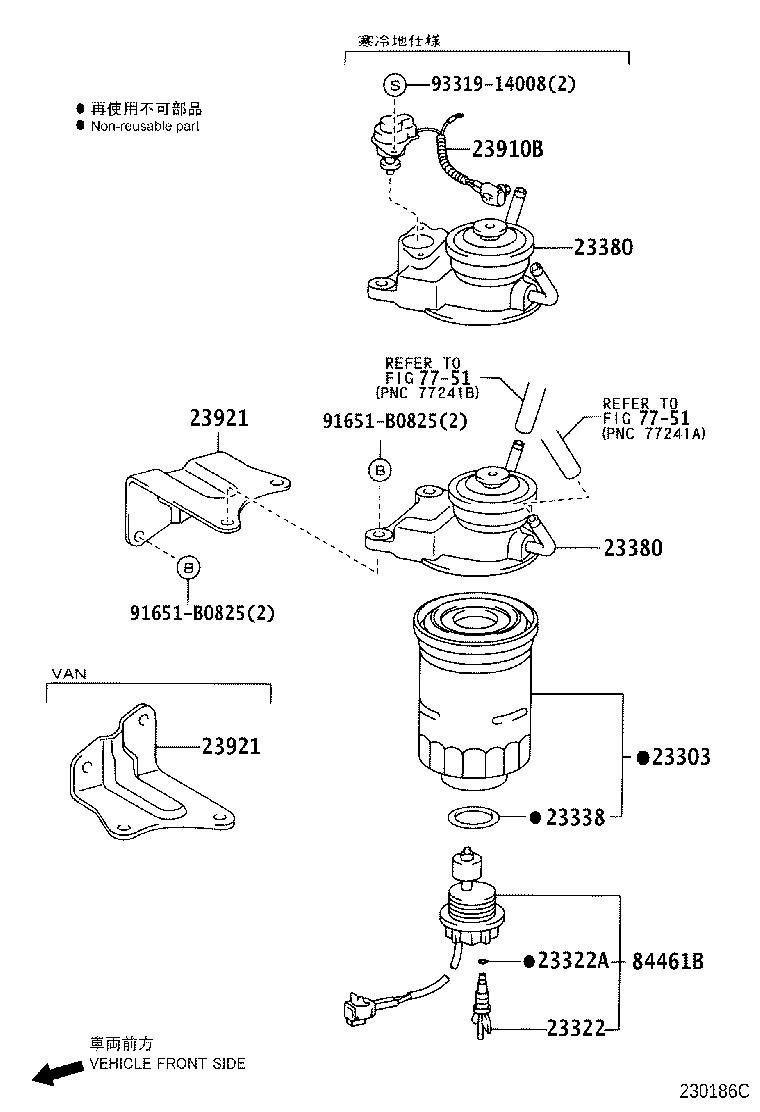

Click highlighted areas on diagram

diagram 23303 23322 23322A 23338 23380 23380 23910B 23921 23921 7751 7751 84461B 91651B0825 91651B0825 9331914008
Part # Description Qty Price
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-64480

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

5L..LY220,230,240,270,280,290

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

5L..LY220,230,240,270,280,290

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 1
23380 - CAP ASSY, FUEL FILTER
23380-5B240

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 1
23380-5B250

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23380 - CAP ASSY, FUEL FILTER
23380-5B240

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 1
23380-5B250

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23910B - HEATER ASSY, FUEL
23910-54120

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 1
23921 - SUPPORT, FUEL FILTER
23921-54510

5L..LY220,230,270,280

 1
23921 - SUPPORT, FUEL FILTER
23921-54510

5L..LY220,230,270,280

 1
84461B - SWITCH, LEVEL WARNING
84461-28040

LY220,230,240,270,280,290..DSL

 1
Common parts
91651-B0825
93319-14008
Linked diagrams
7751
