LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0408)5L..LY220,230,270,280

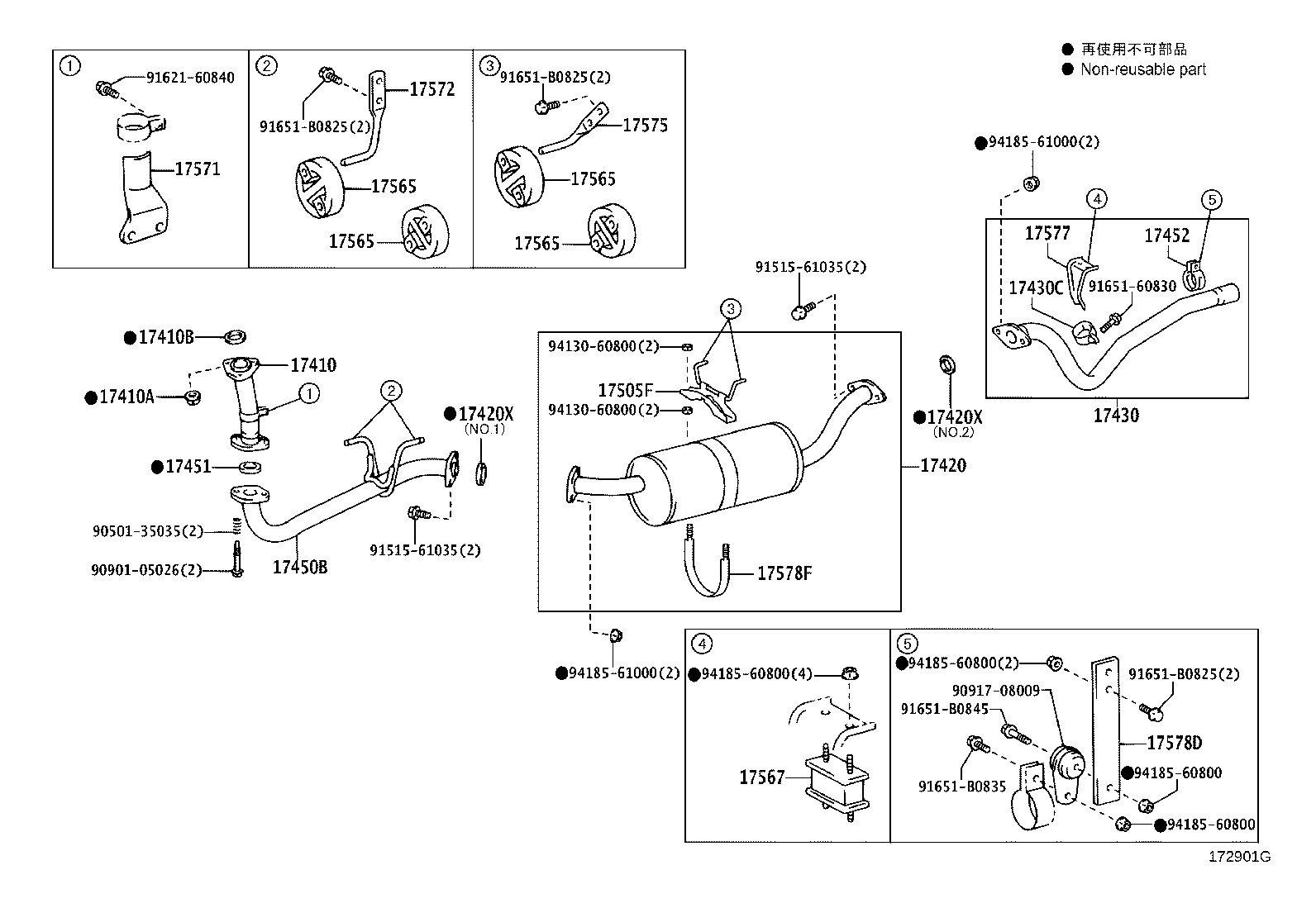

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420X 17420X 17430 17430C 17450B 17451 17452 17505F 17565 17565 17565 17565 17567 17571 17572 17575 17577 17578D 17578F 9050135035 9090105026 9091708009 9151561035 9151561035 9162160840 9165160830 91651B0825 91651B0825 91651B0825 91651B0835 91651B0845 9413060800 9413060800 9418560800 9418560800 9418560800 9418560800 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-5B400

5L..LY220,230,240,270,280,290

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 3
17410B - GASKET, EXHAUST PIPE
90917-06066

5L..LY220,230,240,270,280,290

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-54190

5L..LY220,230,240,270,280,290

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06078

5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

NO.2

 1
90917-06045

5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

NO.1

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06078

5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

NO.2

 1
90917-06045

5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

NO.1

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-5D240

5L..LY220,230,270,280

 1
17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT)
90461-32007

2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17450B - PIPE ASSY, EXHAUST, FRONT NO.2
17450-54040

5L..LY230..175T;5L..LY230..TS..WT;5L..LY230..MTM..15T..ST;5L..LY280..MTM..(125T,15T)..ST

 1
17451 - GASKET, EXHAUST PIPE
17451-16030

5L,1RZE,3RZFPE..LY220,230,240,270,280,290,RZY220,230

 1
17452 - CLAMP, EXHAUST PIPE
17452-54011

2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17505F - SUPPORT SUB-ASSY, EXHAUST PIPE
17505-54240

2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290

2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290

2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290

2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290

2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 4
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-35010

1KDFTV,2KDFTV..KDY22#;1KDFTV,2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-54570

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-54270

2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-71050

1KDFTV,2KDFTV,5L,1RZE,3RZFPE..KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-54050

2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-54020

1KDFTV,2KDFTV..KDY22#;1KDFTV,2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17578F - CLAMP, PIPE(FOR CENTER PIPE)
17578-54030

2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
Common parts
90501-35035
90901-05026
90917-08009
91515-61035
91621-60840
91651-60830
91651-B0825
91651-B0835
91651-B0845
94130-60800
94185-60800
94185-61000
