LY280-TGMFS3 (2001)
Toyota Dyna/Toyoace

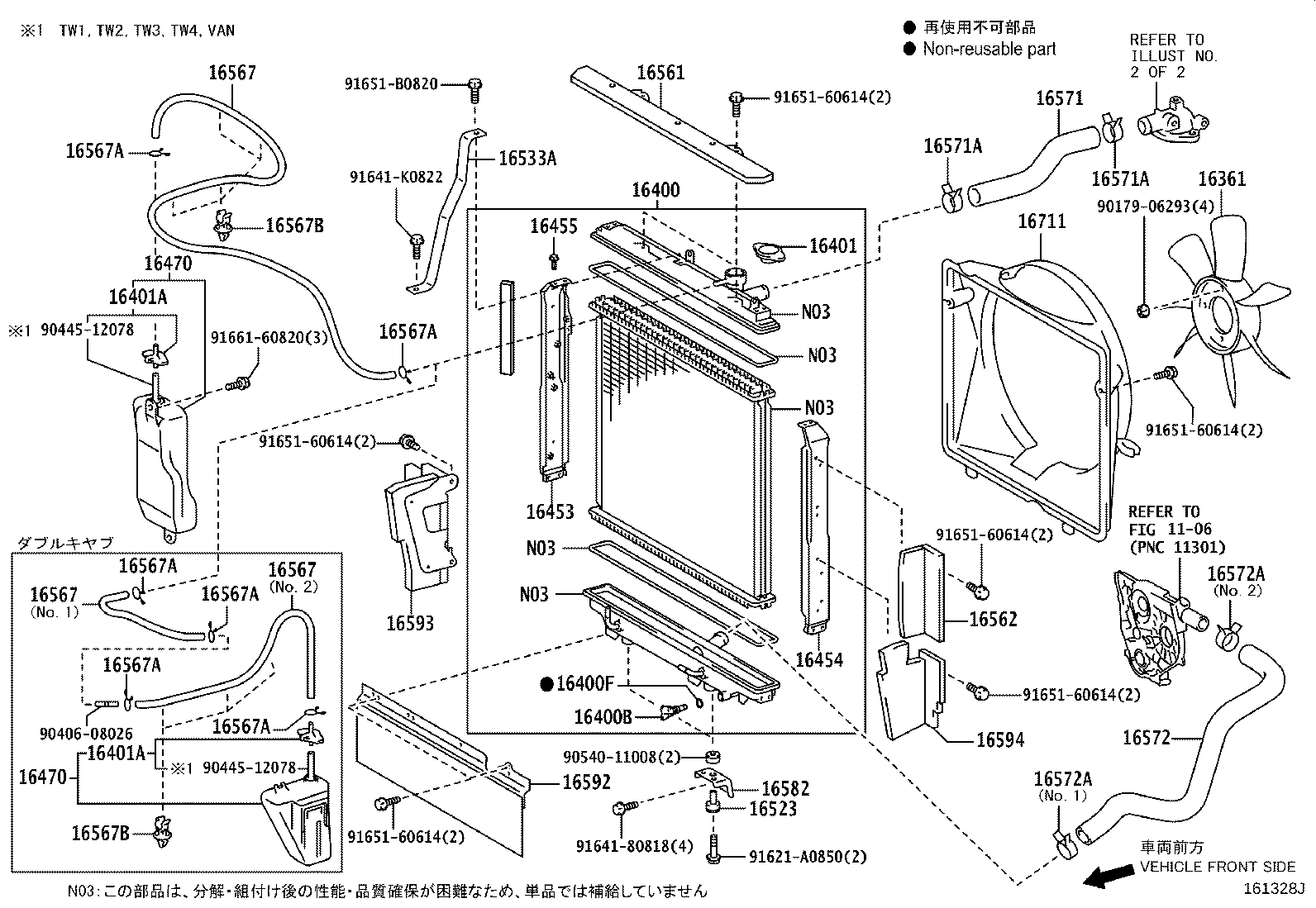

ILLUST NO. 1 OF 2(0107-0408)5L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-67030 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-5B860 |
5L..LY220,230,240,270,280,290..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-67150 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16405-54360 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16405-54360 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-5B860 |
5L..LY220,230,240,270,280,290..MTM |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-5B860 |
5L..LY220,230,240,270,280,290..MTM |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
5L,3RZFPE..LY220,230,240,270,280,290 |
8 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54410 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54410 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 |
1 | ||
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 16523-54050 |
5L,3RZFPE..LY220,230,240,270,280,290 |
2 | ||
| 16533A - SUPPORT, SUB-RADIATOR | ||||
| 16533-54050 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-54040 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-54010 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54160 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54160 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54160 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 ｼﾝｸﾞﾙ ｷﾔﾌﾞ |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 ｼﾝｸﾞﾙ ｷﾔﾌﾞ |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 ｼﾝｸﾞﾙ ｷﾔﾌﾞ |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 ｼﾝｸﾞﾙ ｷﾔﾌﾞ |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 ｼﾝｸﾞﾙ ｷﾔﾌﾞ |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 ｼﾝｸﾞﾙ ｷﾔﾌﾞ |
2 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90469-12009 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 |
4 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90469-12009 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 |
4 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54580 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54670 |
5L..LY220,230,240,270,280,290 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41005 |
5L..LY220,230,240,270,280,290 NO.2 |
1 | ||
| 90467-37005 |
5L..LY220,230,240,270,280,290 NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41005 |
5L..LY220,230,240,270,280,290 NO.2 |
1 | ||
| 90467-37005 |
5L..LY220,230,240,270,280,290 NO.1 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-54050 |
5L,3RZFPE..LY220,230,240,270,280,290 |
2 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-54090 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-54110 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54120 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-54750 |
5L..LY220,230,240,270,280,290 |
1 | ||
| Common parts | ||||
| 90179-06293 | ||||
| 90406-08026 | ||||
| 90445-12078 | ||||
| 90540-11008 | ||||
| 91621-A0850 | ||||
| 91641-80818 | ||||
| 91641-K0822 | ||||
| 91651-60614 | ||||
| 91651-B0820 | ||||
| 91661-60820 | ||||
| Linked diagrams | ||||
| 1106 | ||||

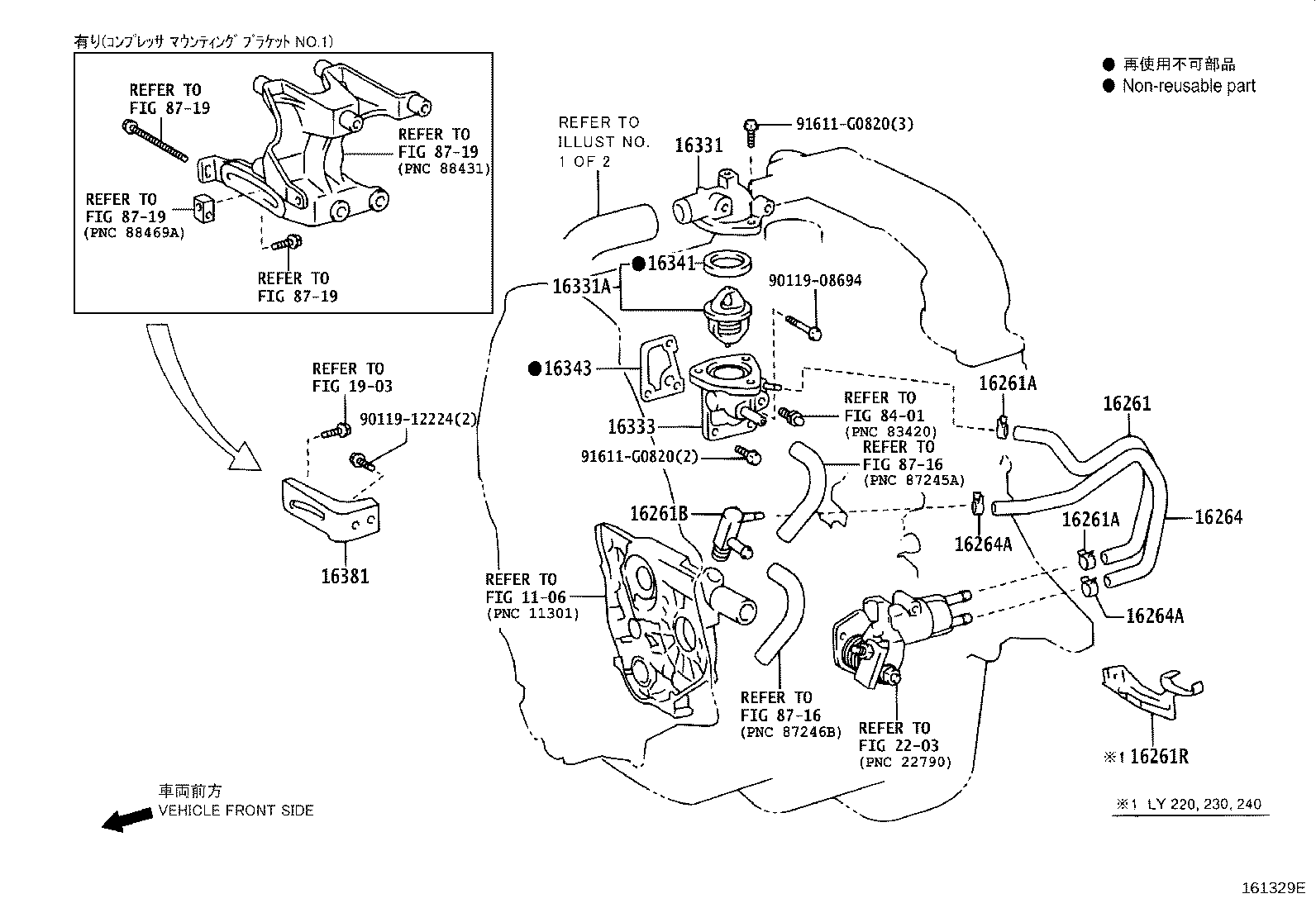

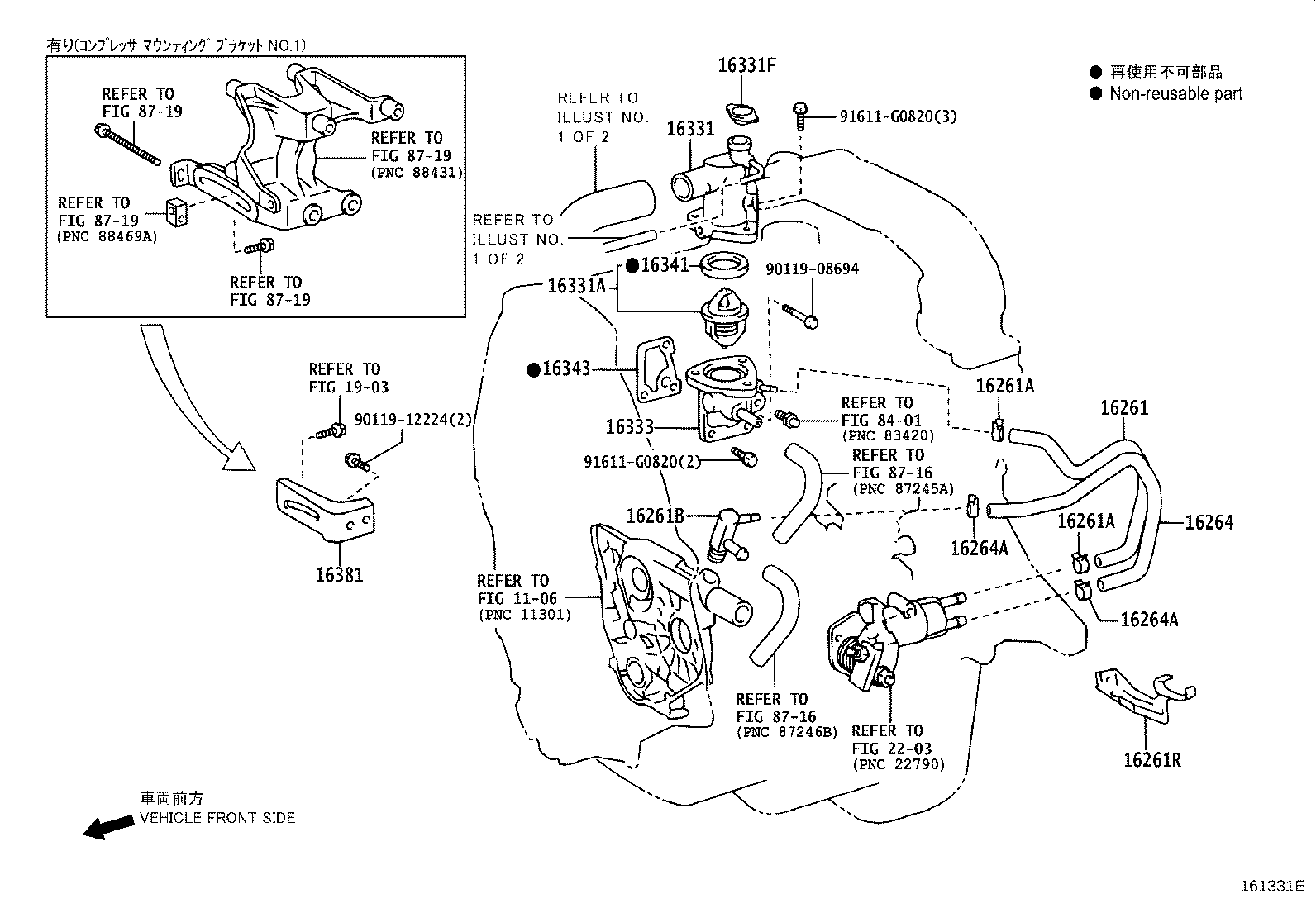

ILLUST NO. 2 OF 2(0107-0408)5L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54121 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54037 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54121 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54202 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-54010 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54113 |
5L..LY220..15T,1T;5L..LY220..MTM..125T..ST;5L..LY240,270,280,290..MTM;5L..LY230..T2..TB..MTM..15T;5L..LY230..(T2,TW3)..TS..MTM;5L..LY230..(T3,T4,TW2,TW4)..MTM |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) (J) |
1 | ||
| 16341-05020 |
5L..LY280..(T3,T4)..MTM..CBU;5L..LY230..MTM..(125T,12T)..IV3;5L..LY280,290..(T2,TW1,TW3,TW4,VAN)..MTM;5L..LY220,230,240,270..(06S,TB,TS)..MTM..CBU;5L..LY220,230,270..(T2,TW1)..MTM..(12T,15T,1T)..ST..IV3 (L) |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54040 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54121 |
5L..LY220..ATM;5L..LY220..125T..WT;5L..LY280..(T3,T4)..ATM;5L..LY230..ATM..15T..IV3;5L..LY280..T2,TW1,TW3,TW4;5L..LY230..(125T,12T)..IV3;5L..LY230,270,290..CBU,IV6;5L..LY280..(T3,T4)..MTM..CBU;5L..LY220..MTM..125T..ST..CBU;5L..LY220,240..(06S,TB,TS)..(15T,1T)..CBU;5L..LY220,230,270..(T2,TW1)..MTM..(12T,15T,1T)..ST..IV3 |
1 | ||
| Common parts | ||||
| 90119-08694 | ||||
| 90119-12224 | ||||
| 91611-G0820 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1903 | ||||
| 2203 | ||||
| 8401 | ||||
| 8716 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(0107-0408)5L
ﾚｲﾄｳｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-67030 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-5B860 |
5L..LY220,230,240,270,280,290..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16405-54360 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-5B860 |
5L..LY220,230,240,270,280,290..MTM |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-5B860 |
5L..LY220,230,240,270,280,290..MTM |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
5L,3RZFPE..LY220,230,240,270,280,290 |
8 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54410 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 |
1 | ||
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 16523-54050 |
5L,3RZFPE..LY220,230,240,270,280,290 |
2 | ||
| 16533A - SUPPORT, SUB-RADIATOR | ||||
| 16533-54050 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-54040 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-54010 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54160 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 ｼﾝｸﾞﾙ ｷﾔﾌﾞ |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 ｼﾝｸﾞﾙ ｷﾔﾌﾞ |
2 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90469-12009 |
5L,3RZFPE..LY220,230,270,280..T2,T3,T4 |
4 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54580 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54670 |
5L..LY220,230,240,270,280,290 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41005 |
5L..LY220,230,240,270,280,290 NO.2 |
1 | ||
| 90467-37005 |
5L..LY220,230,240,270,280,290 NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41005 |
5L..LY220,230,240,270,280,290 NO.2 |
1 | ||
| 90467-37005 |
5L..LY220,230,240,270,280,290 NO.1 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-54050 |
5L,3RZFPE..LY220,230,240,270,280,290 |
2 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-54090 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-54110 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54120 |
5L,3RZFPE..LY220,230,240,270,280,290 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-54750 |
5L..LY220,230,240,270,280,290 |
1 | ||
| Common parts | ||||
| 90179-06293 | ||||
| 90464-00840 | ||||
| 90540-11008 | ||||
| 91621-A0850 | ||||
| 91641-80818 | ||||
| 91641-K0822 | ||||
| 91651-60614 | ||||
| 91651-B0820 | ||||
| 91661-60820 | ||||
| Linked diagrams | ||||
| 1106 | ||||
ILLUST NO. 2 OF 2(0107-0408)5L
ﾚｲﾄｳｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54121 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54037 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54121 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54202 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-54010 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54113 |
5L..LY220..15T,1T;5L..LY220..MTM..125T..ST;5L..LY240,270,280,290..MTM;5L..LY230..T2..TB..MTM..15T;5L..LY230..(T2,TW3)..TS..MTM;5L..LY230..(T3,T4,TW2,TW4)..MTM |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) (J) |
1 | ||
| 16341-05020 |
5L..LY280..(T3,T4)..MTM..CBU;5L..LY230..MTM..(125T,12T)..IV3;5L..LY280,290..(T2,TW1,TW3,TW4,VAN)..MTM;5L..LY220,230,240,270..(06S,TB,TS)..MTM..CBU;5L..LY220,230,270..(T2,TW1)..MTM..(12T,15T,1T)..ST..IV3 (L) |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54040 |
5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T) |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54121 |
5L..LY220..ATM;5L..LY220..125T..WT;5L..LY280..(T3,T4)..ATM;5L..LY230..ATM..15T..IV3;5L..LY280..T2,TW1,TW3,TW4;5L..LY230..(125T,12T)..IV3;5L..LY230,270,290..CBU,IV6;5L..LY280..(T3,T4)..MTM..CBU;5L..LY220..MTM..125T..ST..CBU;5L..LY220,240..(06S,TB,TS)..(15T,1T)..CBU;5L..LY220,230,270..(T2,TW1)..MTM..(12T,15T,1T)..ST..IV3 |
1 | ||
| Common parts | ||||
| 90119-08694 | ||||
| 90119-12224 | ||||
| 91611-G0820 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1903 | ||||
| 2203 | ||||
| 8401 | ||||
| 8716 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
