LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0408)5L

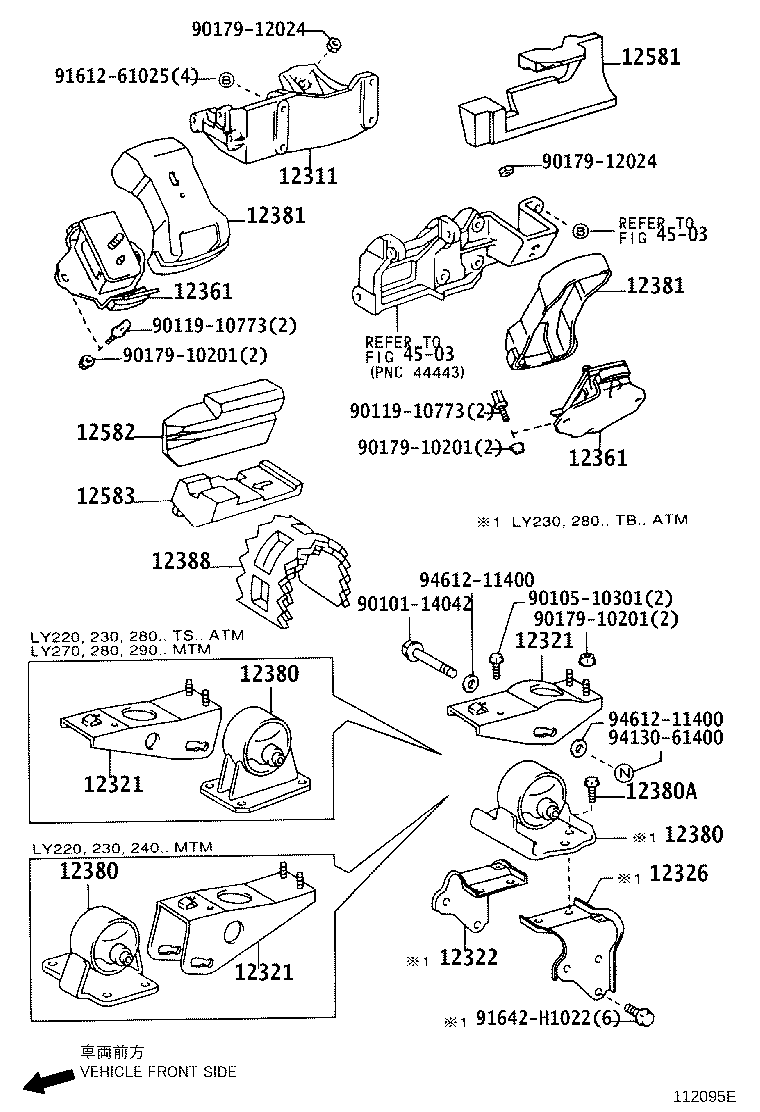

Click highlighted areas on diagram

diagram 12311 12321 12321 12321 12322 12326 12361 12361 12380 12380 12380 12380A 12381 12381 12388 12581 12582 12583 4503 4503 9010114042 9010510301 9011910773 9011910773 9017910201 9017910201 9017910201 9017912024 9017912024 9161261025 91642H1022 9413061400 9461211400 9461211400
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54181

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-54120

3RZFPE..LY280..MTM;5L..LY270,280,290..MTM;5L..LY220,230,280..TS..ATM

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-54120

3RZFPE..LY280..MTM;5L..LY270,280,290..MTM;5L..LY220,230,280..TS..ATM

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-54120

3RZFPE..LY280..MTM;5L..LY270,280,290..MTM;5L..LY220,230,280..TS..ATM

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54241

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 2
12361-54240

5L..LY220,230,240,270,280,290

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54241

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 2
12361-54240

5L..LY220,230,240,270,280,290

 2
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-54060

5L,3RZFPE..LY270,280,290..MTM

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-54060

5L,3RZFPE..LY270,280,290..MTM

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-54060

5L,3RZFPE..LY270,280,290..MTM

 1
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90105-08157

5L..LY290;5L..LY220,270..ST;5L..LY280..TS..ATM;5L,3RZFPE..LY280..MTM;5L..LY230..(T2,T3,TW3)..(125T,1T)

 4
12381 - STABILIZER, ENGINE MOUNTING
12381-54050

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54050

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 2
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-67011

5L,3RZFPE..LY220,230,240,270,280,290

 1
12581 - INSULATOR, CYLINDER BLOCK, NO.1
12581-54010

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 1
12582 - INSULATOR, CYLINDER BLOCK, NO.2
12582-54021

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 1
12583 - INSULATOR, CYLINDER BLOCK, NO.3
12583-54030

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 1
Common parts
90101-14042
90105-10301
90119-10773
90179-10201
90179-12024
91612-61025
91642-H1022
94130-61400
94612-11400
Linked diagrams
4503
