LY280-TGMFS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )5L

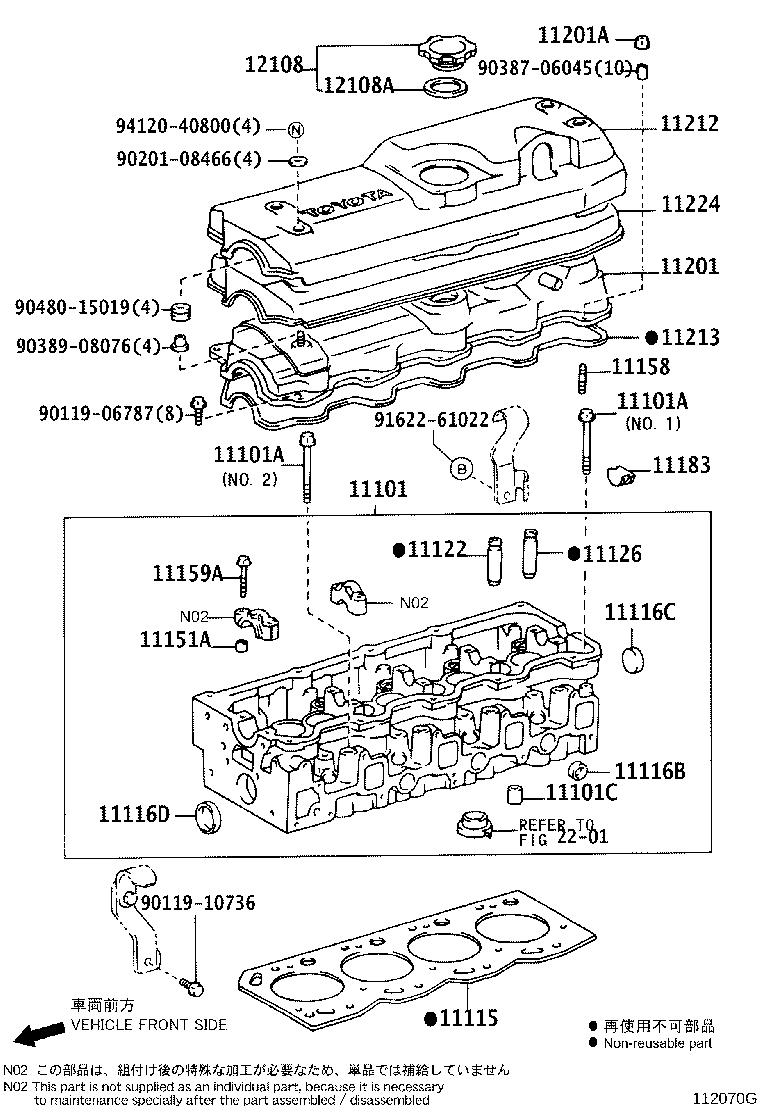

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101C 11115 11116B 11116C 11116D 11122 11126 11151A 11158 11159A 11183 11201 11201A 11212 11213 11224 12108 12108A 2201 9011906787 9011910736 9020108466 9038706045 9038908076 9048015019 9162261022 9412040800
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-54150

5L..LY220,230,240,270,280,290

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02080

5L..LY220,230,240,270,280,290

NO.1

 14
90910-02081

5L..LY220,230,240,270,280,290

NO.2

 4
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02080

5L..LY220,230,240,270,280,290

NO.1

 14
90910-02081

5L..LY220,230,240,270,280,290

NO.2

 4
11101C - TUBE(FOR CYLINDER HEAD)
90440-15003

5L..LY220,230,240,270,280,290

 4
11115 - GASKET, CYLINDER HEAD
11115-54121F0

5L..LY220,230,240,270,280,290

MARK F

 1
11115-54121B0

5L..LY220,230,240,270,280,290

MARK B

 1
11115-54121D0

5L..LY220,230,240,270,280,290

MARK D

 1
11115-54130D0

5L..LY220,230,240,270,280,290

MARK D,ﾏｰｸ D

 1
11115-54130B0

5L..LY220,230,240,270,280,290

MARK B,ﾏｰｸ B

 1
11115-54130F0

5L..LY220,230,240,270,280,290

MARK F,ﾏｰｸ F

 1
11116B - PLUG, TIGHT, NO.2
96411-62500

5L..LY220,230,240,270,280,290

 7
11116C - PLUG, TIGHT, NO.3
96411-63000

5L..LY220,230,240,270,280,290

 1
11116D - PLUG, TIGHT, NO.4
96411-64500

5L..LY220,230,240,270,280,290

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-54020

5L..LY220,230,240,270,280,290

O/S 0.05

 4
11122-54020

5L..LY220,230,240,270,280,290

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11123-54020

5L..LY220,230,240,270,280,290

O/S 0.05

 4
11122-54020

5L..LY220,230,240,270,280,290

STD

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

5L..LY220,230,240,270,280,290

長さ=8,外径=11

 7
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
92122-80616

5L..LY220,230,240,270,280,290

ﾈｼﾞ部長さ=9 & 9,長さ=25

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-08166

5L..LY220,230,240,270,280,290

 10
11183 - PLUG, SEMICIRCULAR
11183-54020

5L..LY220,230,240,270,280,290

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-54032

5L..LY220,230,240,270,280,290

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90179-06319

5L..LY220,230,240,270,280,290

 2
11212 - COVER, CYLINDER HEAD, NO.2
11212-54030

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-54050

5L..LY220,230,240,270,280,290

 1
11224 - SILENCER, CYLINDER HEAD COVER
11224-54030

5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T)

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70020

5L..LY220,230,240,270,280,290

 1
12180-73011

5L..LY220,230,240,270,280,290

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-70010

5L..LY220,230,240,270,280,290

 1
12195-73010

5L..LY220,230,240,270,280,290

 1
Common parts
90119-06787
90119-10736
90201-08466
90387-06045
90389-08076
90480-15019
91622-61022
94120-40800
Linked diagrams
2201
