LY280-TBPDS6 (2001)
Toyota Dyna/Toyoace

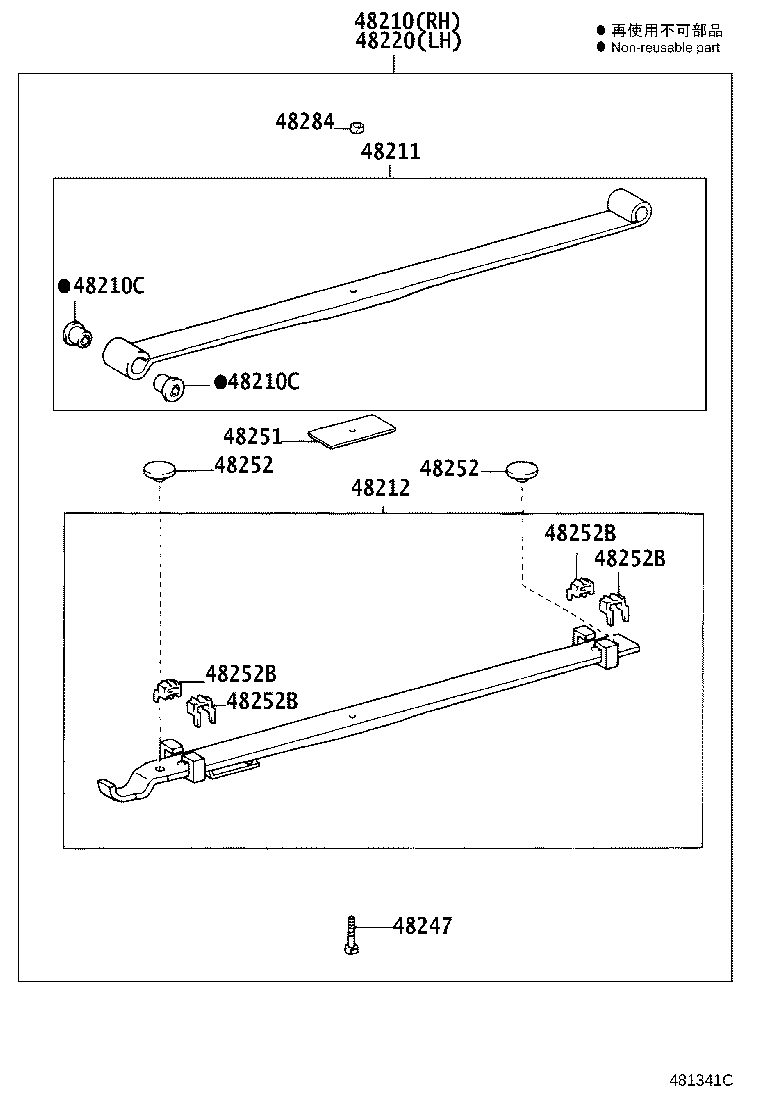

ILLUST NO. 2 OF 2(0107- )ST..IV6
2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E420 |
KDY23#,28#,LY230,280,RZY230,TRY230..IV6 2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
LY280,TRY230..T2..15T..ST;KDY280,LY230,RZY230..T3..125T;KDY280,LY230,RZY230..(T2,TW1,TW3)..ST;KDY281,LY280,TRY230..(125T,12T,1T)..ST;KDY22#,23#,27#,LY220,270,RZY220,TRY220..ST |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
LY280,TRY230..T2..15T..ST;KDY280,LY230,RZY230..T3..125T;KDY280,LY230,RZY230..(T2,TW1,TW3)..ST;KDY281,LY280,TRY230..(125T,12T,1T)..ST;KDY22#,23#,27#,LY220,270,RZY220,TRY220..ST |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E420 |
KDY23#,28#,LY230,280,RZY230,TRY230..IV6 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E420 |
KDY23#,28#,LY230,280,RZY230,TRY230..IV6 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E420 |
KDY23#,28#,LY230,280,RZY230,TRY230..IV6 2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25170 |
KDY24#,290,LY240,290;KDY23#,28#,LY230,280,RZY230,TRY230..ST..IV6 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
LY280..T3;KDY221..T3..TS;LY280..T2..15T;KDY221..TB..IV3;RZY220..1T..CBU;KDY221..T3..TB..CBU;KDY230,280..T4..MTM..IV3;KDY220,231..T3..125T..CBU;KDY231..TB..MTM..15T..WT..IV3;KDY231..(T3,T4)..TS..(IV3,IV6);KDY230,270,LY270..(T3,TW1)..(125T,1T);KDY220,RZY231,281,TRY231,281..(T3,T4)..IV3;KDY271,28#,LY220,230,RZY220,230,TRY220,230..T3..125T;KDY22#,23#,280,LY220,230,RZY220,230,TRY220,230..(T2,T3)..15T |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
KDY23#,28#,LY230,280,RZY230,TRY230..ST..IV6 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
KDY23#,28#,LY230,280,RZY230,TRY230..ST..IV6 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
ILLUST NO. 2 OF 3(0107- )KDY28#,LY230,RZY230,TRY230..TW1 ; (0107- )KDY28#,LY230,280,RZY230..12
4-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E420 |
KDY23#,28#,LY230,280,RZY230,TRY230..IV6 2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
LY280,TRY230..T2..15T..ST;KDY280,LY230,RZY230..T3..125T;KDY280,LY230,RZY230..(T2,TW1,TW3)..ST;KDY281,LY280,TRY230..(125T,12T,1T)..ST;KDY22#,23#,27#,LY220,270,RZY220,TRY220..ST |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
LY280,TRY230..T2..15T..ST;KDY280,LY230,RZY230..T3..125T;KDY280,LY230,RZY230..(T2,TW1,TW3)..ST;KDY281,LY280,TRY230..(125T,12T,1T)..ST;KDY22#,23#,27#,LY220,270,RZY220,TRY220..ST |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E420 |
KDY23#,28#,LY230,280,RZY230,TRY230..IV6 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E420 |
KDY23#,28#,LY230,280,RZY230,TRY230..IV6 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E420 |
KDY23#,28#,LY230,280,RZY230,TRY230..IV6 2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25170 |
KDY24#,290,LY240,290;KDY23#,28#,LY230,280,RZY230,TRY230..ST..IV6 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
LY280..T3;KDY221..T3..TS;LY280..T2..15T;KDY221..TB..IV3;RZY220..1T..CBU;KDY221..T3..TB..CBU;KDY230,280..T4..MTM..IV3;KDY220,231..T3..125T..CBU;KDY231..TB..MTM..15T..WT..IV3;KDY231..(T3,T4)..TS..(IV3,IV6);KDY230,270,LY270..(T3,TW1)..(125T,1T);KDY220,RZY231,281,TRY231,281..(T3,T4)..IV3;KDY271,28#,LY220,230,RZY220,230,TRY220,230..T3..125T;KDY22#,23#,280,LY220,230,RZY220,230,TRY220,230..(T2,T3)..15T |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
KDY23#,28#,LY230,280,RZY230,TRY230..ST..IV6 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
KDY23#,28#,LY230,280,RZY230,TRY230..ST..IV6 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
ILLUST NO. 1 OF 3(0107- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-25030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14014 |
KDY270..1T;KDY23#,28#,LY230,280,RZY230,TRY230..ST..IV6 長さ=170 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14014 |
KDY270..1T;KDY23#,28#,LY230,280,RZY230,TRY230..ST..IV6 長さ=170 |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E420 |
KDY23#,28#,LY230,280,RZY230,TRY230..IV6 2枚ﾘｰﾌ |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
8 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E420 |
KDY23#,28#,LY230,280,RZY230,TRY230..IV6 2枚ﾘｰﾌ |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-25080 |
KDY23#,28#,LY230,280,RZY230,TRY230..ST..IV6 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-25080 |
KDY23#,28#,LY230,280,RZY230,TRY230..ST..IV6 |
1 | ||
| 48473 - SEAT, REAR SPRING U BOLT | ||||
| 48473-25080 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80228 |
KDY23#,28#,LY230,280,RZY230,TRY230..ST..IV6 ﾏｰｸ 48531−25250 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80228 |
KDY23#,28#,LY230,280,RZY230,TRY230..ST..IV6 ﾏｰｸ 48531−25250 |
1 | ||
| Common parts | ||||
| 90101-16043 | ||||
| 90105-12151 | ||||
| 90105-16081 | ||||
| 90119-10355 | ||||
| 90170-12008 | ||||
| 90170-14026 | ||||
| 90170-16016 | ||||
| 90179-14023 | ||||
| 90201-16035 | ||||
| 94621-11400 | ||||
| 94622-11200 | ||||
ILLUST NO. 3 OF 3(0107- )
