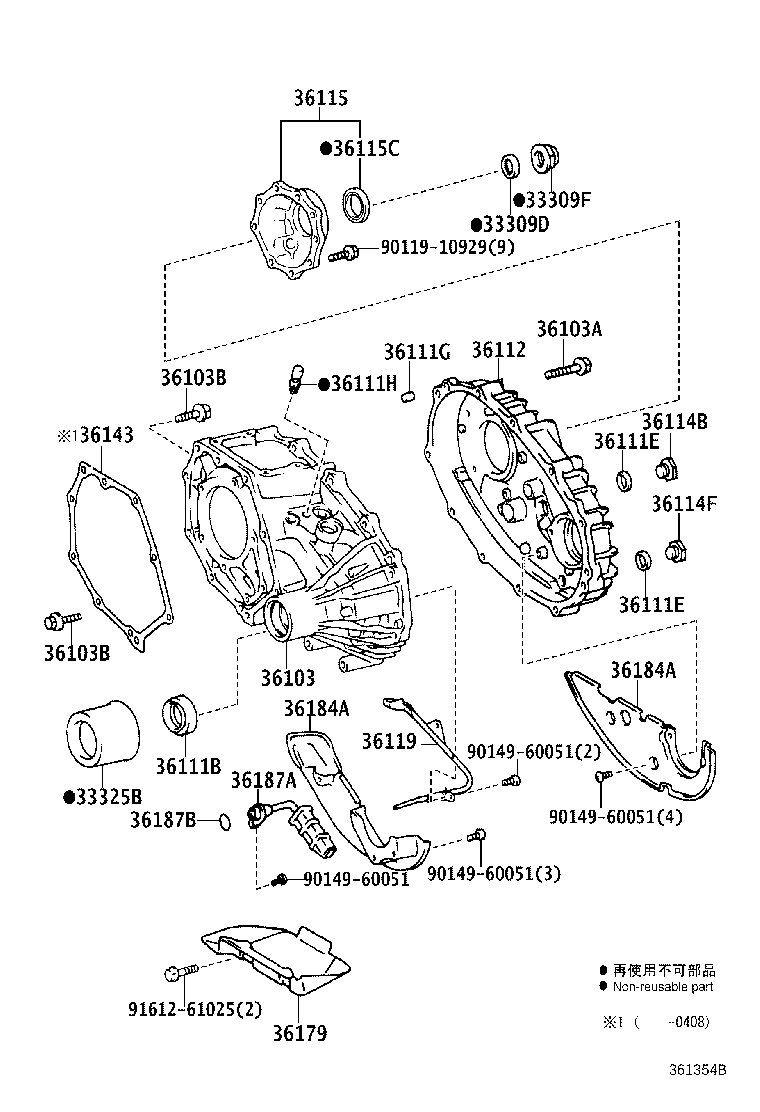

Toyota Dyna/toyoace LY280 TRANSFER CASE & EXTENSION HOUSING

Part #	Description	Period	Qty
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001	KDY27#,28#,290,LY270,280,290,RZY281,TRY281	07/2001 - 12/2999	1
33309F - NUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90179-20010	KDY27#,28#,290,LY270,280,290,RZY281,TRY281	07/2001 - 12/2999	1
33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)
33325-28020	KDY27#,28#,290,LY270,280,290,RZY281,TRY281	07/2001 - 12/2999	1
36103 - CASE SUB-ASSY, TRANSFER
36103-28040	KDY28#..TW1;LY280..ATM..WT;LY280..MTM..125T..WT;KDY281,LY280..MTM..(12T,15T)..(DCR,DSL);KDY280,290,LY290,RZY281,TRY281..03S,06S,TB	07/2001 - 12/2999	1
36103A - BOLT (FOR TRANSFER CASE)
91612-61055	KDY27#,28#,290,LY270,280,290,RZY281,TRY281 *10−1.25PX55−30	07/2001 - 12/2999	11
36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING)
90119-10615	KDY27#,28#,290,LY270,280,290,RZY281,TRY281 *10−1.25PX47−30	07/2001 - 12/2999	8
36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING)
90119-10615	KDY27#,28#,290,LY270,280,290,RZY281,TRY281 *10−1.25PX47−30	07/2001 - 12/2999	8
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-37003	KDY281..15T;KDY28#,LY280..TW1;KDY280,290,LY280,290,RZY281,TRY281..03S,06S,TB	07/2001 - 12/2999	1
36111E - GASKET (FOR TRANSFER CASE)
90430-18008	KDY27#,28#,290,LY270,280,290,RZY281,TRY281	07/2001 - 12/2999	2
36111E - GASKET (FOR TRANSFER CASE)
90430-18008	KDY27#,28#,290,LY270,280,290,RZY281,TRY281	07/2001 - 12/2999	2
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10214	KDY27#,28#,290,LY270,280,290,RZY281,TRY281 長さ=14,外径=10	07/2001 - 12/2999	2
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03085	KDY27#,28#,290,LY270,280,290,RZY281,TRY281	07/2001 - 12/2999	1
36112 - CASE, TRANSFER, REAR
36112-25010	KDY281..15T;KDY28#,LY280..TW1;KDY280,290,LY280,290,RZY281,TRY281..03S,06S,TB	07/2001 - 12/2999	1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006	KDY270,280,290,LY270,280,290,RZY281	07/2001 - 01/2005	1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18057	KDY27#,28#,290,LY270,280,290,RZY281,TRY281	07/2001 - 12/2999	1
36115 - HOUSING, TRANSFER EXTENSION
36105-25010	KDY281..15T;KDY28#,LY280..TW1;KDY280,290,LY280,290,RZY281,TRY281..03S,06S,TB	07/2001 - 12/2999	1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-38062	KDY280,LY280..TW1;KDY280,290,LY280,290,RZY281..03S,06S,TB	07/2001 - 09/2004	1
36119 - RECEIVER, TRANSFER OIL, NO.1
36119-25010	KDY27#,28#,290,LY270,280,290,RZY281,TRY281	07/2001 - 12/2999	1
36143 - GASKET, TRANSFER CASE, FRONT
36143-28020	LY270,280,290,RZY281	07/2001 - 08/2004	1
36179 - PROTECTOR, TRANSFER CASE LOWER
36179-25010	KDY27#,28#,290,LY270,280,290,RZY281,TRY281	07/2001 - 12/2999	1
36184A - SEPARATOR, TRANSFER OIL
36184-28030	KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ﾌﾛﾝﾄｹｰｽ側	07/2001 - 12/2999	1
36184-26010	KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ﾘﾔｹｰｽ側	07/2001 - 12/2999	1
36184A - SEPARATOR, TRANSFER OIL
36184-28030	KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ﾌﾛﾝﾄｹｰｽ側	07/2001 - 12/2999	1
36184-26010	KDY27#,28#,290,LY270,280,290,RZY281,TRY281 ﾘﾔｹｰｽ側	07/2001 - 12/2999	1
36187A - STRAINR, TRANSFER OIL, NO.1
36187-25010	KDY27#,28#,290,LY270,280,290,RZY281,TRY281	07/2001 - 12/2999	1
36187B - RING, O (FOR TRANSFER OIL STRAINER)
96721-24017	KDY27#,28#,290,LY270,280,290,RZY281,TRY281	07/2001 - 12/2999	1
Common parts
90119-10929
90149-60051
91612-61025

LY280-PQPES (2001)

(0107- )KDY280,LY280..TB ; (0107- )KDY280,LY280..TW1 ; (0107- )KDY281,290,
