LY280-PQMES (2001)
Toyota Dyna/Toyoace

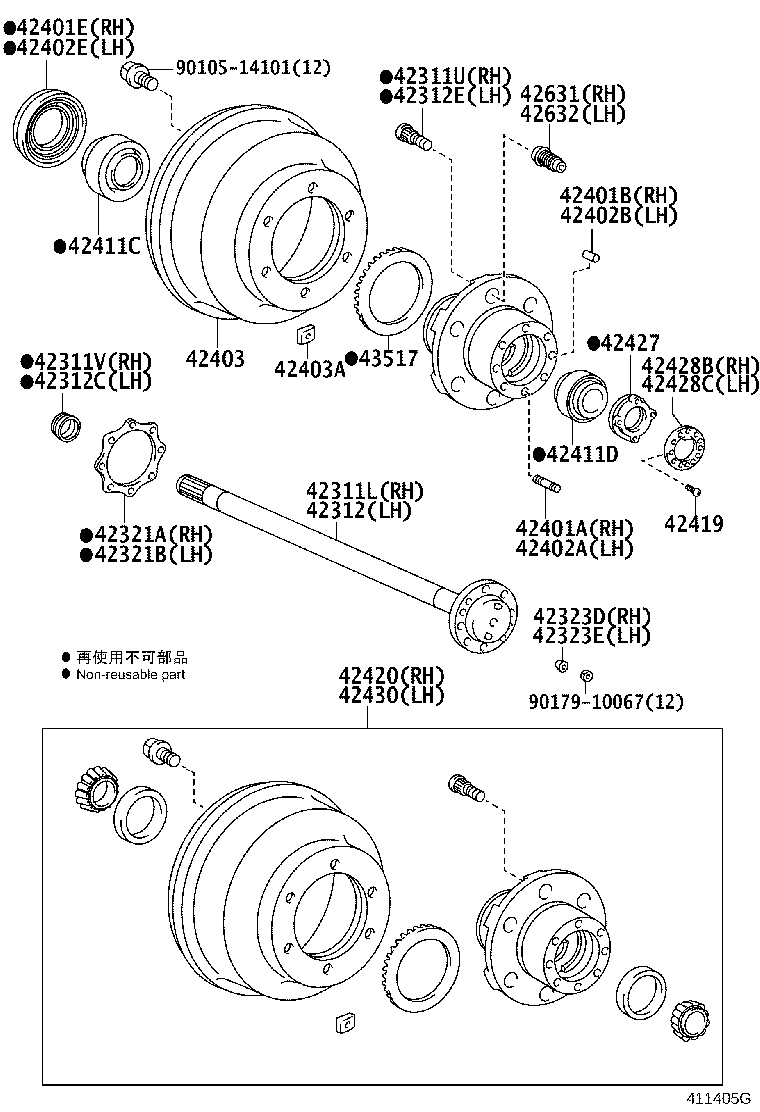

(0107- )T4,TW4,VAN
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-36091 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02050 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
6 | ||
| 90942-02061 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN ｱﾘ(ABS) |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-38033 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-36091 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-38033 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02051 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
6 | ||
| 90942-02062 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN ｱﾘ(ABS) |
6 | ||
| 42321A - GASKET, REAR AXLE SHAFT, RH | ||||
| 42321-25010 |
KDY220,230,240,280,290,RZY231,281..T4,TW4,VAN |
1 | ||
| 42321-25010 |
LY220,230,240,280,290..(T4,TW4,VAN)..DSL |
1 | ||
| 42321B - GASKET, REAR AXLE SHAFT, LH | ||||
| 42321-25010 |
LY220,230,240,280,290..(T4,TW4,VAN)..DSL |
1 | ||
| 42321-25010 |
KDY220,230,240,280,290,RZY231,281..T4,TW4,VAN |
1 | ||
| 42323D - WASHER, CONE (FOR REAR AXLE SHAFT RH) | ||||
| 42323-36010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
6 | ||
| 42323E - WASHER, CONE (FOR REAR AXLE SHAFT LH) | ||||
| 42323-36010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
6 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-10191 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10055 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-75003 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-10191 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
6 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10055 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-75003 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36090 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42431-25120 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ｱﾘ(ABS) |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01119 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 30G |
1 | ||
| 90937-01118 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 20G |
1 | ||
| 90937-01117 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 10G |
1 | ||
| 90937-01121 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN 50G |
1 | ||
| 90937-01120 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN 40G |
1 | ||
| 90937-01122 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN 60G |
1 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-29035 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42420-29045 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ｱﾘ(ABS) |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42428B - PLATE, REAR AXLE LOCK NUT, RH | ||||
| 42428-36020 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42428C - PLATE, REAR AXLE LOCK NUT, LH | ||||
| 42428-36020 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-29035 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42430-29045 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ｱﾘ(ABS) |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
LY220,230,240,280,290..(T4,TW4,VAN)..DSL |
6 | ||
| 42631-36010 |
KDY220,230,240,280,290,RZY231,281..T4,TW4,VAN |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
LY220,230,240,280,290..(T4,TW4,VAN)..DSL |
6 | ||
| 42632-36010 |
KDY220,230,240,280,290,RZY231,281..T4,TW4,VAN |
6 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-37010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 90179-10067 | ||||

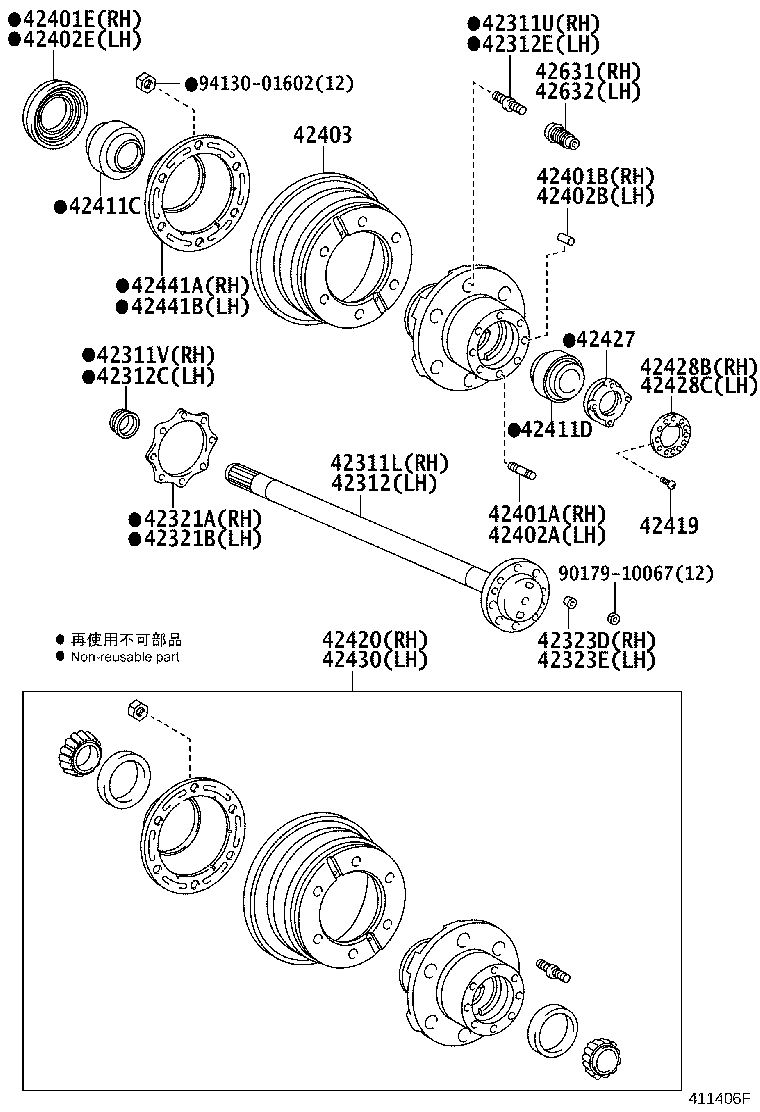

(0107- )T4,TW4,VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-36091 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02050 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
6 | ||
| 90942-02061 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN ｱﾘ(ABS) |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-38033 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-36091 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-38033 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02051 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
6 | ||
| 90942-02062 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN ｱﾘ(ABS) |
6 | ||
| 42321A - GASKET, REAR AXLE SHAFT, RH | ||||
| 42321-25010 |
KDY220,230,240,280,290,RZY231,281..T4,TW4,VAN |
1 | ||
| 42321-25010 |
LY220,230,240,280,290..(T4,TW4,VAN)..DSL |
1 | ||
| 42321B - GASKET, REAR AXLE SHAFT, LH | ||||
| 42321-25010 |
LY220,230,240,280,290..(T4,TW4,VAN)..DSL |
1 | ||
| 42321-25010 |
KDY220,230,240,280,290,RZY231,281..T4,TW4,VAN |
1 | ||
| 42323D - WASHER, CONE (FOR REAR AXLE SHAFT RH) | ||||
| 42323-36010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
6 | ||
| 42323E - WASHER, CONE (FOR REAR AXLE SHAFT LH) | ||||
| 42323-36010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
6 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-10191 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10055 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-75003 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-10191 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
6 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10055 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-75003 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36090 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42431-25120 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ｱﾘ(ABS) |
2 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-29035 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42420-29045 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ｱﾘ(ABS) |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42428B - PLATE, REAR AXLE LOCK NUT, RH | ||||
| 42428-36020 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42428C - PLATE, REAR AXLE LOCK NUT, LH | ||||
| 42428-36020 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-29035 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42430-29045 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ｱﾘ(ABS) |
1 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-36050 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-36050 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
LY220,230,240,280,290..(T4,TW4,VAN)..DSL |
6 | ||
| 42631-36010 |
KDY220,230,240,280,290,RZY231,281..T4,TW4,VAN |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
LY220,230,240,280,290..(T4,TW4,VAN)..DSL |
6 | ||
| 42632-36010 |
KDY220,230,240,280,290,RZY231,281..T4,TW4,VAN |
6 | ||
| Common parts | ||||
| 90179-10067 | ||||
| 94130-01602 | ||||
(0107- )KDY280..T3,TW3..TS ; (0107- )KDY281,TRY230..T2,T3,TW3..125T,1T ; (010
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-36091 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42311-36091 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02050 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
6 | ||
| 90942-02050 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
6 | ||
| 90942-02061 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN ｱﾘ(ABS) |
6 | ||
| 90942-02061 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN ｱﾘ(ABS) |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-38033 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 90310-38033 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-36091 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42311-36091 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-38033 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 90310-38033 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02051 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
6 | ||
| 90942-02051 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
6 | ||
| 90942-02062 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN ｱﾘ(ABS) |
6 | ||
| 90942-02062 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN ｱﾘ(ABS) |
6 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36090 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42431-36090 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 42431-25120 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ｱﾘ(ABS) |
2 | ||
| 42431-25120 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN ｱﾘ(ABS) |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01119 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 30G |
1 | ||
| 90937-01119 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 30G |
1 | ||
| 90937-01118 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 20G |
1 | ||
| 90937-01118 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 20G |
1 | ||
| 90937-01117 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 10G |
1 | ||
| 90937-01117 |
LY230,RZY220,TRY220..T2..ST;KDY22#,23#,LY220,RZY230,TRY230..ST;LY230,RZY220,TRY220..T3,T4,TW1,TW3,TW4;KDY22#,23#,LY220,RZY230,TRY230..T4,TW4;KDY24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281 10G |
1 | ||
| 90937-01121 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN 50G |
1 | ||
| 90937-01121 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN 50G |
1 | ||
| 90937-01120 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN 40G |
1 | ||
| 90937-01120 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN 40G |
1 | ||
| 90937-01122 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN 60G |
1 | ||
| 90937-01122 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN 60G |
1 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-36050 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
1 | ||
| 42441-36050 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-36050 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
1 | ||
| 42441-36050 |
RZY231..MTM;KDY230,280..T4;KDY230,280..TW4..MTM;KDY22#,231,24#,290,LY220,230,240,280,290,RZY220,230..T4,TW4,VAN |
1 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-37010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
| 43517-37010 |
KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
