LY280-PBPBS (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )DSL

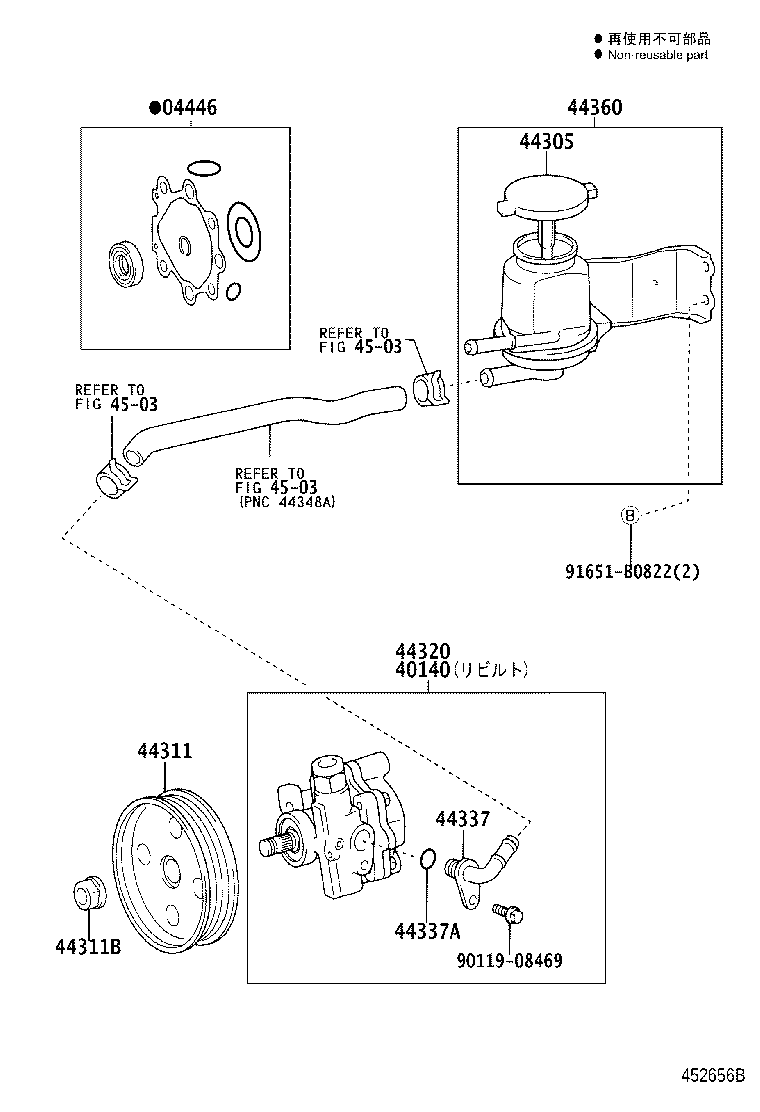

Click highlighted areas on diagram

diagram 04446 40140 44305 44311 44311B 44320 44337 44337A 44360 4503 4503 4503 9011908469 91651B0822
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-34010

LY220,230,240,270,280,290..DSL

 1
04446-53030

LY220,230,240,270,280,290

 1
40140 - PUMP ASSY,VANE REBUILT
40140-25090

LY220,230,240,270,280,290..DSL

TOYODA KOKI

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230..DCR,DSL,EFI

 1
44311 - PULLEY, VANE PUMP
44311-26050

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

 1
44320 - PUMP ASSY, VANE
44320-25090

LY220,230,240,270,280,290..DSL

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-35070

LY220,230,240,270,280,290..DSL

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11016

KDY27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-25030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL

 1
Common parts
90119-08469
91651-B0822
Linked diagrams
4503
