LY280-PBPBS (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )LY220,230,280,RZY220,230,TRY220,230..TS..ATM

Click highlighted areas on diagram

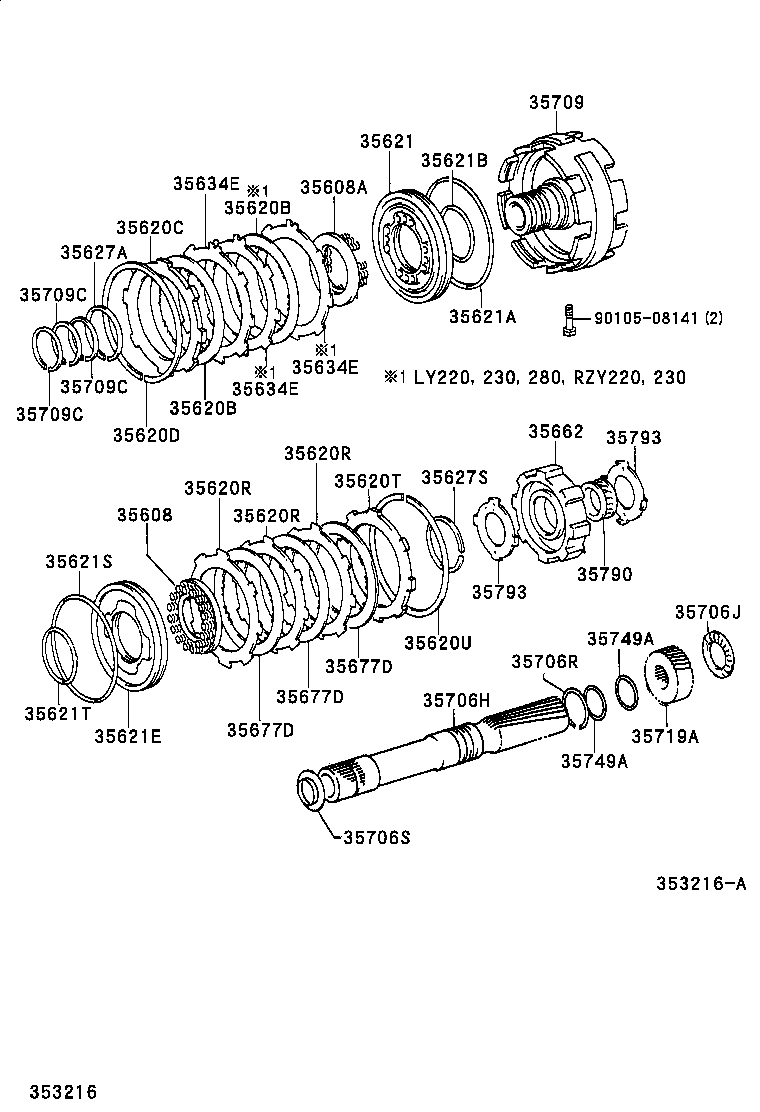

A44DE,A44DF,A45DE

diagram 35608 35608A 35620B 35620B 35620C 35620D 35620R 35620R 35620R 35620T 35620U 35621 35621A 35621B 35621E 35621S 35621T 35627A 35627S 35634E 35634E 35634E 35662 35677D 35677D 35677D 35706H 35706J 35706R 35706S 35709 35709C 35709C 35709C 35719A 35749A 35749A 35790 35793 35793 9010508141
Part # Description Qty Price
35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-30020

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35608A - SPRING SUB-ASSY, BRAKE PISTON RETURN
35608-20010

LY220,230,280..TS..ATM

 1
35620B - DISC, CLUTCH (FOR BRAKE)
35677-30140

LY220,230,280..TS..ATM

 2
35620B - DISC, CLUTCH (FOR BRAKE)
35677-30140

LY220,230,280..TS..ATM

 2
35620C - FLANGE, CLUTCH (FOR BRAKE)
35675-22140

LY220,230,280..TS..ATM

 1
35620D - RING (FOR BRAKE)
90521-99139

LY220,230,280..TS..ATM

 1
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35648-30020

LY220,230,280..TS..ATM

 3
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35648-30020

LY220,230,280..TS..ATM

 3
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35648-30020

LY220,230,280..TS..ATM

 3
35620T - FLANGE, CLUTCH (FOR REAR BRAKE)
35676-22030

LY220,230,280..TS..ATM

 1
35620U - RING (FOR REAR BRAKE)
90521-99139

LY220,230,280..TS..ATM

 1
35621 - PISTON, BRAKE, NO.1
35624-22010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35621A - RING, O (FOR BRAKE PISTON OUTER)
90301-99110

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35621B - RING, O (FOR BRAKE PISTON INNER)
90301-56007

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35621E - PISTON, BRAKE (FOR REAR BRAKE)
35621-30010

LY220,230,280..TS..ATM

 1
35621S - RING (FOR REAR BRAKE PISTON OUTER)
90301-99107

LY220,230,280..TS..ATM

 1
35621T - RING (FOR REAR BRAKE PISTON INNER)
90301-56007

LY220,230,280..TS..ATM

 1
35627A - RING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)
90520-52262

LY220,230,280..TS..ATM

 1
35627S - RING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)
90520-52262

LY220,230,280..TS..ATM

 1
35634E - PLATE, CLUTCH (FOR BRAKE)
35634-22060

LY220,230,280..TS..ATM

 3
35634E - PLATE, CLUTCH (FOR BRAKE)
35634-22060

LY220,230,280..TS..ATM

 3
35634E - PLATE, CLUTCH (FOR BRAKE)
35634-22060

LY220,230,280..TS..ATM

 3
35662 - HUB, BRAKE
35662-30010

LY220,230,280..TS..ATM

 1
35677D - DISC, CLUTCH (FOR REAR BRAKE)
35677-22070

LY220,230,280..TS..ATM

 3
35677D - DISC, CLUTCH (FOR REAR BRAKE)
35677-22070

LY220,230,280..TS..ATM

 3
35677D - DISC, CLUTCH (FOR REAR BRAKE)
35677-22070

LY220,230,280..TS..ATM

 3
35706H - GEAR SUB-ASSY, PLANETARY SUN
35706-30050

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
90374-21001

LY220,230,280,RZY220,230..TS..ATM

 1
35706R - RING, SHAFT SNAP (FOR PLANETARY SUN GEAR)
90520-34001

LY220,230,280..TS..ATM

 1
35706S - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)
35789-43020

LY220,230,280..TS..ATM

 1
35709 - SUPPORT SUB-ASSY, CENTER
35709-12020

LY220,230,280,RZY220,230..TS..ATM

 1
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-16010

LY220,230,280,RZY220,230..TS..ATM

 3
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-16010

LY220,230,280,RZY220,230..TS..ATM

 3
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-16010

LY220,230,280,RZY220,230..TS..ATM

 3
35719A - GEAR, REAR PLANETARY SUN
35719-30050

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35749A - RING, SUN GEAR SHAFT OIL SEAL
35749-22010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 2
35749A - RING, SUN GEAR SHAFT OIL SEAL
35749-22010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 2
35790 - CLUTCH ASSY, 1 WAY
35791-30100

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35791-30020

LY220,230,280,RZY220,230..TS..ATM

 1
35793 - RETAINER, 1 WAY CLUTCH
35793-22011

LY220,230,280..TS..ATM

 2
35793 - RETAINER, 1 WAY CLUTCH
35793-22011

LY220,230,280..TS..ATM

 2
Common parts
90105-08141

(0107- )KDY230,280,LY230,280,RZY231,281,TRY230..TB..ATM..DCR,EFI,LPG ; (0605-

Click highlighted areas on diagram

A442E,A442F,A443E,A443F

diagram 35608 35620E 35620F 35621 35621A 35621B 35632 35632 35632 35632 35632C 35632C 35632C 35632C 35676B 35706H 35706Q 35709 35709B 35709C 35709C 35709E 35719A 35785
Part # Description Qty Price
35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-30020

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35608-30020

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35621 - PISTON, BRAKE, NO.1
35624-22010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35624-22010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35621A - RING, O (FOR BRAKE PISTON OUTER)
90301-99110

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
90301-99110

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35621B - RING, O (FOR BRAKE PISTON INNER)
90301-56007

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
90301-56007

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35706H - GEAR SUB-ASSY, PLANETARY SUN
35706-30050

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35706-30050

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35709 - SUPPORT SUB-ASSY, CENTER
35709-12020

LY220,230,280,RZY220,230..TS..ATM

 1
35709-12020

LY220,230,280,RZY220,230..TS..ATM

 1
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-16010

LY220,230,280,RZY220,230..TS..ATM

 3
35617-16010

LY220,230,280,RZY220,230..TS..ATM

 3
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-16010

LY220,230,280,RZY220,230..TS..ATM

 3
35617-16010

LY220,230,280,RZY220,230..TS..ATM

 3
35719A - GEAR, REAR PLANETARY SUN
35719-30050

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35719-30050

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
