LY280-PBMBS (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0107- )DSL

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1603 1603 8712 8712125030 8712425050 8712425090 8712425110 8712437090 87245A 87245B 87246A 87246B 87248A 87249A 9011908802 9016840006 9016840006 9046721010 9046721010 9046721010 9046721010 9155180814 9155180814 91621B0816 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
99556-30300

LY220,230,240,270,280,290..DSL

*H,L=250

 1
87245B - HOSE, HEATER WATER, INLET B
87245-25450

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25680

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87246B - HOSE, HEATER WATER, OUTLET B
99556-30300

LY220,230,240,270,280,290..DSL

*H,L=220

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25070

LY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25080

LY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
Common parts
87121-25030
87124-25050
87124-25090
87124-25110
87124-37090
90119-08802
90168-40006
90467-21010
91551-80814
91621-B0816
96134-42100
Linked diagrams
1603
8712

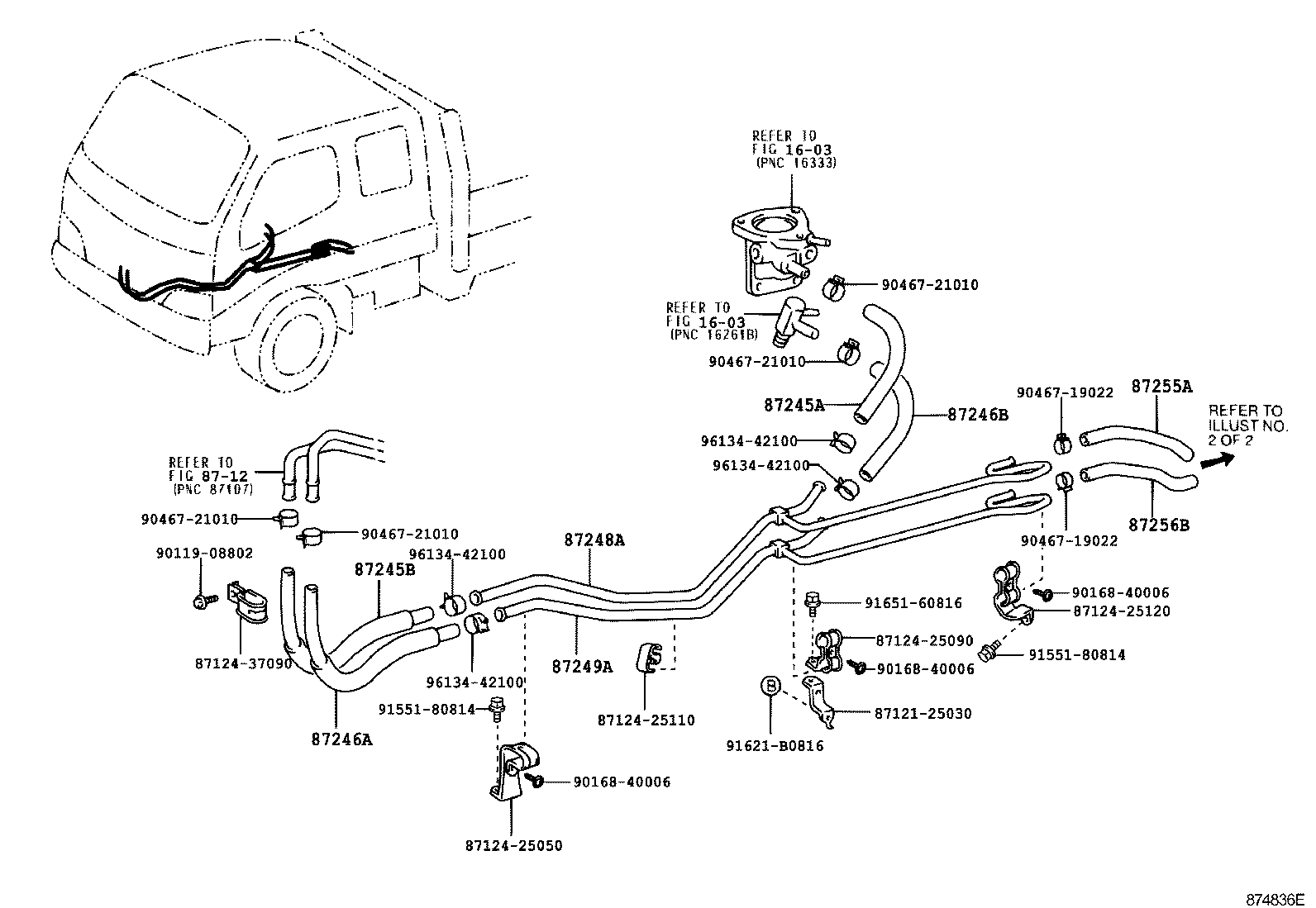

ILLUST NO. 1 OF 2(0107- )LY220,230,270,280..TW1,TW2,TW3,TW4

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ﾋ-ﾀ)

diagram 1603 1603 8712 8712125030 8712425050 8712425090 8712425110 8712425120 8712437090 87245A 87245B 87246A 87246B 87248A 87249A 87255A 87256B 9011908802 9016840006 9016840006 9016840006 9046719022 9046719022 9046721010 9046721010 9046721010 9046721010 9155180814 9155180814 91621B0816 9165160816 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
99556-30300

LY220,230,240,270,280,290..DSL

*H,L=250

 1
87245B - HOSE, HEATER WATER, INLET B
87245-25450

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25680

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87246B - HOSE, HEATER WATER, OUTLET B
99556-30300

LY220,230,240,270,280,290..DSL

*H,L=220

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25070

LY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25080

LY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-25460

LY220,230,270,280..TW1,TW2,TW3,TW4

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-25470

LY220,230,270,280..TW1,TW2,TW3,TW4

 1
Common parts
87121-25030
87124-25050
87124-25090
87124-25110
87124-25120
87124-37090
90119-08802
90168-40006
90467-19022
90467-21010
91551-80814
91621-B0816
91651-60816
96134-42100
Linked diagrams
1603
8712

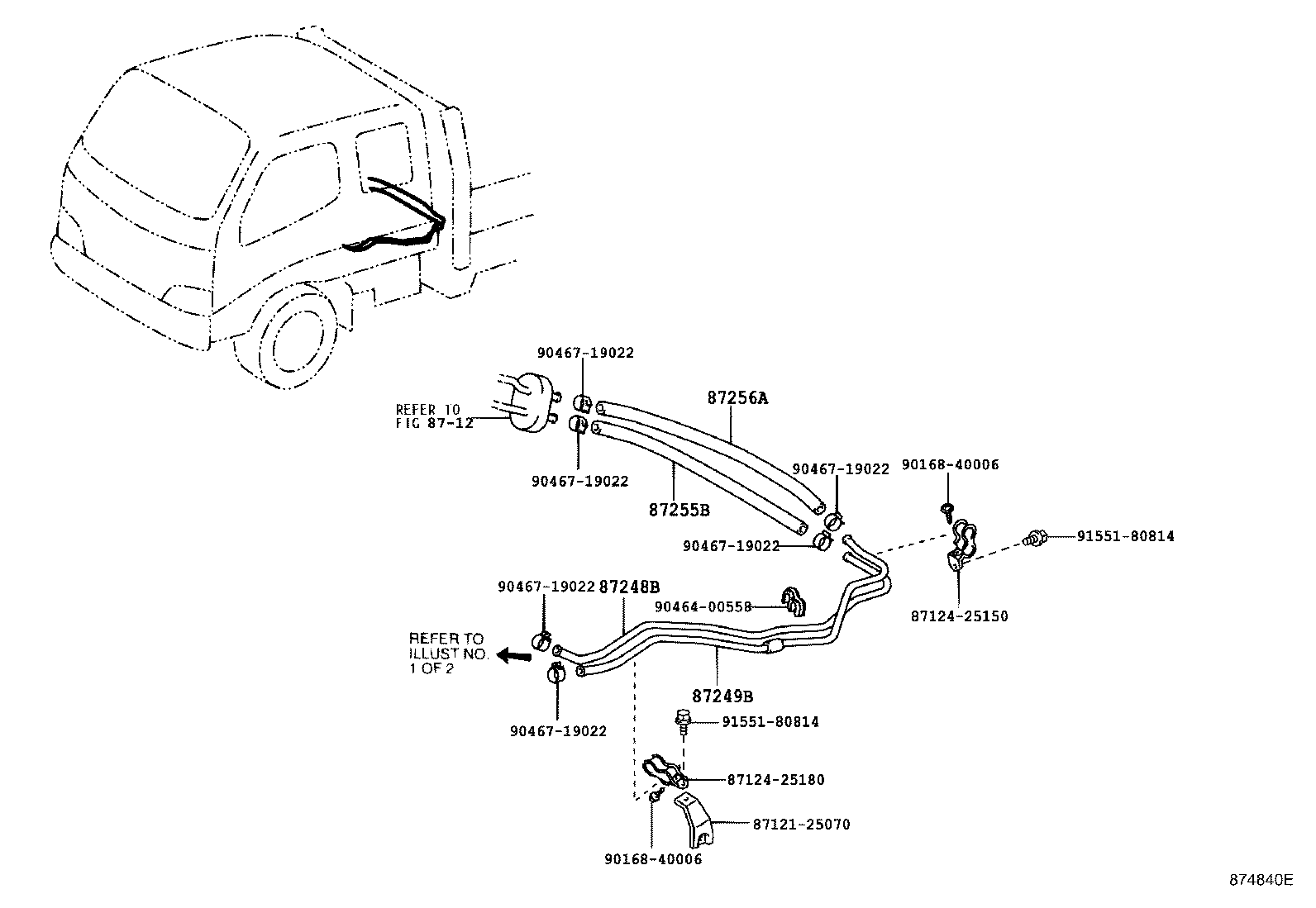

ILLUST NO. 2 OF 2(0107- )LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

Click highlighted areas on diagram

ﾘﾔ

diagram 8712 8712125070 8712425150 8712425180 87248B 87249B 87255B 87256A 9016840006 9016840006 9046400558 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9155180814 9155180814
Part # Description Qty Price
87248B - PIPE, HEATER WATER INLET, B
87248-25200

LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-25210

LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20500

LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

*H,L=470

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20490

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

*H,L=450

 1
Common parts
87121-25070
87124-25150
87124-25180
90168-40006
90464-00558
90467-19022
91551-80814
Linked diagrams
8712
