LY280-PBMBS (2001)
Toyota Dyna/Toyoace
(0107- )TW1,TW2,TW3,TW4

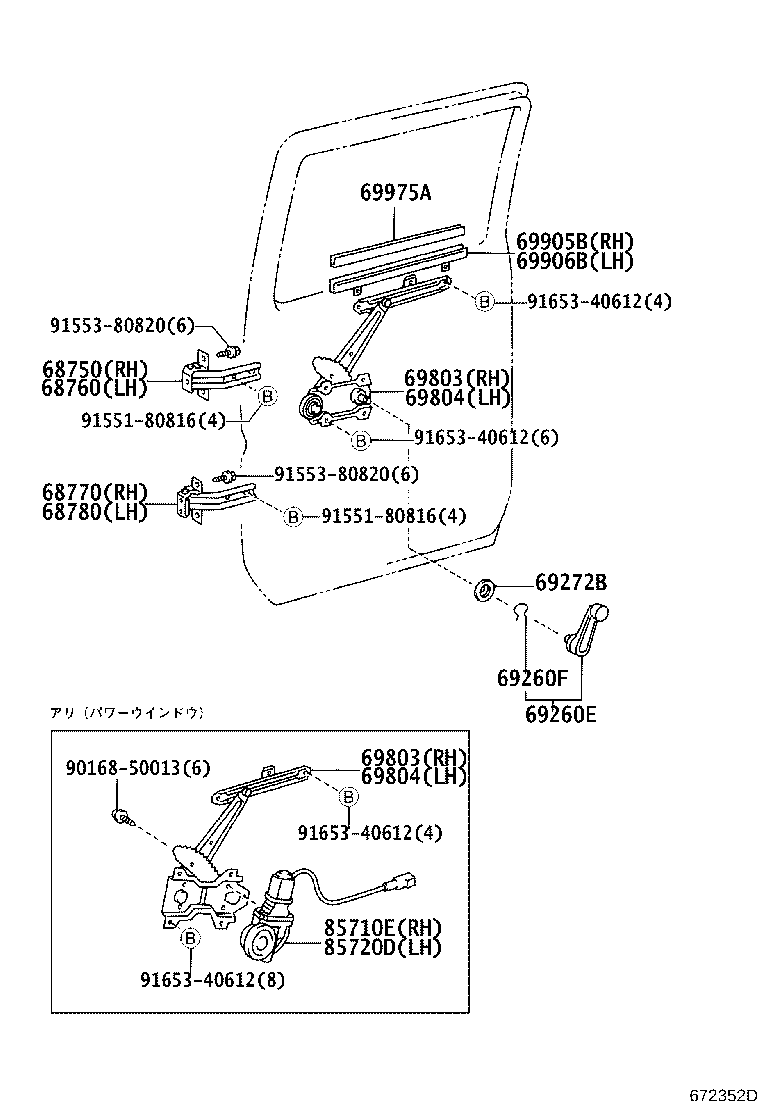

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68750-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-89104B3 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
2 | ||
| 69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90520-01274 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE | ||||
| 69285-22010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-37020 |
KDY231,TRY230..TW1,TW3;KDY231,TRY230..TB..125T;KDY22#,230,27#,28#,LY220,230,270,280,RZY220,230,TRY220..TW1,TW2,TW3,TW4 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 69830-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-37020 |
KDY231,TRY230..TW1,TW3;KDY231,TRY230..TB..125T;KDY22#,230,27#,28#,LY220,230,270,280,RZY220,230,TRY220..TW1,TW2,TW3,TW4 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 69830-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 69804-37020 |
KDY231,TRY230..TW1,TW3;KDY231,TRY230..TB..125T;KDY22#,230,27#,28#,LY220,230,270,280,RZY220,230,TRY220..TW1,TW2,TW3,TW4 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 69804-37020 |
KDY231,TRY230..TW1,TW3;KDY231,TRY230..TB..125T;KDY22#,230,27#,28#,LY220,230,270,280,RZY220,230,TRY220..TW1,TW2,TW3,TW4 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85720-37080 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85710-37060 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| Common parts | ||||
| 90168-50013 | ||||
| 91551-80816 | ||||
| 91553-80820 | ||||
| 91653-40612 | ||||
