LY280-PBMBS (2001)
Toyota Dyna/Toyoace

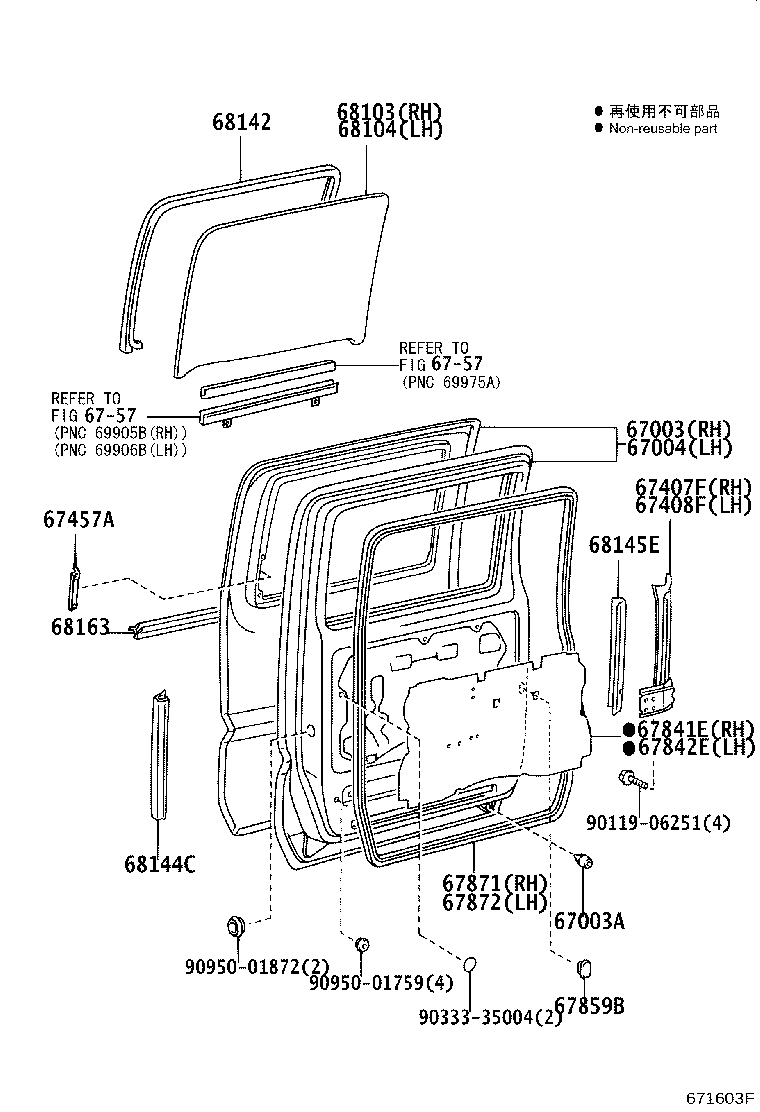

ILLUST NO. 2 OF 2(0107- )TW1,TW2,TW3,TW4
ﾄﾞｱ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-37030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 67003-37040 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 Eﾊﾟｯｹｰｼﾞ(ﾄﾘﾑｺｰﾄﾞ:ED** OR FF**) |
1 | ||
| 67003A - PLUG, HOLE(FOR REAR DOOR PANEL) | ||||
| 90541-09031 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-37050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 67004-37060 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 Eﾊﾟｯｹｰｼﾞ(ﾄﾘﾑｺｰﾄﾞ:ED** OR FF**) |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 67457A - BRACKET, REAR DOOR REAR GUIDE, UPPER | ||||
| 67457-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
4 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-37040 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 67841-37030 |
KDY231,TRY230..TW1,TW3;KDY231,TRY230..TB..125T;KDY22#,230,27#,28#,LY220,230,270,280,RZY220,230,TRY220..TW1,TW2,TW3,TW4 E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-37030 |
KDY231,TRY230..TW1,TW3;KDY231,TRY230..TB..125T;KDY22#,230,27#,28#,LY220,230,270,280,RZY220,230,TRY220..TW1,TW2,TW3,TW4 E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 67842-37020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 67859B - COVER, REAR DOOR LOWER HOLE | ||||
| 67859-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-37010 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 67871-37011 |
KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67871-37011 |
KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 67871-37010 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-37040 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
2 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68113-37040 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
2 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-37010 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 68144C - RUN, REAR DOOR GLASS, LOWER FRONT | ||||
| 68144-37010 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 68144-37011 |
KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 68145E - RUN, REAR DOOR GLASS, LOWER REAR | ||||
| 68145-37011 |
KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 68145-37010 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68163-37010 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 68163-37011 |
KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| Common parts | ||||
| 90119-06251 | ||||
| 90333-35004 | ||||
| 90950-01759 | ||||
| 90950-01872 | ||||
| Linked diagrams | ||||
| 6757 | ||||

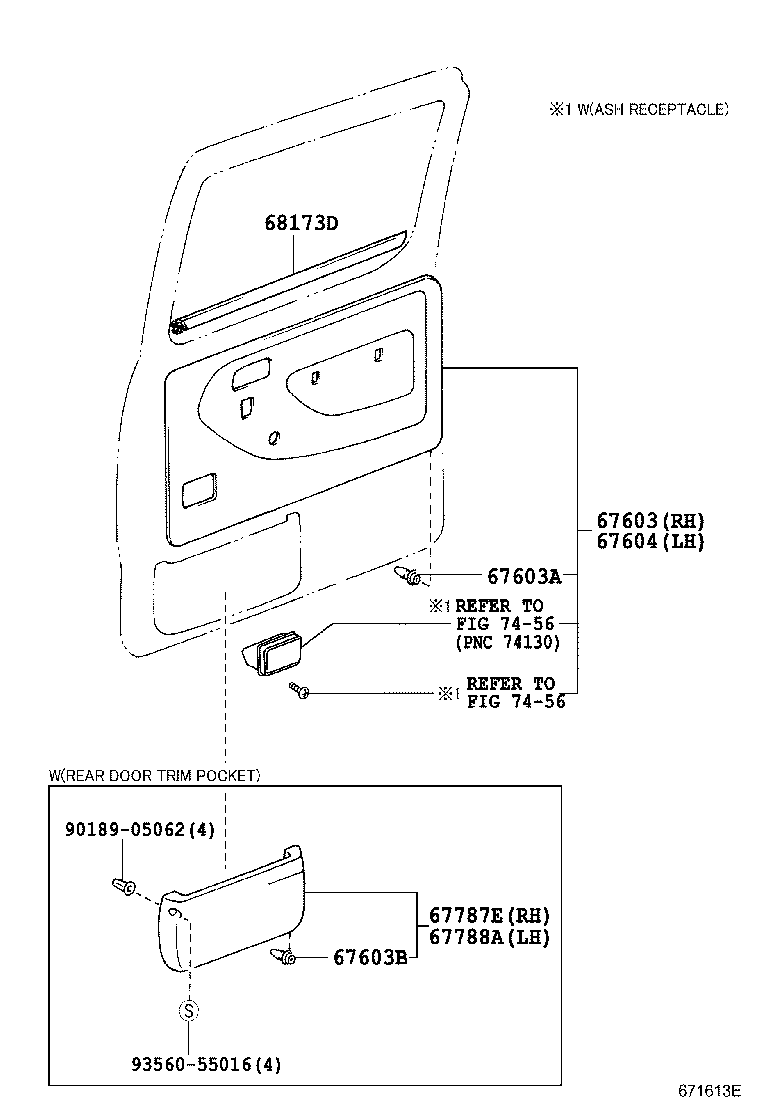

ILLUST NO. 1 OF 2(0107- )TW1,TW2,TW3,TW4
ﾄﾞｱ ﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-37110B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｱﾂｼﾕ ﾘｾﾌﾟﾀｸﾙ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1# |
1 | ||
| 67630-25020B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1# |
1 | ||
| 67630-37090B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 67630-37130B0 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｱﾂｼﾕ ﾘｾﾌﾟﾀｸﾙ),MD.CHARCOAL,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-16080 |
TRY230..(TW2,TW3)..TS;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220..TW1,TW2,TW3,TW4 |
20 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-26010 |
TRY230..(TW2,TW3)..TS;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220..TW1,TW2,TW3,TW4 |
6 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-25020B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1# |
1 | ||
| 67640-37100B0 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｱﾂｼﾕ ﾘｾﾌﾟﾀｸﾙ),MD.CHARCOAL,TRIM1# |
1 | ||
| 67640-37070B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 67640-37080B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｱﾂｼﾕ ﾘｾﾌﾟﾀｸﾙ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1# |
1 | ||
| 67787E - POCKET, REAR DOOR TRIM, RH | ||||
| 67787-37030B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 67788A - POCKET, REAR DOOR TRIM, LH | ||||
| 67787-37030B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 68173D - WEATHERSTRIP, REAR DOOR GLASS, CHANNEL | ||||
| 68173-37011 |
KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 68173-37010 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| Common parts | ||||
| 90189-05062 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 7456 | ||||
