LY280-PBMBS (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )TW1,TW2,TW3,TW4

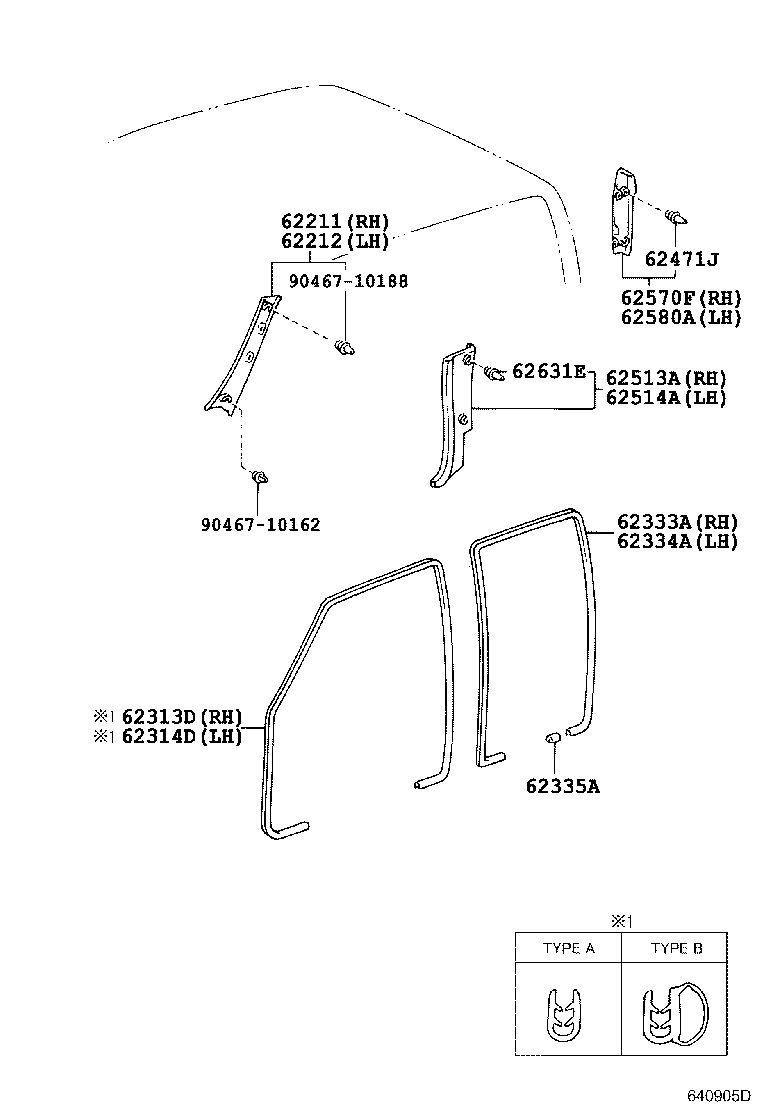

Click highlighted areas on diagram

diagram 62211 62212 62313D 62314D 62333A 62334A 62335A 62471J 62513A 62514A 62570F 62580A 62631E 9046710162 9046710188
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-37010B0

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

MD.CHARCOAL,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-37010B0

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

MD.CHARCOAL,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37040B0

LY220,230,240,270,280,290,RZY231,281,TRY220,230

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
62313-37040B0

LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-37040B0

LY220,230,240,270,280,290,RZY231,281,TRY220,230

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
62313-37040B0

LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-37020B0

LY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4

MD.CHARCOAL,TRIM1#

 1
62333-37020B0

LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

MD.CHARCOAL,TRIM1#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-37020B0

LY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4

MD.CHARCOAL,TRIM1#

 1
62333-37020B0

LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

MD.CHARCOAL,TRIM1#

 1
62335A - COVER, REAR DOOR OPENING TRIM
62335-37010B0

TRY230..(TW2,TW3)..TS;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220..TW1,TW2,TW3,TW4

MD.CHARCOAL,TRIM1#

 2
62471J - CLIP (FOR ROOF SIDE GARNISH)
67771-12050

LY220,230,240,270,280,290,RZY220,230..TW1,TW2,TW3,TW4,VAN

 4
90467-10161

TRY230..(TW2,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,TRY220..TW1,TW2,TW3,TW4,VAN

 4
62513A - PANEL, QUARTER TRIM, LOWER RH
62513-37010B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#

 1
62514A - PANEL, QUARTER TRIM, LOWER LH
62514-37010B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

MD.CHARCOAL,TRIM1#

 1
62570F - GARNISH ASSY, ROOF SIDE, INNER LOWER RH
62570-37010B0

KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

E ﾊﾟﾂｹ-ｼﾞ,MD.CHARCOAL,TRIM1#

 1
62570-37020B0

KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

MD.CHARCOAL,TRIM1#

 1
62580A - GARNISH ASSY, ROOF SIDE, INNER LOWER LH
62580-37020B0

KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

MD.CHARCOAL,TRIM1#

 1
62580-37010B0

KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

E ﾊﾟﾂｹ-ｼﾞ,MD.CHARCOAL,TRIM1#

 1
62631E - RETAINER, QUATER TRIM
90467-10161

TRY230..WT..IV6;KDY231..T3..125T;TRY230..(TW2,TW3)..TS;KDY231..T2,T4,TW2,TW3,TW4;KDY22#,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,231,281

 4
67771-12050

LY220,230,240,270,280,290,RZY220,230

 4
Common parts
90467-10162
90467-10188
