LY280-PBMBS (2001)
Toyota Dyna/Toyoace
(0107- )TW1,TW2,TW3,TW4

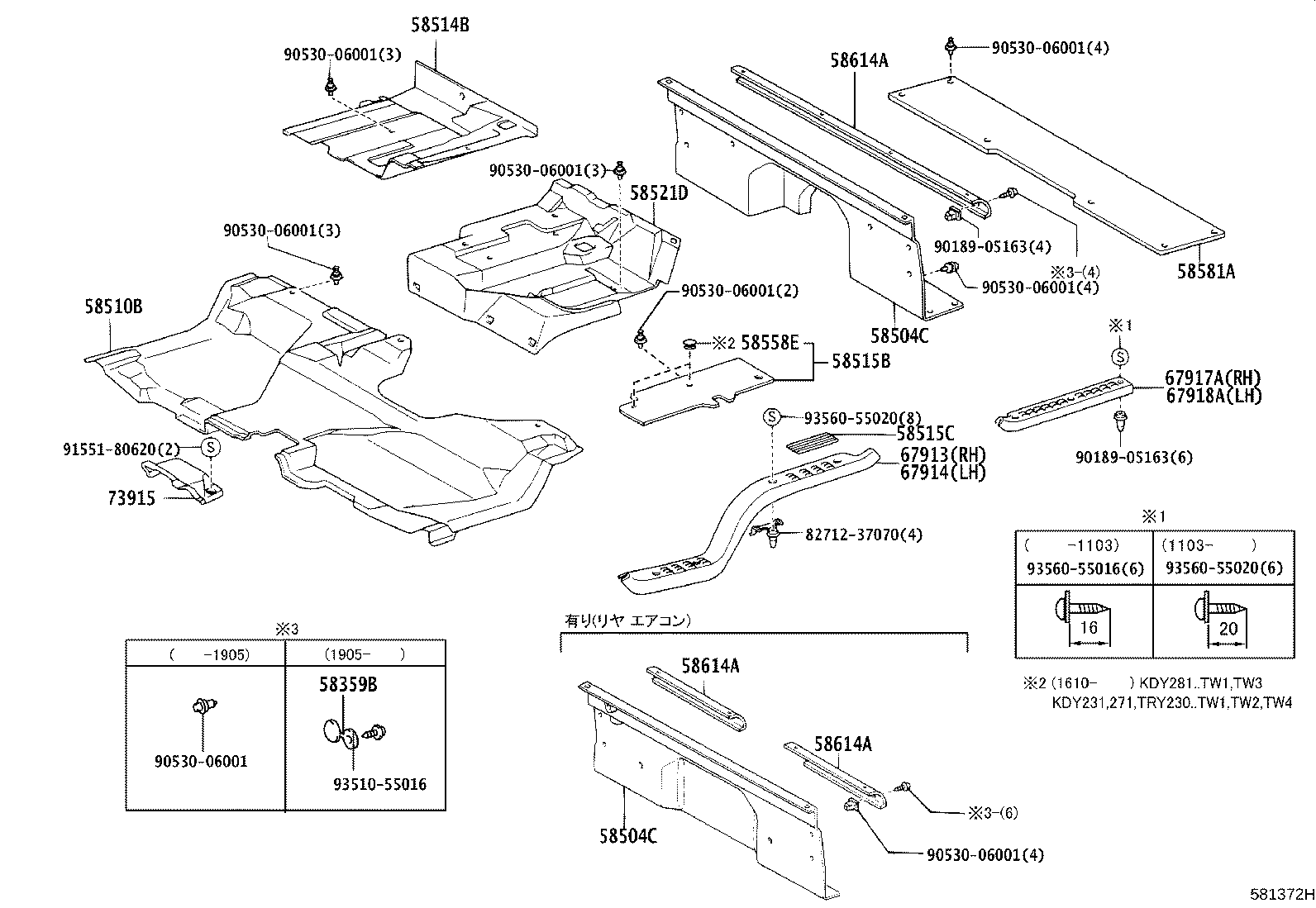

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58504C - MAT SUB-ASSY, HEADER | ||||
| 58504-37130B1 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 DARK CHARCOAL,TRIM1# |
1 | ||
| 58504-37110B1 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58504-37120B1 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｴｱｺﾝ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58504-37140B1 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾘﾔ ｴｱｺﾝ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58504C - MAT SUB-ASSY, HEADER | ||||
| 58504-37130B1 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 DARK CHARCOAL,TRIM1# |
1 | ||
| 58504-37110B1 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58504-37120B1 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｴｱｺﾝ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58504-37140B1 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾘﾔ ｴｱｺﾝ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-25440B0 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-25360B0 |
KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(*80 & ｼ-ﾄﾊﾞﾂｸ ｺﾝｿ-ﾙ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37670B1 |
KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ｺﾝｿ-ﾙ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-25460B0 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN ｱﾘ(*80),DARK CHARCOAL,TRIM1# |
1 | ||
| 58514B - MAT, FLOOR, REAR RH | ||||
| 58514-25060B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ｺﾝｿ-ﾙ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58514-25070B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN DARK CHARCOAL,TRIM1# |
1 | ||
| 58515B - MAT, FLOOR, REAR LH | ||||
| 58515-37090B1 |
KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,TRY220,230..TW1,TW2,TW3,TW4,VAN DARK CHARCOAL,TRIM1# |
1 | ||
| 58515C - MAT, FRONT FLOOR, REAR NO.1 | ||||
| 58515-37080B1 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-37220B1 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ｺﾝｿ-ﾙ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58521-25190B0 |
LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN DARK CHARCOAL,TRIM1# |
1 | ||
| 58581A - MAT, REAR FLOOR | ||||
| 58581-37230B1 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｴｱｺﾝ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58581-37250B1 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｶﾝﾚｲﾁ ｼﾖｳ,DARK CHARCOAL,TRIM1# |
1 | ||
| 58581-37240B1 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 DARK CHARCOAL,TRIM1# |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58614-37030B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｴｱｺﾝ),DK.CHARCOAL,TRIM1#,左側 |
1 | ||
| 58614-37010B0 |
LY220,230,270,280,RZY220,230..TW1,TW2,TW3,TW4 DK.CHARCOAL,TRIM1# |
1 | ||
| 58614-37020B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｴｱｺﾝ),DK.CHARCOAL,TRIM1#,右側 |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58614-37030B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｴｱｺﾝ),DK.CHARCOAL,TRIM1#,左側 |
1 | ||
| 58614-37010B0 |
LY220,230,270,280,RZY220,230..TW1,TW2,TW3,TW4 DK.CHARCOAL,TRIM1# |
1 | ||
| 58614-37020B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｴｱｺﾝ),DK.CHARCOAL,TRIM1#,右側 |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58614-37030B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｴｱｺﾝ),DK.CHARCOAL,TRIM1#,左側 |
1 | ||
| 58614-37010B0 |
LY220,230,270,280,RZY220,230..TW1,TW2,TW3,TW4 DK.CHARCOAL,TRIM1# |
1 | ||
| 58614-37020B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｴｱｺﾝ),DK.CHARCOAL,TRIM1#,右側 |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-37020B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-37010B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 73915 - COVER, SEAT AIR BAG NO.1, RH | ||||
| 73915-37010 |
TRY230..1T;KDY231..T3..125T;KDY231..T2,T4,TW2,TW3,TW4;KDY22#,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
1 | ||
| Common parts | ||||
| 82712-37070 | ||||
| 90189-05163 | ||||
| 90530-06001 | ||||
| 91551-80620 | ||||
| 93510-55016 | ||||
| 93560-55016 | ||||
| 93560-55020 | ||||
