LY270-PSMBS (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0207)IV6 ; (0107- )KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY

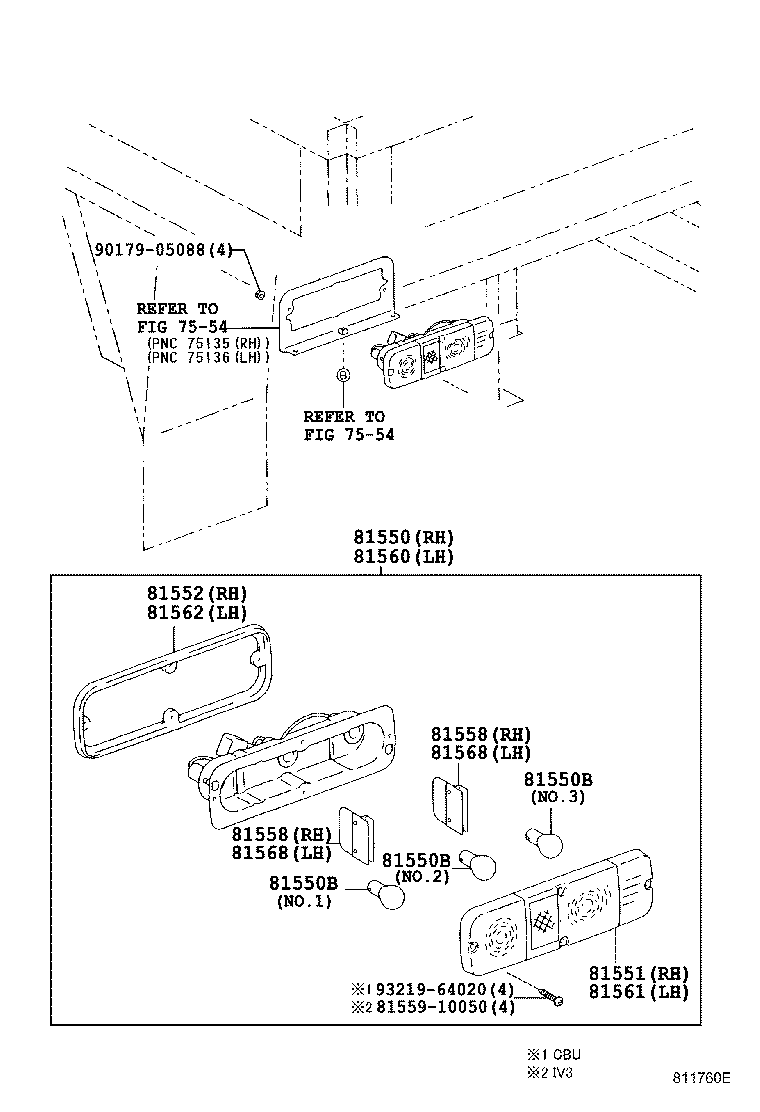

Click highlighted areas on diagram

diagram 7554 7554 81550 81550B 81550B 81550B 81551 81552 81558 81558 8155910050 81560 81561 81562 81568 81568 9017905088 9321964020
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-25100

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

KDY22#,23#,241,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

12V 21/5W,NO.2

 2
99132-11210

KDY22#,23#,241,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

12V 21W,NO.1 & NO.3

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

KDY22#,23#,241,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

12V 21/5W,NO.2

 2
99132-11210

KDY22#,23#,241,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

12V 21W,NO.1 & NO.3

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

KDY22#,23#,241,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

12V 21/5W,NO.2

 2
99132-11210

KDY22#,23#,241,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281

12V 21W,NO.1 & NO.3

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-25060

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-25060

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-25060

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3

 2
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-25060

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-25090

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-25040

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81562-25040

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-25060

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3

 2
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-25060

KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3

 2
Common parts
81559-10050
90179-05088
93219-64020
Linked diagrams
7554
