LY270-PSMBS (2001)
Toyota Dyna/Toyoace

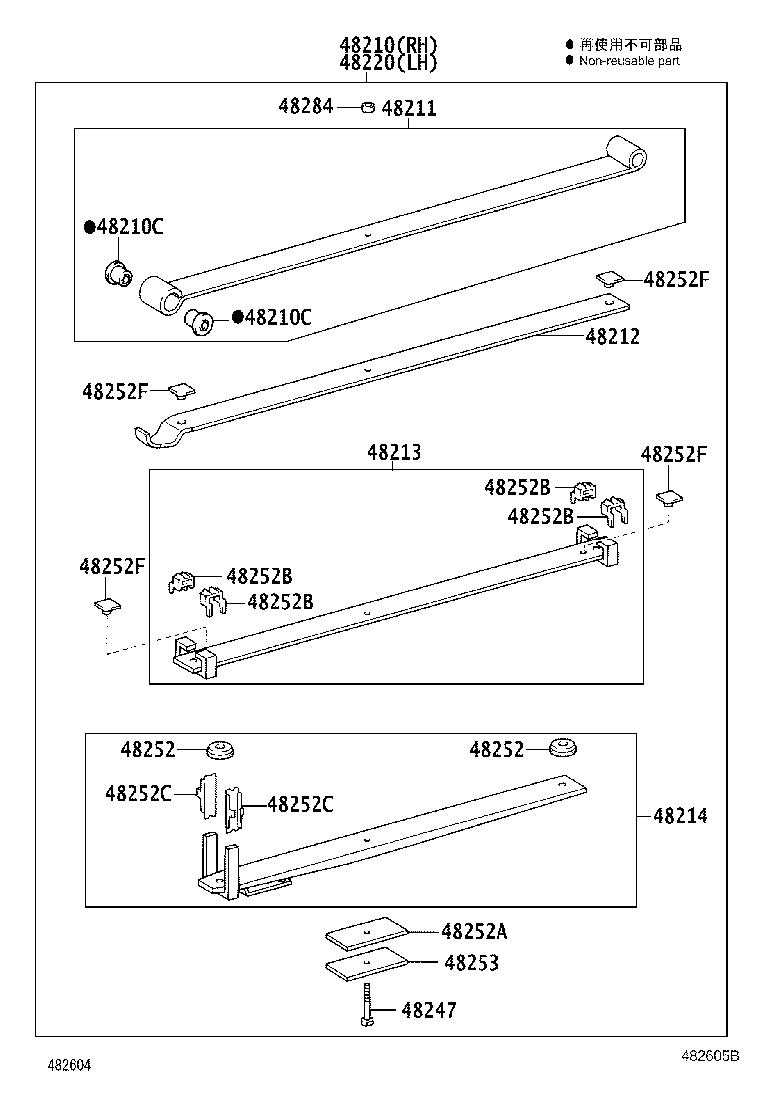

ILLUST NO. 2 OF 2(0107-0906)KDY27#,LY270,RZY220,TRY220..1T..CBU ;(0906- )KDY271,TRY220..1T..CBU
4-LEAF,ｼﾖｳﾎﾞｳｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T 4枚ﾘｰﾌ |
1 | ||
| 48210-2E410 |
KDY270,LY270,RZY220..1T..CBU 4枚ﾘｰﾌ,ｼﾖｳﾎﾞｳ ｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
LY280,TRY230..T2..15T..ST;KDY280,LY230,RZY230..T3..125T;KDY280,LY230,RZY230..(T2,TW1,TW3)..ST;KDY281,LY280,TRY230..(125T,12T,1T)..ST;KDY22#,23#,27#,LY220,270,RZY220,TRY220..ST |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
LY280,TRY230..T2..15T..ST;KDY280,LY230,RZY230..T3..125T;KDY280,LY230,RZY230..(T2,TW1,TW3)..ST;KDY281,LY280,TRY230..(125T,12T,1T)..ST;KDY22#,23#,27#,LY220,270,RZY220,TRY220..ST |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48201-2E410 |
KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48212-2E410 |
KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48202-2E410 |
KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-2E410 |
KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48203-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T 4枚ﾘｰﾌ |
1 | ||
| 48210-2E410 |
KDY270,LY270,RZY220..1T..CBU 4枚ﾘｰﾌ,ｼﾖｳﾎﾞｳ ｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36052 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST..(CBU,IV3) |
2 | ||
| 48247-36060 |
TRY220..125T..WT;KDY220,230..(T2,TW2)..WT;KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
LY280..T3;KDY221..T3..TS;LY280..T2..15T;KDY221..TB..IV3;RZY220..1T..CBU;KDY221..T3..TB..CBU;KDY230,280..T4..MTM..IV3;KDY220,231..T3..125T..CBU;KDY231..TB..MTM..15T..WT..IV3;KDY231..(T3,T4)..TS..(IV3,IV6);KDY230,270,LY270..(T3,TW1)..(125T,1T);KDY220,RZY231,281,TRY231,281..(T3,T4)..IV3;KDY271,28#,LY220,230,RZY220,230,TRY220,230..T3..125T;KDY22#,23#,280,LY220,230,RZY220,230,TRY220,230..(T2,T3)..15T |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26401 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,27#,280,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26401 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,27#,280,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37880 |
LY230..WT;RZY230..TB..WT;KDY231..WT..IV6;LY280..T4,TW3,TW4;RZY230..(T2,TW3)..TS;LY280..125T..ST..(CBU,IV3);KDY280,TRY230..(T2,T4,TW2)..WT;LY230..(T2,T3,TW3)..(125T,1T)..(CBU,IV3);KDY28#,TRY230..(T2,T3,TW3,TW4)..(125T,1T)..(CBU,IV3);KDY22#,23#,27#,LY220,270,RZY220,231,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37880 |
LY230..WT;RZY230..TB..WT;KDY231..WT..IV6;LY280..T4,TW3,TW4;RZY230..(T2,TW3)..TS;LY280..125T..ST..(CBU,IV3);KDY280,TRY230..(T2,T4,TW2)..WT;LY230..(T2,T3,TW3)..(125T,1T)..(CBU,IV3);KDY28#,TRY230..(T2,T3,TW3,TW4)..(125T,1T)..(CBU,IV3);KDY22#,23#,27#,LY220,270,RZY220,231,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||

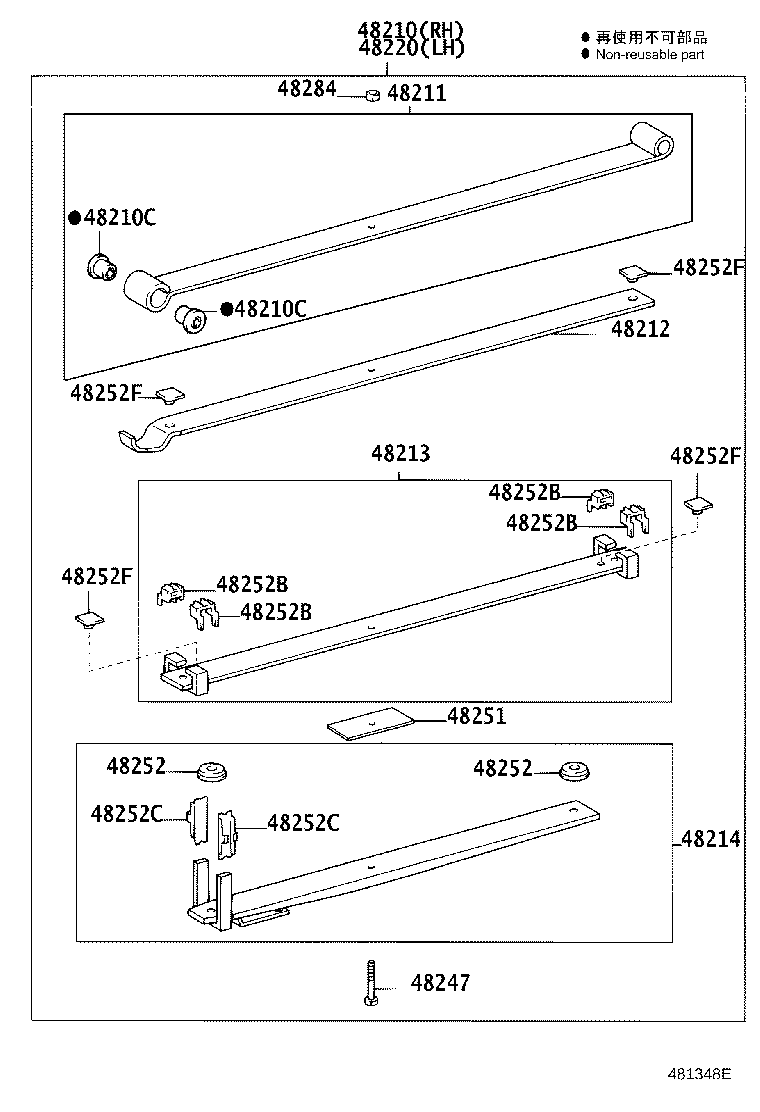

ILLUST NO. 2 OF 2(0107- )KDY22#,23#,27#,LY220,270,TRY220..T2,TW1,TW3..125T,12T,1T..ST
4-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T 4枚ﾘｰﾌ |
1 | ||
| 48210-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T 4枚ﾘｰﾌ |
1 | ||
| 48210-2E410 |
KDY270,LY270,RZY220..1T..CBU 4枚ﾘｰﾌ,ｼﾖｳﾎﾞｳ ｼﾖｳ |
1 | ||
| 48210-2E410 |
KDY270,LY270,RZY220..1T..CBU 4枚ﾘｰﾌ,ｼﾖｳﾎﾞｳ ｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
LY280,TRY230..T2..15T..ST;KDY280,LY230,RZY230..T3..125T;KDY280,LY230,RZY230..(T2,TW1,TW3)..ST;KDY281,LY280,TRY230..(125T,12T,1T)..ST;KDY22#,23#,27#,LY220,270,RZY220,TRY220..ST |
4 | ||
| 90389-16026 |
LY280,TRY230..T2..15T..ST;KDY280,LY230,RZY230..T3..125T;KDY280,LY230,RZY230..(T2,TW1,TW3)..ST;KDY281,LY280,TRY230..(125T,12T,1T)..ST;KDY22#,23#,27#,LY220,270,RZY220,TRY220..ST |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
LY280,TRY230..T2..15T..ST;KDY280,LY230,RZY230..T3..125T;KDY280,LY230,RZY230..(T2,TW1,TW3)..ST;KDY281,LY280,TRY230..(125T,12T,1T)..ST;KDY22#,23#,27#,LY220,270,RZY220,TRY220..ST |
4 | ||
| 90389-16026 |
LY280,TRY230..T2..15T..ST;KDY280,LY230,RZY230..T3..125T;KDY280,LY230,RZY230..(T2,TW1,TW3)..ST;KDY281,LY280,TRY230..(125T,12T,1T)..ST;KDY22#,23#,27#,LY220,270,RZY220,TRY220..ST |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48201-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48201-2E410 |
KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48201-2E410 |
KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48212-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48212-2E410 |
KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48212-2E410 |
KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48202-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48202-2E410 |
KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48202-2E410 |
KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-2E410 |
KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48203-2E410 |
KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48203-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48203-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T 4枚ﾘｰﾌ |
1 | ||
| 48210-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T 4枚ﾘｰﾌ |
1 | ||
| 48210-2E410 |
KDY270,LY270,RZY220..1T..CBU 4枚ﾘｰﾌ,ｼﾖｳﾎﾞｳ ｼﾖｳ |
1 | ||
| 48210-2E410 |
KDY270,LY270,RZY220..1T..CBU 4枚ﾘｰﾌ,ｼﾖｳﾎﾞｳ ｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36052 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST..(CBU,IV3) |
2 | ||
| 48247-36052 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST..(CBU,IV3) |
2 | ||
| 48247-36060 |
TRY220..125T..WT;KDY220,230..(T2,TW2)..WT;KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48247-36060 |
TRY220..125T..WT;KDY220,230..(T2,TW2)..WT;KDY270,LY270,RZY220..1T..CBU ｼﾖｳﾎﾞｳ ｼﾖｳ |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26401 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,27#,280,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252-26401 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,27#,280,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26401 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,27#,280,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252-26401 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,27#,280,LY220,230,270,280,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48216-3B060 |
KDY281..T3..(CBU,IV3);KDY270,LY270..(T3,TW1)..CBU;KDY231,LY280,TRY230..T2..15T..ST;KDY280,LY230..T3..125T..(CBU,IV3);KDY230,280,LY230,RZY230..(15T,1T)..ST;KDY231,271,LY280,TRY230..(T3,TW3)..(CBU,IV3);KDY22#,230,LY220,RZY220,TRY220..(T3,TW1)..(125T,1T)..(CBU,IV3) |
2 | ||
| 48216-3B060 |
KDY281..T3..(CBU,IV3);KDY270,LY270..(T3,TW1)..CBU;KDY231,LY280,TRY230..T2..15T..ST;KDY280,LY230..T3..125T..(CBU,IV3);KDY230,280,LY230,RZY230..(15T,1T)..ST;KDY231,271,LY280,TRY230..(T3,TW3)..(CBU,IV3);KDY22#,230,LY220,RZY220,TRY220..(T3,TW1)..(125T,1T)..(CBU,IV3) |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252-37380 |
KDY281..125T;KDY23#,TRY230..T3..125T;KDY23#,TRY230..T2,T4,TW1,TW2,TW3,TW4;KDY22#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281 |
8 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37880 |
LY230..WT;RZY230..TB..WT;KDY231..WT..IV6;LY280..T4,TW3,TW4;RZY230..(T2,TW3)..TS;LY280..125T..ST..(CBU,IV3);KDY280,TRY230..(T2,T4,TW2)..WT;LY230..(T2,T3,TW3)..(125T,1T)..(CBU,IV3);KDY28#,TRY230..(T2,T3,TW3,TW4)..(125T,1T)..(CBU,IV3);KDY22#,23#,27#,LY220,270,RZY220,231,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252-37880 |
LY230..WT;RZY230..TB..WT;KDY231..WT..IV6;LY280..T4,TW3,TW4;RZY230..(T2,TW3)..TS;LY280..125T..ST..(CBU,IV3);KDY280,TRY230..(T2,T4,TW2)..WT;LY230..(T2,T3,TW3)..(125T,1T)..(CBU,IV3);KDY28#,TRY230..(T2,T3,TW3,TW4)..(125T,1T)..(CBU,IV3);KDY22#,23#,27#,LY220,270,RZY220,231,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37880 |
LY230..WT;RZY230..TB..WT;KDY231..WT..IV6;LY280..T4,TW3,TW4;RZY230..(T2,TW3)..TS;LY280..125T..ST..(CBU,IV3);KDY280,TRY230..(T2,T4,TW2)..WT;LY230..(T2,T3,TW3)..(125T,1T)..(CBU,IV3);KDY28#,TRY230..(T2,T3,TW3,TW4)..(125T,1T)..(CBU,IV3);KDY22#,23#,27#,LY220,270,RZY220,231,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252-37880 |
LY230..WT;RZY230..TB..WT;KDY231..WT..IV6;LY280..T4,TW3,TW4;RZY230..(T2,TW3)..TS;LY280..125T..ST..(CBU,IV3);KDY280,TRY230..(T2,T4,TW2)..WT;LY230..(T2,T3,TW3)..(125T,1T)..(CBU,IV3);KDY28#,TRY230..(T2,T3,TW3,TW4)..(125T,1T)..(CBU,IV3);KDY22#,23#,27#,LY220,270,RZY220,231,281,TRY220,231,281..CBU,IV3 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48252-26070 |
TRY230..15T,1T;KDY231..WT..IV6;KDY281,TRY230..125T..(CBU,IV3);KDY22#,23#,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..CBU,IV3 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48251-3B720 |
KDY230..T4..TS..MTM..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48251-3B720 |
KDY230..T4..TS..MTM..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 48284-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||

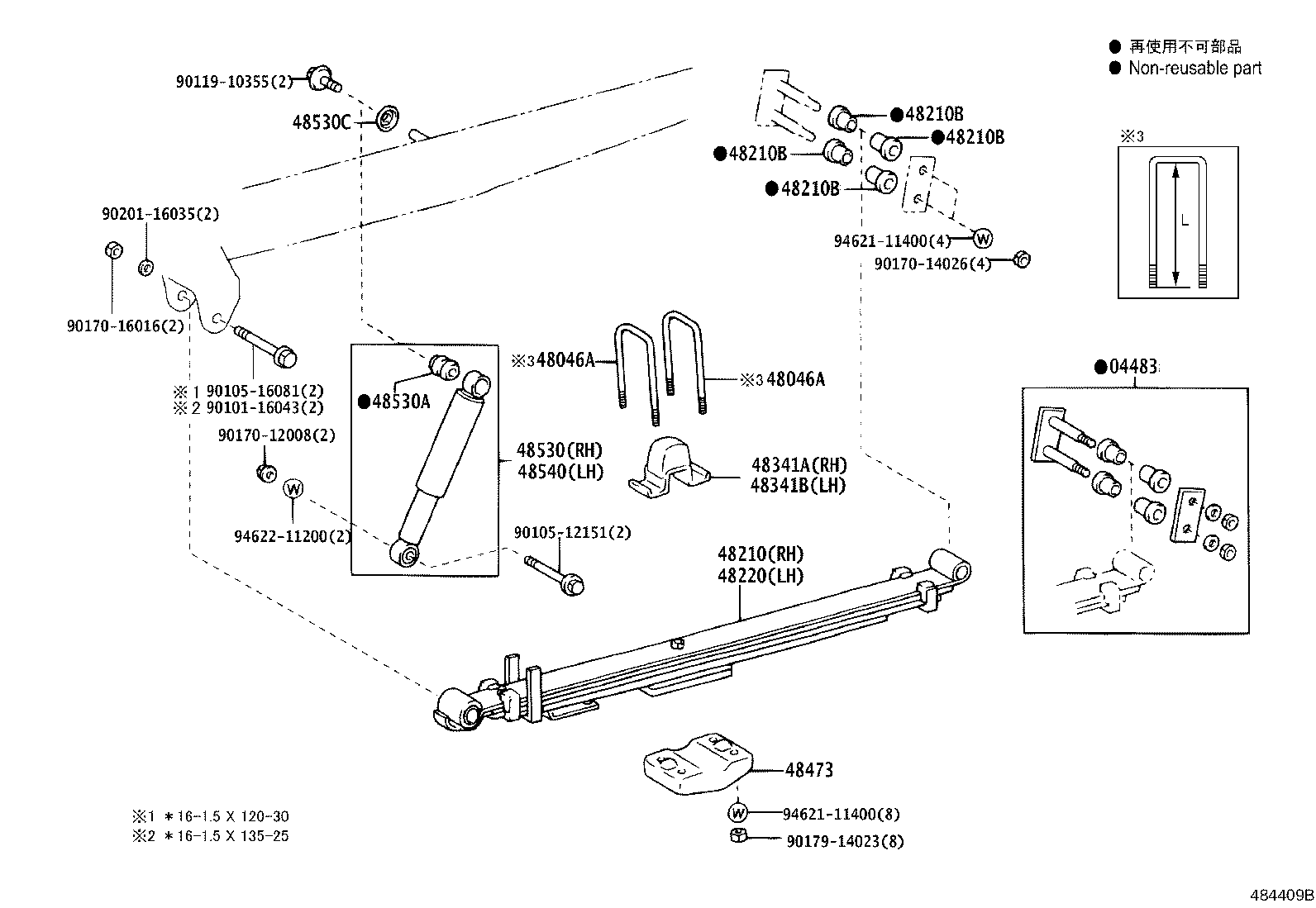

ILLUST NO. 1 OF 3(0107- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-25030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14014 |
LY270,RZY220..1T..CBU 長さ=170,ｼﾖｳﾎﾞｳ ｼﾖｳ |
4 | ||
| 90117-14035 |
KDY22#..(T2,TW1)..(15T,1T);KDY23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT;KDY22#,28#,LY230,RZY230,TRY230..(T3,TW3)..(125T,1T)..(CBU,IV3);KDY23#,27#,LY220,270,280,RZY220,TRY220..(T3,TW1,TW3)..(125T,1T)..(CBU,IV3) 長さ=180 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14014 |
LY270,RZY220..1T..CBU 長さ=170,ｼﾖｳﾎﾞｳ ｼﾖｳ |
4 | ||
| 90117-14035 |
KDY22#..(T2,TW1)..(15T,1T);KDY23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT;KDY22#,28#,LY230,RZY230,TRY230..(T3,TW3)..(125T,1T)..(CBU,IV3);KDY23#,27#,LY220,270,280,RZY220,TRY220..(T3,TW1,TW3)..(125T,1T)..(CBU,IV3) 長さ=180 |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E540 |

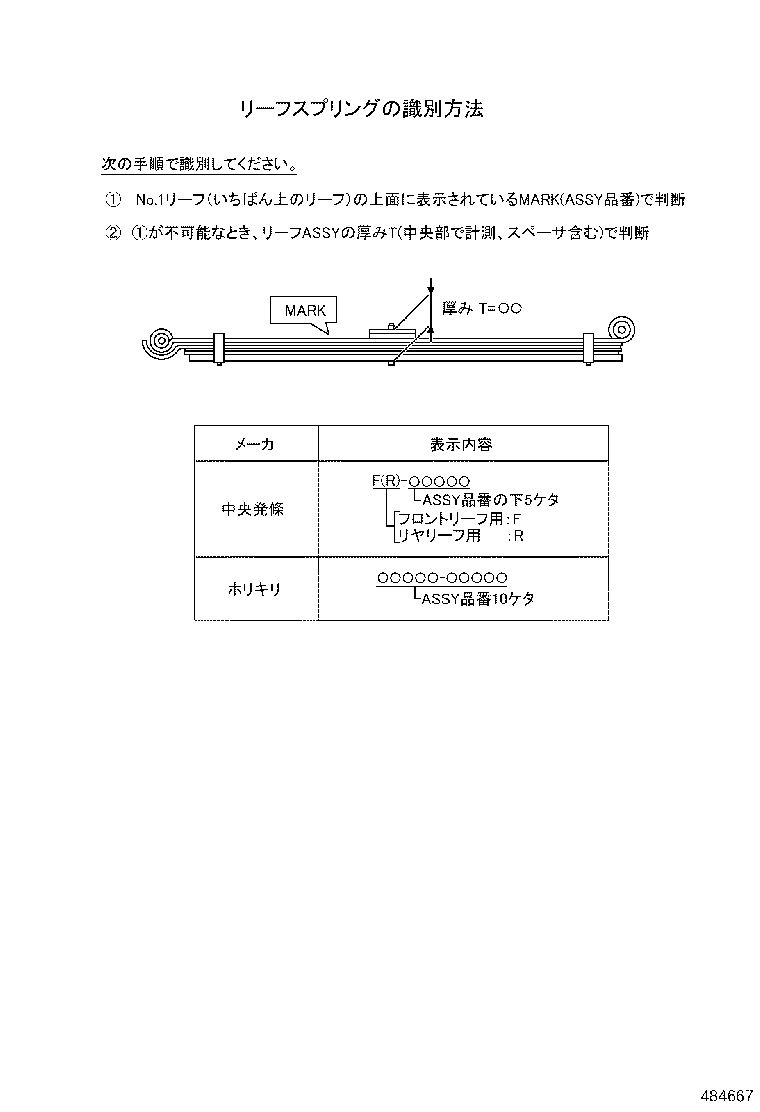

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T 4枚ﾘｰﾌ |
1 | ||
| 48210-2E410 |
KDY270,LY270,RZY220..1T..CBU 4枚ﾘｰﾌ,ｼﾖｳﾎﾞｳ ｼﾖｳ |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
8 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E540 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..1T 4枚ﾘｰﾌ |
1 | ||
| 48210-2E410 |
KDY270,LY270,RZY220..1T..CBU 4枚ﾘｰﾌ,ｼﾖｳﾎﾞｳ ｼﾖｳ |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-25050 |
KDY28#,LY230,RZY230,TRY230..(T3,TW3)..(125T,1T)..(CBU,IV3);KDY22#,23#,27#,LY220,270,280,RZY220,TRY220..(T3,TW1,TW3)..(125T,1T)..(CBU,IV3) |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-25050 |
KDY28#,LY230,RZY230,TRY230..(T3,TW3)..(125T,1T)..(CBU,IV3);KDY22#,23#,27#,LY220,270,280,RZY220,TRY220..(T3,TW1,TW3)..(125T,1T)..(CBU,IV3) |
1 | ||
| 48473 - SEAT, REAR SPRING U BOLT | ||||
| 48473-25080 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-29535 |
KDY270,LY270,RZY220..1T..CBU ﾏｰｸ 48531−25210,ｼﾖｳﾎﾞｳ ｼﾖｳ |
1 | ||
| 48531-80232 |
KDY28#,LY230,TRY230..TW1;KDY23#,28#,LY230,280,TRY230..(T3,TW1)..(12T,15T);KDY22#,27#,LY220,270,RZY220,230,TRY220..(T3,TW1)..(CBU,IV3) ﾏｰｸ 48531−25280 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..ST |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80232 |
KDY28#,LY230,TRY230..TW1;KDY23#,28#,LY230,280,TRY230..(T3,TW1)..(12T,15T);KDY22#,27#,LY220,270,RZY220,230,TRY220..(T3,TW1)..(CBU,IV3) ﾏｰｸ 48531−25280 |
1 | ||
| 48531-29535 |
KDY270,LY270,RZY220..1T..CBU ﾏｰｸ 48531−25210,ｼﾖｳﾎﾞｳ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90101-16043 | ||||
| 90105-12151 | ||||
| 90105-16081 | ||||
| 90119-10355 | ||||
| 90170-12008 | ||||
| 90170-14026 | ||||
| 90170-16016 | ||||
| 90179-14023 | ||||
| 90201-16035 | ||||
| 94621-11400 | ||||
| 94622-11200 | ||||
ILLUST NO. 3 OF 3(0107- )
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
