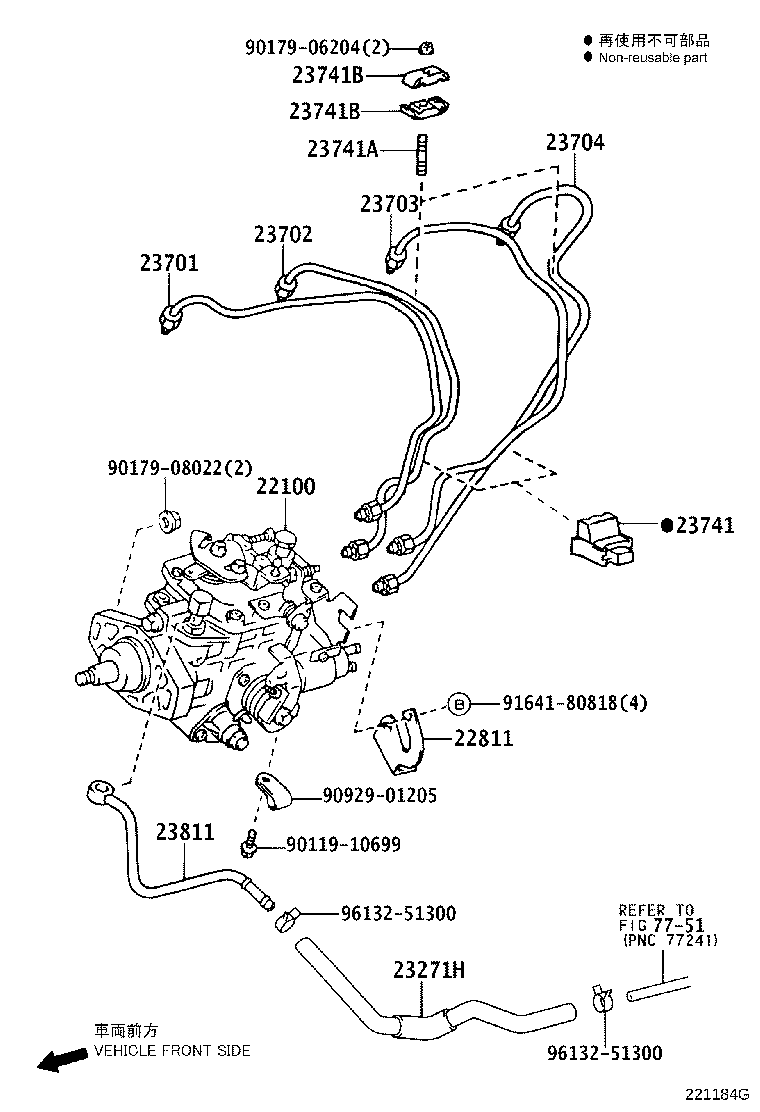

Toyota Dyna/toyoace LY270 INJECTION PUMP ASSEMBLY

Part #	Description	Period	Qty
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-5D280	5L..LY270,280,290..MTM	07/2001 - 08/2004	1
22811 - STAY, INJECTION PUMP, NO.1
22811-54042	5L..LY220,230,240,270,280,290	09/2002 - 08/2004	1
23271H - HOSE, FUEL, NO.1
23271-54190	5L..LY220,230,240,270,280,290	07/2001 - 08/2004	1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54140	5L..LY220,230,240,270,280,290	07/2001 - 08/2004	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54140	5L..LY220,230,240,270,280,290	07/2001 - 08/2004	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54100	5L..LY220,230,240,270,280,290	07/2001 - 08/2004	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54100	5L..LY220,230,240,270,280,290	07/2001 - 08/2004	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54030	5L..LY220,230,240,270,280,290	07/2001 - 08/2004	2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06095	5L..LY220,230,240,270,280,290	07/2001 - 08/2004	2
23741B - CLAMP, INJECTION PIPE
23741-56010	5L..LY220,230,240,270,280,290	07/2001 - 08/2004	4
23741B - CLAMP, INJECTION PIPE
23741-56010	5L..LY220,230,240,270,280,290	07/2001 - 08/2004	4
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54160	5L..LY220,230,240,270,280,290	07/2001 - 08/2004	1
Common parts
90119-10699
90179-06204
90179-08022
90929-01205
91641-80818
96132-51300
Linked diagrams
7751

LY270-PSMBS (2001)
