LY240V-RRMGS (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

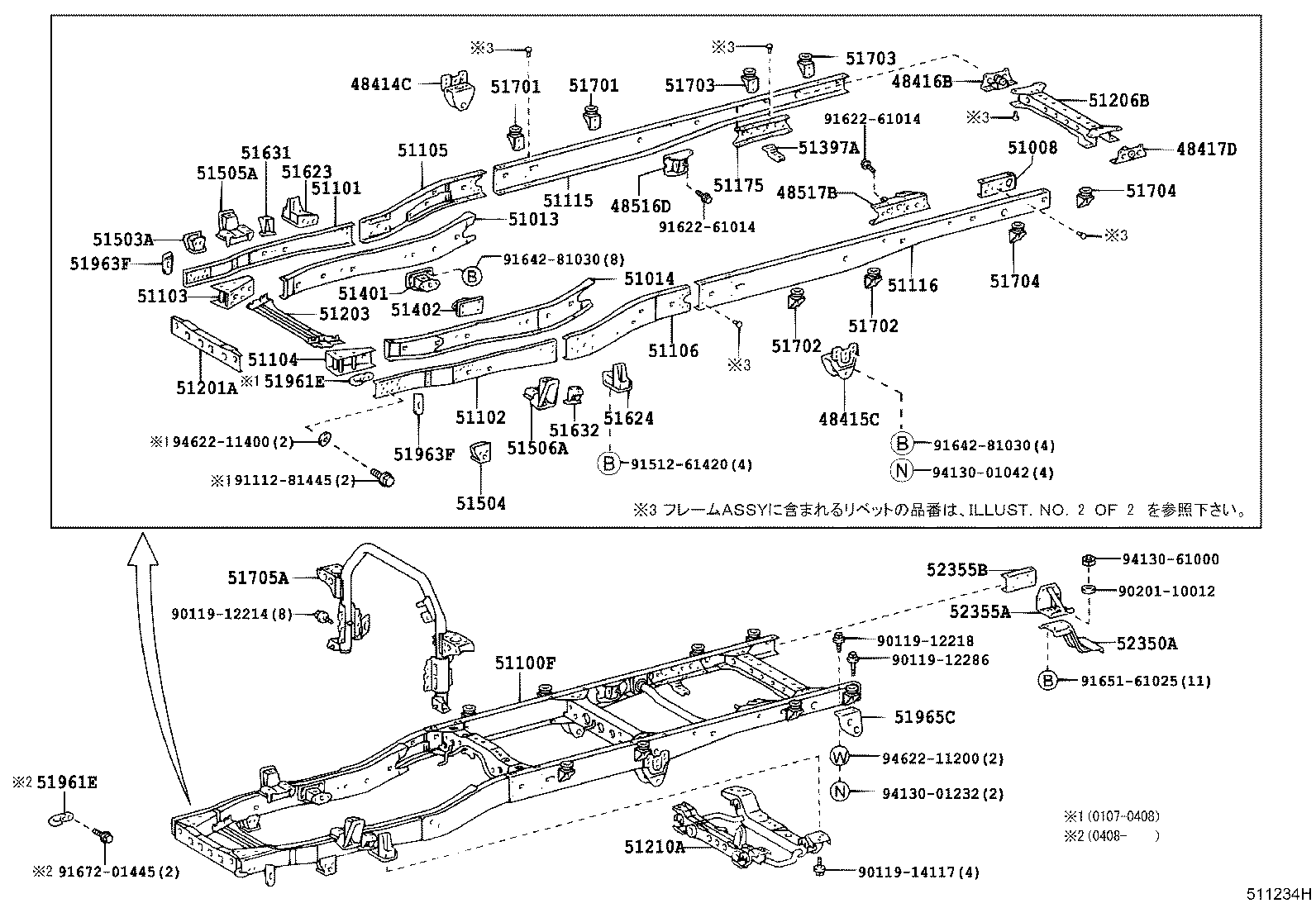

ILLUST NO. 1 OF 2(0107- )KDY24#,290,LY240,290

Click highlighted areas on diagram

ﾌﾚｰﾑ

diagram 48414C 48415C 48416B 48417D 48516D 48517B 51008 51013 51014 51100F 51101 51102 51103 51104 51105 51106 51115 51116 51175 51201A 51203 51206B 51210A 51397A 51401 51402 51503A 51504 51505A 51506A 51623 51624 51631 51632 51701 51701 51702 51702 51703 51703 51704 51704 51705A 51961E 51961E 51963F 51963F 51965C 52350A 52355A 52355B 9011912214 9011912218 9011912286 9011914117 9020110012 9111281445 9151261420 9162261014 9162261014 9164281030 9164281030 9165161025 9167201445 9413001042 9413001232 9413061000 9462211200 9462211400
Part # Description Qty Price
48414C - BRACKET, SPRING, NO.3 RH
48414-25110

RZY230..15T..WT;KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT

 1
48415C - BRACKET, SPRING, NO.3 LH
48414-25110

RZY230..15T..WT;KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT

 1
48416B - BRACKET, SPRING, NO.4 RH
48405-25030

RZY230..15T..WT;KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT

 1
48417D - BRACKET, SPRING, NO.4 LH
48405-25030

RZY230..15T..WT;KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-25070

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
51016-25040

KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT

ｱﾘ(ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ)

 1
51016-25050

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51008 - REINFORCEMENT SUB-ASSY, SIDE RAIL, LH
51008-25010

LY240,290

 1
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-25020

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-25060

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51100F - FRAME SUB-ASSY
51001-2E300

LY240,290

 1
51001-2E500

LY240,290

ｱﾘ(ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ)

 1
51101 - RAIL, FRONT FRAME SIDE, RH
51101-25020

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51102 - RAIL, FRONT FRAME SIDE, LH
51102-25020

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51103 - REINFORCEMENT SUB-ASSY, INNER CHANNEL, FRONT RH
51103-25010

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51104 - REINFORCEMENT SUB-ASSY, INNER CHANNEL, FRONT LH
51103-25010

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51105 - RAIL SUB-ASSY, CENTER FRAME, RH
51105-25010

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,TRY220,230..DCR,DSL,EFI

 1
51106 - RAIL SUB-ASSY, CENTER FRAME, LH
51106-25010

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51115 - RAIL, FRAME SIDE, REAR RH
51115-25110

KDY24#,290,LY240,290

 1
51116 - RAIL, FRAME SIDE, REAR LH
51116-25050

KDY24#,290,LY240,290

 1
51175 - REINFORCEMENT, SIDE RAIL, NO.3 RH
51175-25010

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51015-25040

KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT

ｱﾘ(ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ)

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-25100

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-25150

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6
51206-25150

RZY230..15T..WT;KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT

 1
51210A - MEMBER ASSY, FRONT SUSPENSION
51210-25010

KDY22#,23#,24#,LY220,230,240,RZY220,23#,TRY220,23#

 1
51397A - BRACKET, EXHAUST PIPE CLAMP, NO.3
51397-25030

RZY230..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-25190

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-25090

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51503A - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH
51503-25010

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51504 - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH
51504-25010

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM
51505-25020

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51506A - SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH
51506-25020

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51623 - BRACKET, FRONT SPRING BOUND STOPPER, RH
51603-25010

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51624 - BRACKET, FRONT SPRING BOUND STOPPER, LH
51604-25010

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51631 - STOPPER, FRONT SUSPENSION REBOUND, RH
51631-25010

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51632 - STOPPER, FRONT SUSPENSION REBOUND, LH
51631-25010

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-36050

LY240,290

 2
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-36050

LY240,290

 2
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-36050

LY240,290

 2
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-36050

LY240,290

 2
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51709-25010

LY240,290

 2
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51709-25010

LY240,290

 2
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51709-25010

LY240,290

 2
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51709-25010

LY240,290

 2
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-25060

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN

 1
51961E - HOOK, FRONT
51961-25040

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;LY220,230,240,270,280,290,TRY220,230..DSL,EFI

 1
51961E - HOOK, FRONT
51961-25040

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;LY220,230,240,270,280,290,TRY220,230..DSL,EFI

 1
51963F - HOOK, TRANSPORT
51963-25010

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 2
51963F - HOOK, TRANSPORT
51963-25010

RZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281

 2
51965C - HOOK, REAR
51965-25030

KDY24#,290,LY240,290

 1
52350A - STEP ASSY, BACK
52350-37050

LY240,290

 1
52355A - BRACKET, BACK STEP
52358-25010

LY240,290

 1
52355B - BRACKET, BACK STEP FRAME, INNER RH
52367-25020

LY240,290

 1
Common parts
90119-12214
90119-12218
90119-12286
90119-14117
90201-10012
91112-81445
91512-61420
91622-61014
91642-81030
91651-61025
91672-01445
94130-01042
94130-01232
94130-61000
94622-11200
94622-11400
