LY230-TQPGC (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 3RZFPE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )3RZFPE..LY230,280

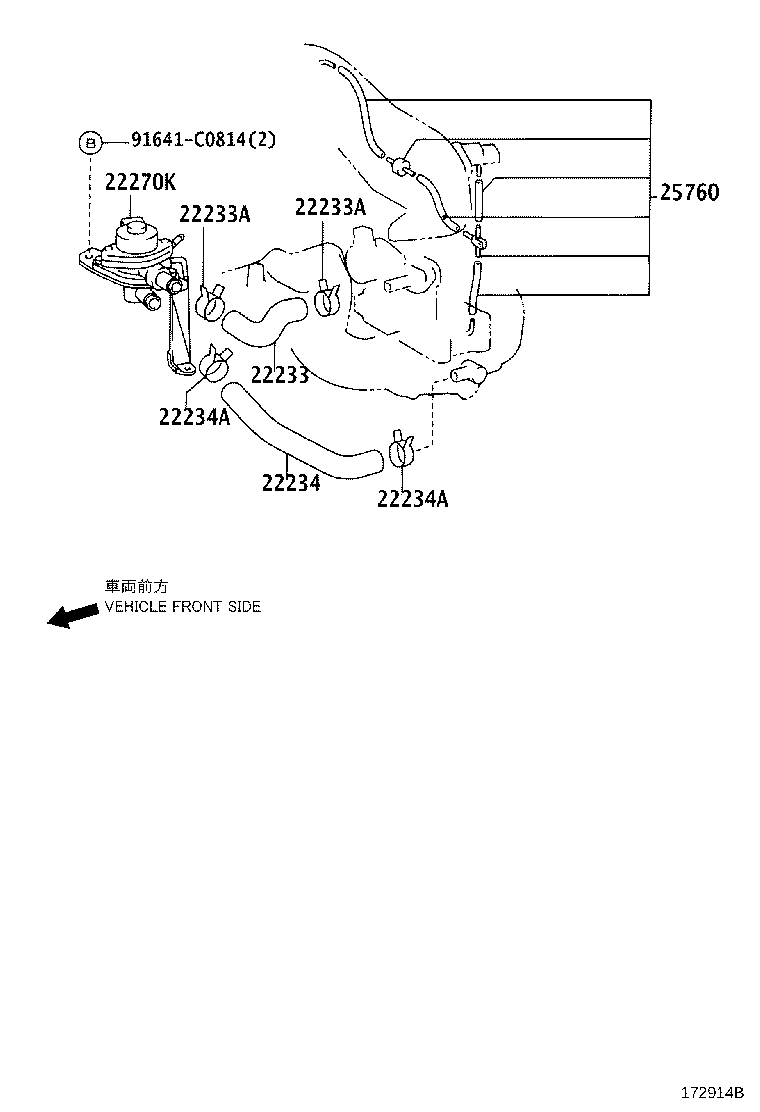

Click highlighted areas on diagram

diagram 22233 22233A 22233A 22234 22234A 22234A 22270K 25760 91641C0814
Part # Description Qty Price
22233 - HOSE, LPG AUXILIARY AIR VALVE, NO.1
22233-75010

3RZFPE..LY230,280

 1
22233A - CLIP(FOR LPG AUXILIARY AIR VALVE NO.1)
96134-52600

3RZFPE..LY230,280

 2
22233A - CLIP(FOR LPG AUXILIARY AIR VALVE NO.1)
96134-52600

3RZFPE..LY230,280

 2
22234 - HOSE, LPG AUXILIARY AIR VALVE, NO.2
22234-75010

3RZFPE..LY230,280

 1
22234A - CLIP(FOR LPG AUXILIARY AIR VALVE NO.2)
90467-31003

3RZFPE..LY230,280

 2
22234A - CLIP(FOR LPG AUXILIARY AIR VALVE NO.2)
90467-31003

3RZFPE..LY230,280

 2
22270K - VALVE ASSY, LPG IDLE SPEED CONTROL
22270-75061

3RZFPE..LY230,280

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-75010

3RZFPE..LY230,280

 1
Common parts
91641-C0814
