LY230-TQMGC3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 3RZFPE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0107- )LY230,280..LPG ; (0308- )RZY231,281..ATM

Click highlighted areas on diagram

A443E,A443F

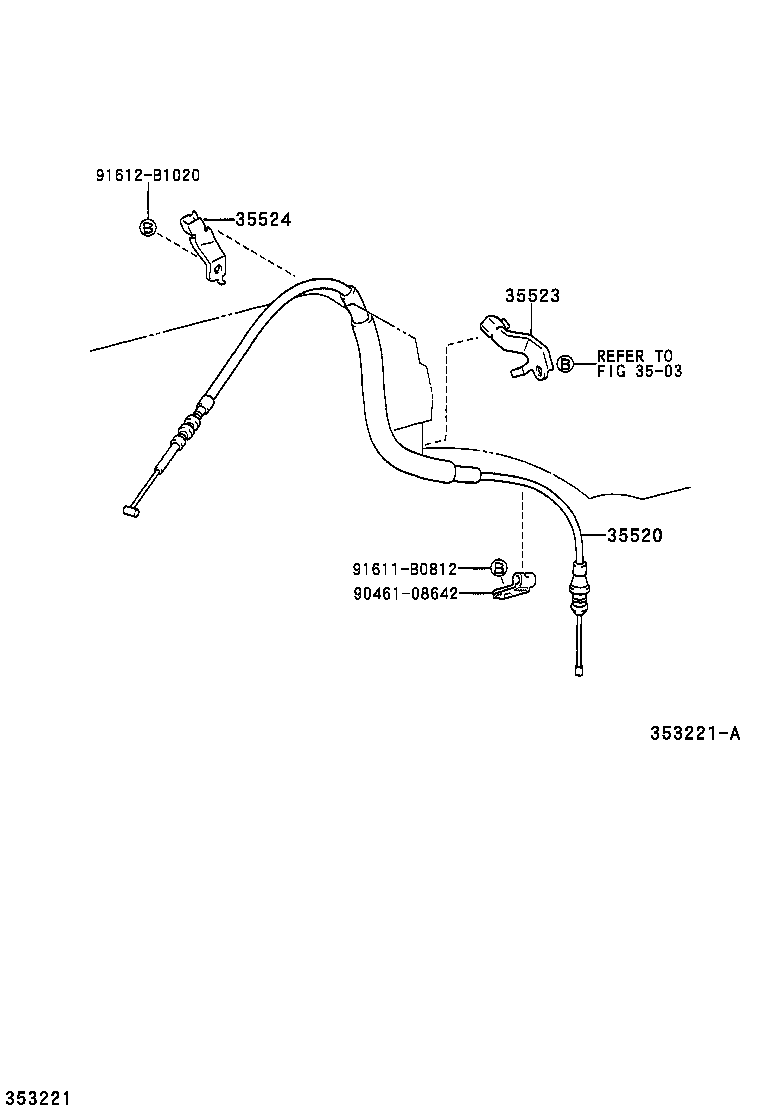

diagram 3503 35520 35523 35524 9046108642 91611B0812 91612B1020
Part # Description Qty Price
Common parts
90461-08642
91611-B0812
91612-B1020
Linked diagrams
3503
