LY230-TQMGC3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 3RZFPE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0708)3RZFPE

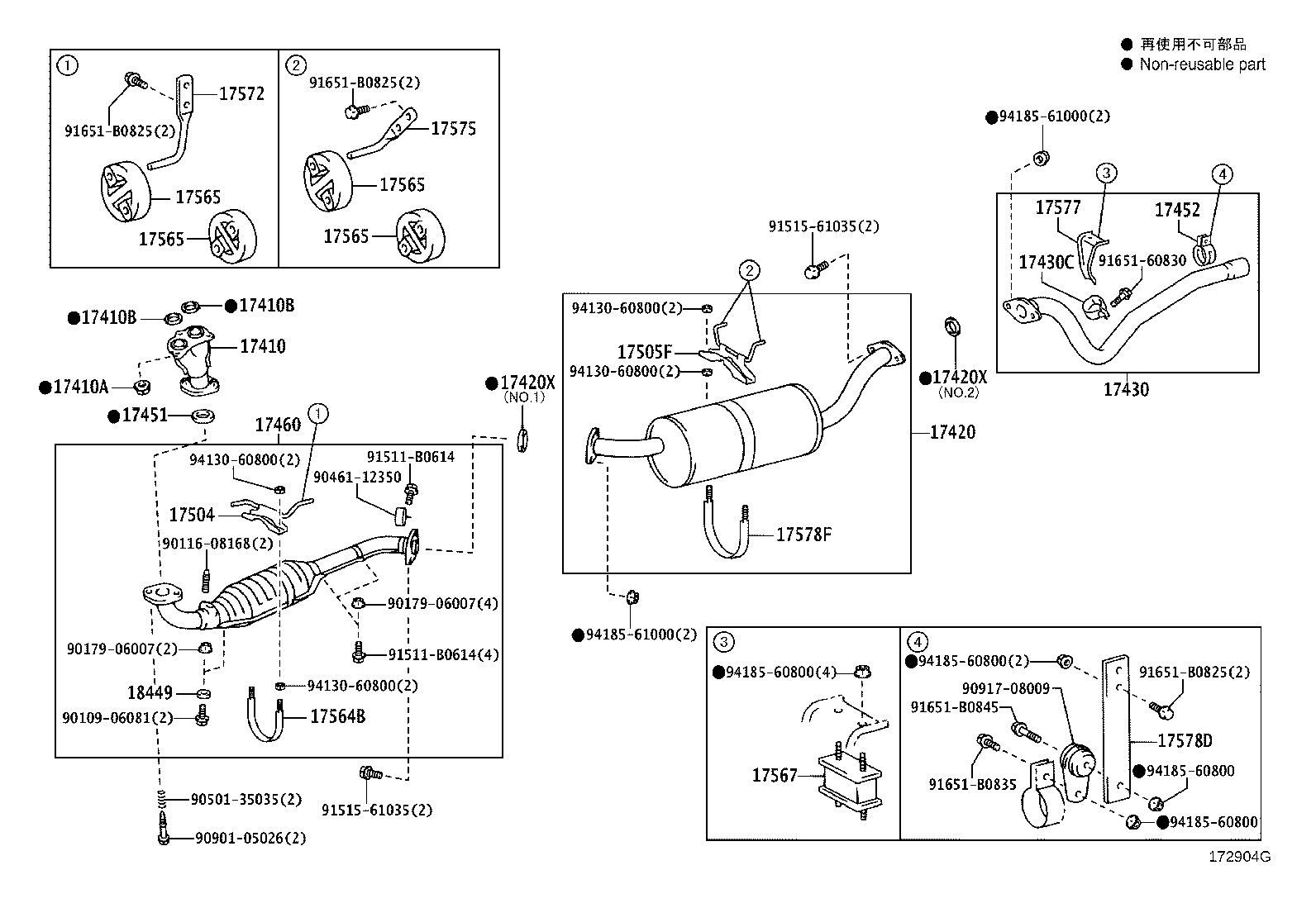

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17420 17420X 17420X 17430 17430C 17451 17452 17460 17504 17505F 17564B 17565 17565 17565 17565 17567 17572 17575 17577 17578D 17578F 18449 9010906081 9011608168 9017906007 9017906007 9046112350 9050135035 9090105026 9091708009 91511B0614 91511B0614 9151561035 9151561035 9165160830 91651B0825 91651B0825 91651B0825 91651B0835 91651B0845 9413060800 9413060800 9413060800 9413060800 9418560800 9418560800 9418560800 9418560800 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-75330

3RZFPE..LY230,280,RZY231,281

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

5L..LY230..TW1;5L..LY220..125T..WT;5L..LY230..TB..125T..ST;1RZE,3RZFPE..LY230,280,RZY220,230

 3
17410B - GASKET, EXHAUST PIPE
90917-06061

3RZFPE..LY230,280,RZY231,281

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

3RZFPE..LY230,280,RZY231,281

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-75290

1RZE,3RZFPE..LY230,280,RZY220,230

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06078

5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

NO.2

 1
90917-06045

5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

NO.1

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06078

5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

NO.2

 1
90917-06045

5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

NO.1

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-75600

2KDFTV,1RZE,3RZFPE,1TR#..KDY220,230,270,280,LY230,280,RZY220,23#,281,TRY220,23#,281

 1
17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT)
90461-32007

2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17451 - GASKET, EXHAUST PIPE
17451-16030

5L,1RZE,3RZFPE..LY220,230,240,270,280,290,RZY220,230

 1
17452 - CLAMP, EXHAUST PIPE
17452-54011

2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-75050

3RZFPE..LY230,280

 1
17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER
17504-75020

3RZFPE..LY230,280

 1
17505F - SUPPORT SUB-ASSY, EXHAUST PIPE
17505-54240

2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17564B - SUPPORT, CATALYTIC CONVERTER
17564-75080

3RZFPE..LY230,280

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290

2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290

2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290

2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290

2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 4
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-35010

1KDFTV,2KDFTV..KDY22#;1KDFTV,2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-54270

2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-71050

1KDFTV,2KDFTV,5L,1RZE,3RZFPE..KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-54050

2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-54020

1KDFTV,2KDFTV..KDY22#;1KDFTV,2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
17578F - CLAMP, PIPE(FOR CENTER PIPE)
17578-54030

2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
18449 - SPACER, CONVERTER PROTECTOR
18449-74010

3RZFPE..LY230,280

 2
18449-74010

3RZFPE..LY230,280

 2
Common parts
90109-06081
90116-08168
90179-06007
90461-12350
90501-35035
90901-05026
90917-08009
91511-B0614
91515-61035
91651-60830
91651-B0825
91651-B0835
91651-B0845
94130-60800
94185-60800
94185-61000
