LY230-TLPDS (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )LY220,230,280,RZY220,230,TRY220,230..TS..ATM

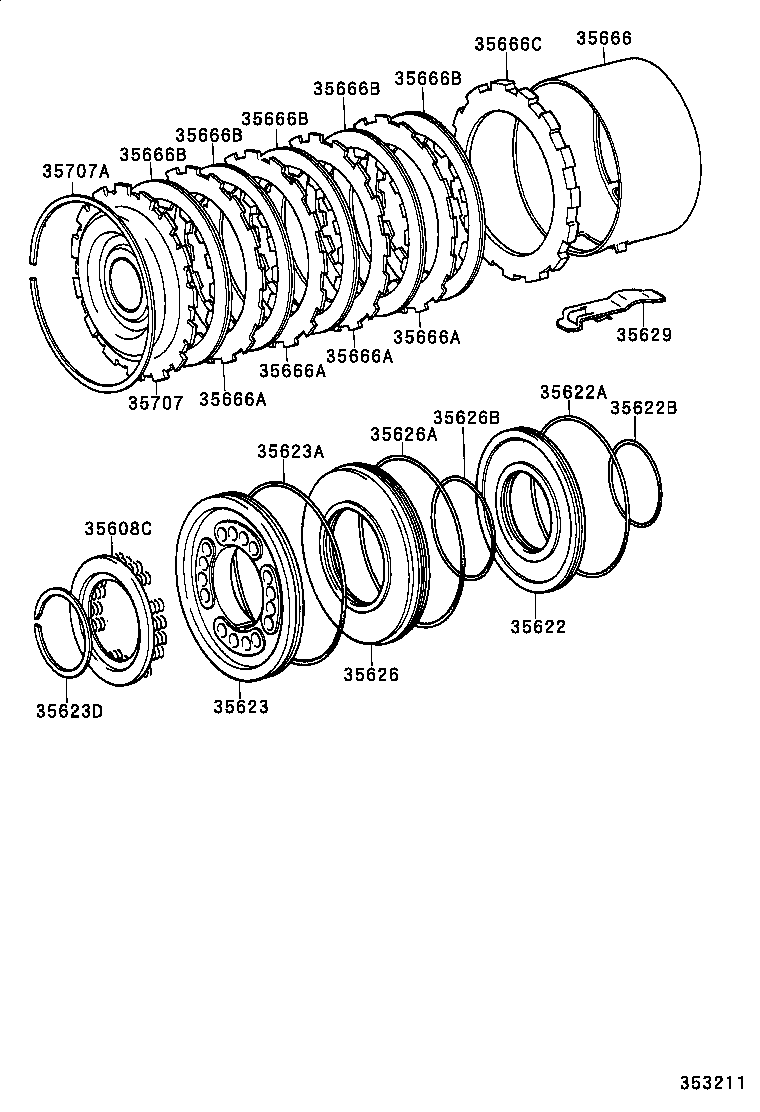

Click highlighted areas on diagram

A44DE,A44DF,A45DE

diagram 35608C 35622 35622A 35622B 35623 35623A 35623D 35626 35626A 35626B 35629 35666 35666A 35666A 35666A 35666A 35666B 35666B 35666B 35666B 35666B 35666C 35707 35707A
Part # Description Qty Price
35608C - SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN
35608-20020

TRY220,230..ATM..125T

 1
35608-20020

RZY220,230..ATM

 1
35608-20020

LY220,230,280..TS..ATM

 1
35622 - PISTON, BRAKE, NO.2
35622-22010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99084

KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST

 1
35622B - RING (FOR BRAKE PISTON INNER)
90301-56007

KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST

 1
35623 - PISTON, BRAKE, NO.3
35623-22010

TRY220,230..ATM..125T

 1
35623-22010

LY220,230,280..TS..ATM

 1
35623-22010

RZY220,230..ATM

 1
35623A - RING, O (FOR BRAKE PISTON NO.3 )
90301-99110

LY220,230,280..TS..ATM

 1
90301-99110

TRY220,230..ATM..125T

 1
90301-99110

RZY220,230..ATM

 1
35623D - RING, SHAFT SNAP (FOR BRAKE)
90520-52262

RZY220,230..ATM

 1
90520-52262

LY220,230,280..TS..ATM

 1
90520-52262

TRY220,230..ATM..125T

 1
35626 - SLEEVE, BRAKE REACTION
35626-22010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99109

TRY220,230..ATM..125T

 1
90301-99109

RZY220,230..ATM

 1
90301-99109

LY220,230,280..TS..ATM

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-67005

KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST

 1
35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER)
35629-22010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35666 - TUBE, BRAKE APPLY
35666-26020

LY220,230,280..TS..ATM

 1
35666-26020

RZY220,230..ATM

 1
35666-26020

TRY220,230..ATM..125T

 1
35666A - PLATE, CLUTCH (FOR BRAKE)
35647-22010

LY220,230,280..TS..ATM

 4
35647-22010

TRY220,230..ATM..125T

 4
35647-22010

RZY220,230..ATM

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35647-22010

LY220,230,280..TS..ATM

 4
35647-22010

TRY220,230..ATM..125T

 4
35647-22010

RZY220,230..ATM

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35647-22010

LY220,230,280..TS..ATM

 4
35647-22010

TRY220,230..ATM..125T

 4
35647-22010

RZY220,230..ATM

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35647-22010

LY220,230,280..TS..ATM

 4
35647-22010

TRY220,230..ATM..125T

 4
35647-22010

RZY220,230..ATM

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35677-26030

RZY220,230..ATM

 5
35677-25010

TRY220,230..ATM..125T

 5
35677-26030

LY220,230,280..TS..ATM

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35677-26030

RZY220,230..ATM

 5
35677-25010

TRY220,230..ATM..125T

 5
35677-26030

LY220,230,280..TS..ATM

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35677-26030

RZY220,230..ATM

 5
35677-25010

TRY220,230..ATM..125T

 5
35677-26030

LY220,230,280..TS..ATM

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35677-26030

RZY220,230..ATM

 5
35677-25010

TRY220,230..ATM..125T

 5
35677-26030

LY220,230,280..TS..ATM

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35677-26030

RZY220,230..ATM

 5
35677-25010

TRY220,230..ATM..125T

 5
35677-26030

LY220,230,280..TS..ATM

 5
35666C - PLATE, CLUTCH PRESSURE (FOR BRAKE)
35639-22010

RZY220,230..ATM

 1
35639-22010

LY220,230,280..TS..ATM

 1
35639-22040

TRY220,230..ATM..125T

厚さ=3.75

 1
35639-22020

TRY220,230..ATM..125T

厚さ=3.25

 1
35639-22030

TRY220,230..ATM..125T

厚さ=3.5

 1
35639-22010

TRY220,230..ATM..125T

厚さ=3.05

 1
35639-22060

TRY220,230..ATM..125T

厚さ=4.25

 1
35639-22050

TRY220,230..ATM..125T

厚さ=4.0

 1
35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-30040

LY220,230,280..TS..ATM

 1
35707-30020

TRY220,230..ATM..125T

 1
35707-30040

RZY220,230..ATM

 1
35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)
90521-99140

LY220,230,280..TS..ATM

 1
90521-99140

RZY220,230..ATM

 1
90521-99140

TRY220,230..ATM..125T

 1
