LY230-TLMDS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )5L..LY220,230,240

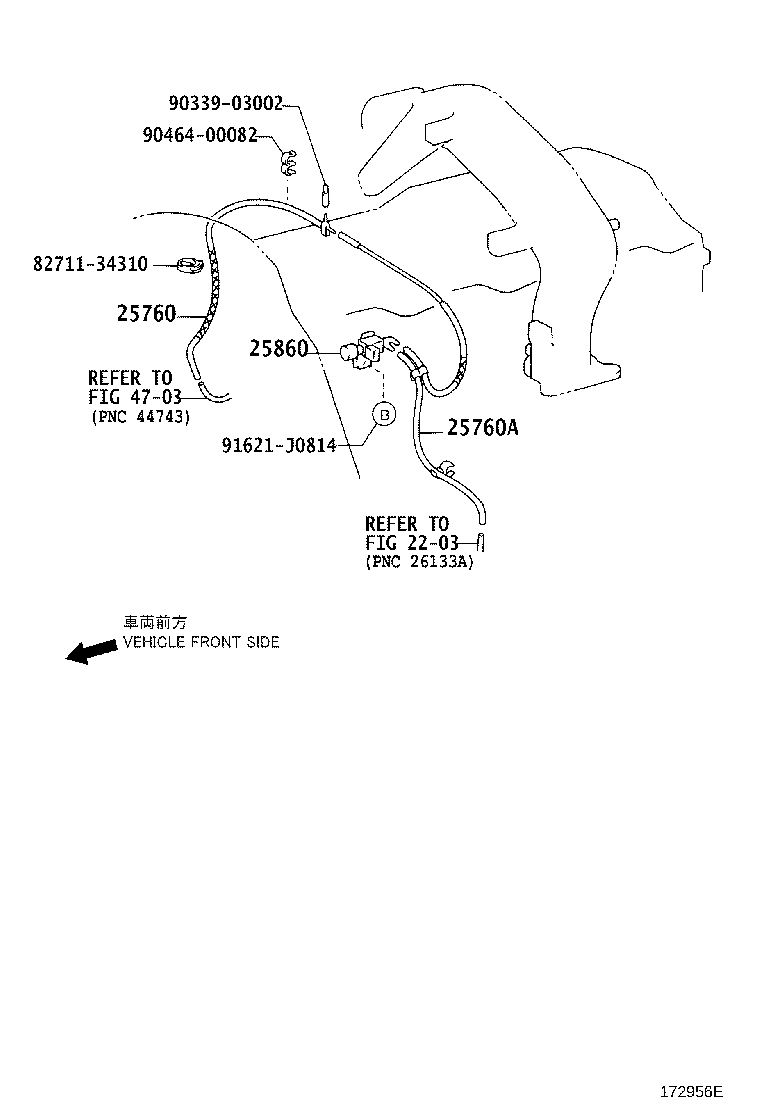

Click highlighted areas on diagram

diagram 2203 25760 25760A 25860 4703 8271134310 9033903002 9046400082 91621J0814
Part # Description Qty Price
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-54270

5L..LY220,230,240,270,280,290

 1
25760A - HOSE ASSY, VACUUM TRANSMITTING
25760-54350

5L..LY220,230,240

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-54300

5L..LY220,230,240,270,280,290

 1
Common parts
82711-34310
90339-03002
90464-00082
91621-J0814
Linked diagrams
2203
4703

(0108- )5L..LY240..03S ; (0108- )5L..LY220..15T..IV3 ; (0108- )5L..LY230..

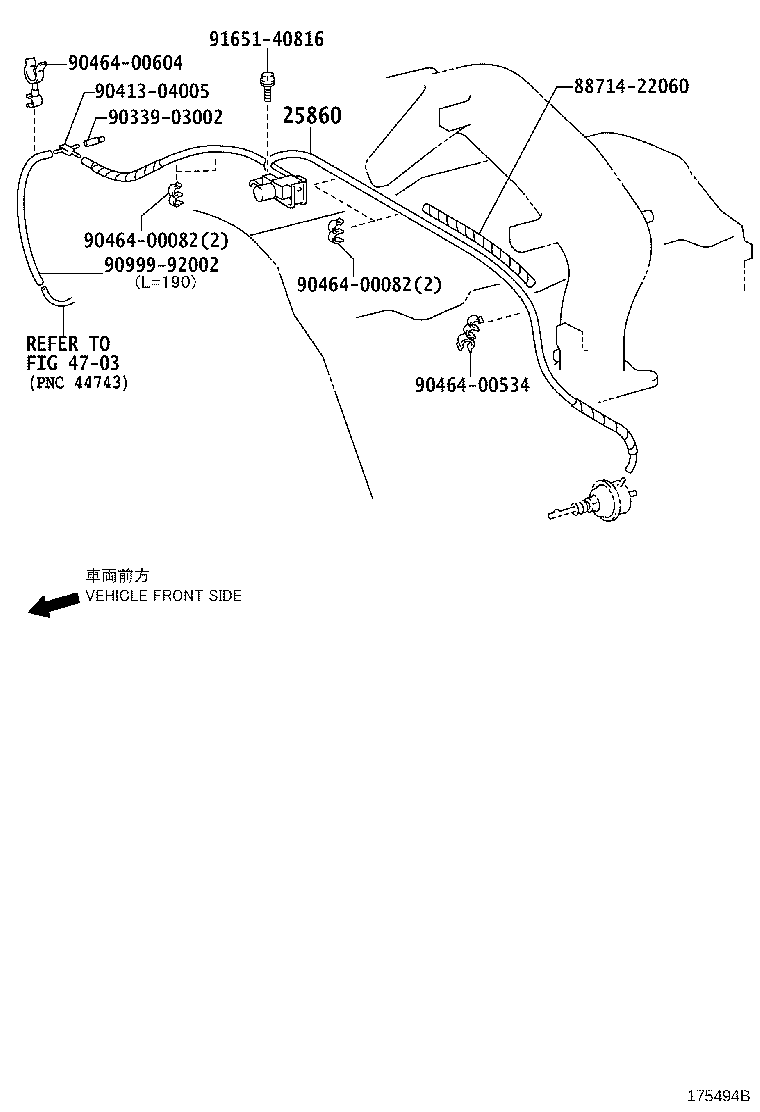

Click highlighted areas on diagram

ﾚｲﾄｳｼｬ

diagram 25860 4703 8871422060 9033903002 9041304005 9046400082 9046400082 9046400534 9046400604 9099992002 9165140816
Part # Description Qty Price
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-54300

5L..LY220,230,240,270,280,290

 1
25860-54300

5L..LY220,230,240,270,280,290

 1
Common parts
88714-22060
90339-03002
90413-04005
90464-00082
90464-00534
90464-00604
90999-92002
91651-40816
Linked diagrams
4703
