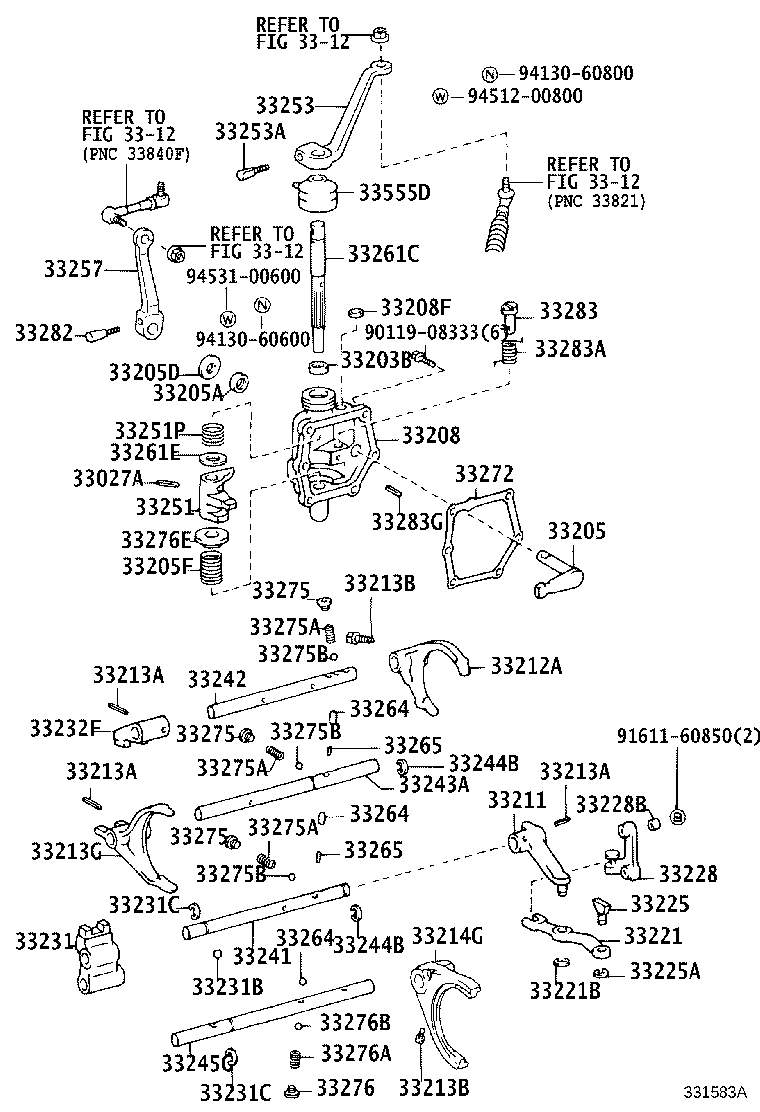

LY230-TLMDS (2001)
Toyota Dyna/Toyoace
(0107- )LY220,RZY220,TRY220..MTM..ST ; (0107-)LY230,RZY230,TRY230..T2,TW3..M
G54
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33027A - PIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET) | ||||
| 90254-05001 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-18002 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90311-20006 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-25040 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33262-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
LY280..MTM..DSL;TRY220..MTM..ST;TRY230..(T2,TW3)..TS..MTM..ST;KDY220,230,240,270,280,290,LY220,230,240,270,290,RZY220,23#,281..MTM |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13029 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 外径=28 |
1 | ||
| 94612-11300 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 90501-15038 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90501-21038 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33207-25010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY220,230,240,270,280,290,LY240,270,290,RZY231,281..MTM |
1 | ||
| 33271-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 96411-41200 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-35050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33211-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-25011 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33212-26030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90105-06143 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90105-06143 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-25020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33220-26010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-26020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33230-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33221-35050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-01000 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-35030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) | ||||
| 96160-00800 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33228-35030 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90253-11001 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
2 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
1 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12006 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12006 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-28011 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33244-26020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-26020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33242-26030 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-26050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33243-35051 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12006 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12006 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-35090 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33245-26010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-28030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33251-26050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-21037 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90501-16178 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-25060 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33253-25070 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33281-16020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-25040 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33257-25050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-35110 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY230,RZY230,TRY230..MTM..(12T,15T,175T)..(DSL,EFI);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33261-28030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33261E - WASHER (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90201-15023 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90360-10003 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST 外径=9.52,ｽﾁｰﾙ |
1 | ||
| 90361-10002 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=21.6,PIN |
1 | ||
| 90250-05029 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=11.5,外径=4.8 |
1 | ||
| 90361-10003 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=13.6,外径=9.5 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90360-10003 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST 外径=9.52,ｽﾁｰﾙ |
1 | ||
| 90361-10002 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=21.6,PIN |
1 | ||
| 90250-05029 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=11.5,外径=4.8 |
1 | ||
| 90361-10003 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=13.6,外径=9.5 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90360-10003 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST 外径=9.52,ｽﾁｰﾙ |
1 | ||
| 90361-10002 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=21.6,PIN |
1 | ||
| 90250-05029 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=11.5,外径=4.8 |
1 | ||
| 90361-10003 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=13.6,外径=9.5 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=11.1,外径=4.8 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=11.1,外径=4.8 |
2 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12008 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-14123 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
1 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-28011 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33276-25021 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33282 - PIN, LEVER LOCK, NO.2 | ||||
| 33282-35010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33282-57010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-27010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33283-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90504-10008 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90504-10009 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04015 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33555D - BOOT, SHIFT LEVER | ||||
| 33555-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33555-25020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY230,RZY230,TRY230..MTM..(12T,15T,175T)..(DSL,EFI);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 91611-60850 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94512-00800 | ||||
| 94531-00600 | ||||
| Linked diagrams | ||||
| 3312 | ||||
(0107-1310)KDY22#,23#,24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281..MTM
R351,R351F,R352F,R451,R452,R453
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33027A - PIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET) | ||||
| 90254-05001 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
1 | ||
| 90254-05001 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-18002 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90311-18002 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90311-20006 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90311-20006 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-25040 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33262-25040 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33262-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33262-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
LY280..MTM..DSL;TRY220..MTM..ST;TRY230..(T2,TW3)..TS..MTM..ST;KDY220,230,240,270,280,290,LY220,230,240,270,290,RZY220,23#,281..MTM |
1 | ||
| 90313-13001 |
LY280..MTM..DSL;TRY220..MTM..ST;TRY230..(T2,TW3)..TS..MTM..ST;KDY220,230,240,270,280,290,LY220,230,240,270,290,RZY220,23#,281..MTM |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13029 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 外径=28 |
1 | ||
| 90201-13029 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 外径=28 |
1 | ||
| 94612-11300 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 94612-11300 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 90501-15038 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90501-15038 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90501-21038 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90501-21038 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33207-25010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY220,230,240,270,280,290,LY240,270,290,RZY231,281..MTM |
1 | ||
| 33207-25010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY220,230,240,270,280,290,LY240,270,290,RZY231,281..MTM |
1 | ||
| 33271-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33271-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 96411-41200 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 96411-41200 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-35050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33211-35050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33211-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33211-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33211C - SPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN) | ||||
| 90501-12166 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90501-12166 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 90360-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 90360-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-25011 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33212-25011 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33212-26030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33212-26030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
3 | ||
| 90254-05001 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90105-06077 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90105-06143 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 90105-06143 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90105-06077 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90105-06143 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 90105-06143 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-25020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33213-25020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33220-26010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33220-26010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-26020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33214-26020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33230-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33230-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33221-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33221-35050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33221-35050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33221E - RING(FOR REVERSE SHIFT ARM END SHAFT) | ||||
| 96160-01000 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 96160-01000 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33228-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33228-35030 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33228-35030 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
3 | ||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
3 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
3 | ||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
3 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
3 | ||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
3 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33232-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33232-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-28011 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33244-28011 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33244-26020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33244-26020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-26020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33242-26020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33242-26030 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33242-26030 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-26050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33243-26050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33243-35051 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33243-35051 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-35090 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33245-35090 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33245-26010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33245-26010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-28030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33251-28030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33251-26050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33251-26050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-21037 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90501-21037 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90501-16178 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90501-16178 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-25060 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33253-25060 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33253-25070 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33253-25070 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-25040 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33257-25040 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33257-25050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33257-25050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-35110 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY230,RZY230,TRY230..MTM..(12T,15T,175T)..(DSL,EFI);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33261-35110 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY230,RZY230,TRY230..MTM..(12T,15T,175T)..(DSL,EFI);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33261-28030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33261-28030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90360-10003 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST 外径=9.52,ｽﾁｰﾙ |
1 | ||
| 90360-10003 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST 外径=9.52,ｽﾁｰﾙ |
1 | ||
| 90361-10002 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=21.6,PIN |
1 | ||
| 90361-10002 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=21.6,PIN |
1 | ||
| 90250-05029 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=11.5,外径=4.8 |
1 | ||
| 90250-05029 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=11.5,外径=4.8 |
1 | ||
| 90361-10003 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10003 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=13.6,外径=9.5 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 90361-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 90361-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 90361-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-28011 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33276-28011 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33276-25021 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33276-25021 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33282 - PIN, LEVER LOCK, NO.2 | ||||
| 33282-35010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33282-35010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33282-57010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33282-57010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33282B - PIN, LEVER LOCK (FOR SELECT OUTER LEVER) | ||||
| 33282-35010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33282-35010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-27010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33283-27010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33283-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33283-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90504-10008 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90504-10008 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90504-10009 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90504-10009 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04015 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 90254-04015 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33291A - STOPPER, SHIFT FORK SHAFT | ||||
| 33291-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 33291-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 33291A - STOPPER, SHIFT FORK SHAFT | ||||
| 33291-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 33291-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 33291B - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT STOPPER) | ||||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 33291B - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT STOPPER) | ||||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 33555D - BOOT, SHIFT LEVER | ||||
| 33555-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33555-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33555-25020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY230,RZY230,TRY230..MTM..(12T,15T,175T)..(DSL,EFI);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33555-25020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY230,RZY230,TRY230..MTM..(12T,15T,175T)..(DSL,EFI);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 91611-G0820 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94512-00800 | ||||
| 94531-00600 | ||||
| Linked diagrams | ||||
| 3312 | ||||
(0107-1310)LY220,RZY220,TRY220..WT ; (0107-1310)LY230,RZY230,TRY230..MTM..12T,15T,1
R351,R351F,R352F,R451,R452,R453
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33027A - PIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET) | ||||
| 90254-05001 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
1 | ||
| 90254-05001 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-18002 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90311-18002 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90311-20006 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90311-20006 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-25040 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33262-25040 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33262-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33262-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
LY280..MTM..DSL;TRY220..MTM..ST;TRY230..(T2,TW3)..TS..MTM..ST;KDY220,230,240,270,280,290,LY220,230,240,270,290,RZY220,23#,281..MTM |
1 | ||
| 90313-13001 |
LY280..MTM..DSL;TRY220..MTM..ST;TRY230..(T2,TW3)..TS..MTM..ST;KDY220,230,240,270,280,290,LY220,230,240,270,290,RZY220,23#,281..MTM |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13029 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 外径=28 |
1 | ||
| 90201-13029 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 外径=28 |
1 | ||
| 94612-11300 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 94612-11300 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 90501-15038 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90501-15038 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90501-21038 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90501-21038 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33207-25010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY220,230,240,270,280,290,LY240,270,290,RZY231,281..MTM |
1 | ||
| 33207-25010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY220,230,240,270,280,290,LY240,270,290,RZY231,281..MTM |
1 | ||
| 33271-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33271-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 96411-41200 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 96411-41200 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-35050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33211-35050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33211-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33211-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33211C - SPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN) | ||||
| 90501-12166 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90501-12166 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 90360-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 90360-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-25011 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33212-25011 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33212-26030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33212-26030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
3 | ||
| 90254-05001 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90105-06077 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90105-06143 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 90105-06143 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90105-06077 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90105-06143 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 90105-06143 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-25020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33213-25020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33220-26010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33220-26010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-26020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33214-26020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33230-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33230-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33221-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33221-35050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33221-35050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33221E - RING(FOR REVERSE SHIFT ARM END SHAFT) | ||||
| 96160-01000 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 96160-01000 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33228-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33228-35030 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33228-35030 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
3 | ||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
3 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
3 | ||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
3 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
3 | ||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
3 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33232-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33232-28020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-28011 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33244-28011 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33244-26020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33244-26020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-26020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33242-26020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33242-26030 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33242-26030 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 90520-12003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
4 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-26050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33243-26050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33243-35051 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33243-35051 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-35090 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33245-35090 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33245-26010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33245-26010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-28030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33251-28030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33251-26050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33251-26050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-21037 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90501-21037 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90501-16178 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90501-16178 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-25060 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33253-25060 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33253-25070 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33253-25070 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-25040 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33257-25040 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33257-25050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33257-25050 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-35110 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY230,RZY230,TRY230..MTM..(12T,15T,175T)..(DSL,EFI);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33261-35110 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY230,RZY230,TRY230..MTM..(12T,15T,175T)..(DSL,EFI);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33261-28030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33261-28030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90360-10003 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST 外径=9.52,ｽﾁｰﾙ |
1 | ||
| 90360-10003 |
RZY220,TRY220..MTM..ST;LY220,230..T2..MTM..125T..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST 外径=9.52,ｽﾁｰﾙ |
1 | ||
| 90361-10002 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=21.6,PIN |
1 | ||
| 90361-10002 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=21.6,PIN |
1 | ||
| 90250-05029 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=11.5,外径=4.8 |
1 | ||
| 90250-05029 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=11.5,外径=4.8 |
1 | ||
| 90361-10003 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10003 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=13.6,外径=9.5 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 90361-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 90361-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 90361-10003 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 90341-12008 |
KDY221..T3..TB..MTM;KDY231..TS..MTM..125T..WT;LY220,RZY220,TRY220..MTM..ST;LY230,RZY230..(T2,TW3)..MTM..(125T,1T);TRY230..(T2,TW2,TW3)..TS..MTM..(125T,1T) 外径=18 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-16143 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=33.8 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 90501-14132 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=31 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 90360-10003 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-28011 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33276-28011 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33276-25021 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33276-25021 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33282 - PIN, LEVER LOCK, NO.2 | ||||
| 33282-35010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33282-35010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33282-57010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33282-57010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33282B - PIN, LEVER LOCK (FOR SELECT OUTER LEVER) | ||||
| 33282-35010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33282-35010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-27010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33283-27010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33283-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33283-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90504-10008 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90504-10008 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90504-10009 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 90504-10009 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04015 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 90254-04015 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33291A - STOPPER, SHIFT FORK SHAFT | ||||
| 33291-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 33291-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 33291A - STOPPER, SHIFT FORK SHAFT | ||||
| 33291-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 33291-26010 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 33291B - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT STOPPER) | ||||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 33291B - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT STOPPER) | ||||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 90254-05001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
2 | ||
| 33555D - BOOT, SHIFT LEVER | ||||
| 33555-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33555-28010 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33555-25020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY230,RZY230,TRY230..MTM..(12T,15T,175T)..(DSL,EFI);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33555-25020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY230,RZY230,TRY230..MTM..(12T,15T,175T)..(DSL,EFI);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 91611-G0820 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94512-00800 | ||||
| 94531-00600 | ||||
| Linked diagrams | ||||
| 3312 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
