LY230-TGMFS (2001)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 2(0107-0308)RZY220,230

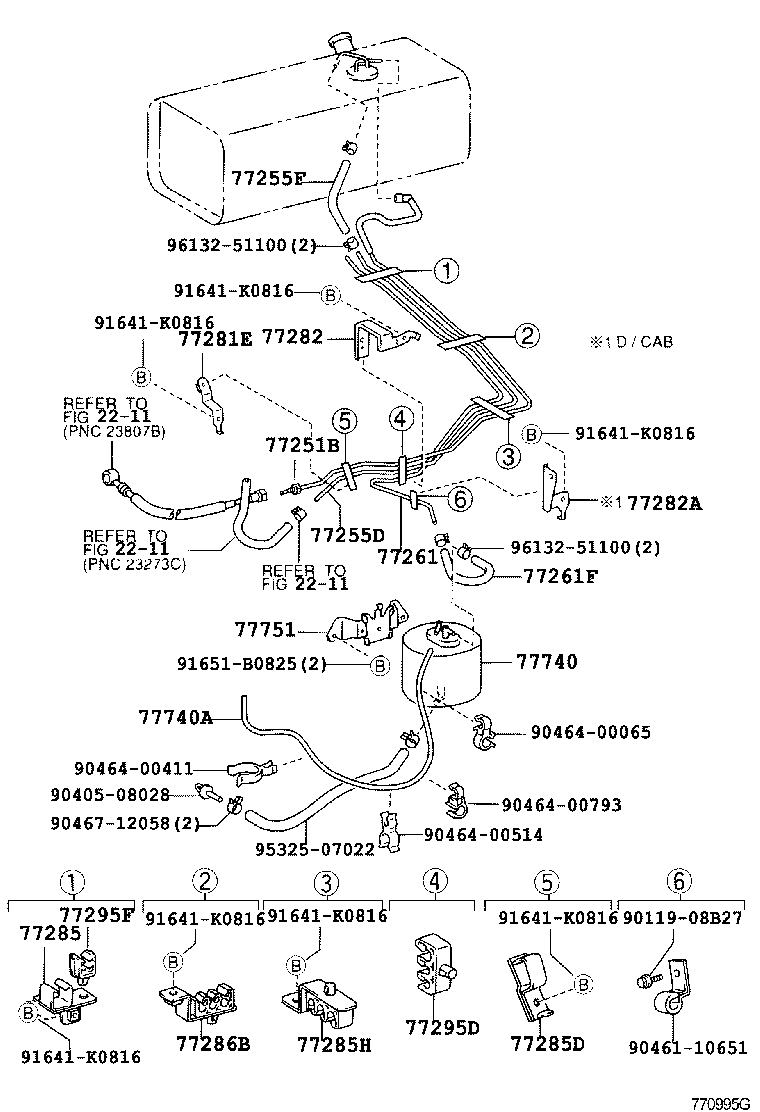

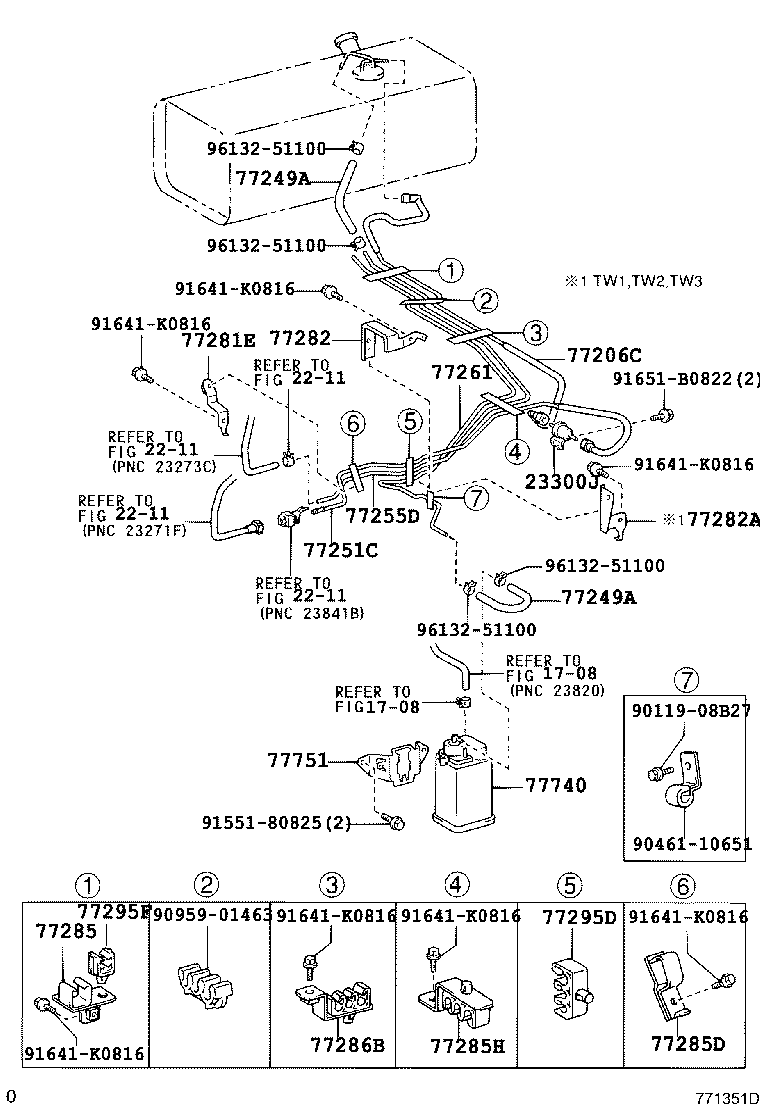

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-25360 |
RZY220,230 |
1 | ||
| 77252-25090 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-25250 |
TRY220,230 |
1 | ||
| 77255-25210 |
RZY220,230 |
1 | ||
| 77255-25220 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
LY220,230,270,280..DSL *H,L=200 |
1 | ||
| 95333-06020 |
RZY220,230 *H,L=200 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-25010 |
RZY220,230 |
1 | ||
| 77261-25020 |
TRY220,230 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
RZY220,230 *H,L=200 |
1 | ||
| 77281E - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-25070 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 77282 - BRACKET, FUEL MAIN TUBE, NO.2 | ||||
| 77281-25080 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77281-25030 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77281-25010 |
RZY220,230,TRY220,230 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-25010 |
LY220,230,240,270,280,290..DSL |
2 | ||
| 77285-25010 |
RZY220,230,TRY220,230 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-25050 |
RZY220,230,TRY220,230 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-25020 |
RZY220,230,TRY220,230 |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-25020 |
LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 77295-25040 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77295-25060 |
RZY220,230,TRY220,230 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-25040 |
RZY220,230 |
1 | ||
| 77740-63010 |
TRY220,230 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90999-92003 |
RZY220,230 *H,L=570,ﾏｰｸ=#* |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-25020 |
TRY220,230 |
1 | ||
| 77751-25010 |
RZY220,230 |
1 | ||
| Common parts | ||||
| 90119-08B27 | ||||
| 90405-08028 | ||||
| 90461-10651 | ||||
| 90464-00065 | ||||
| 90464-00411 | ||||
| 90464-00514 | ||||
| 90464-00793 | ||||
| 90467-12058 | ||||
| 91641-K0816 | ||||
| 91651-B0825 | ||||
| 95325-07022 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 2 OF 2(0107-0408)DSL
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

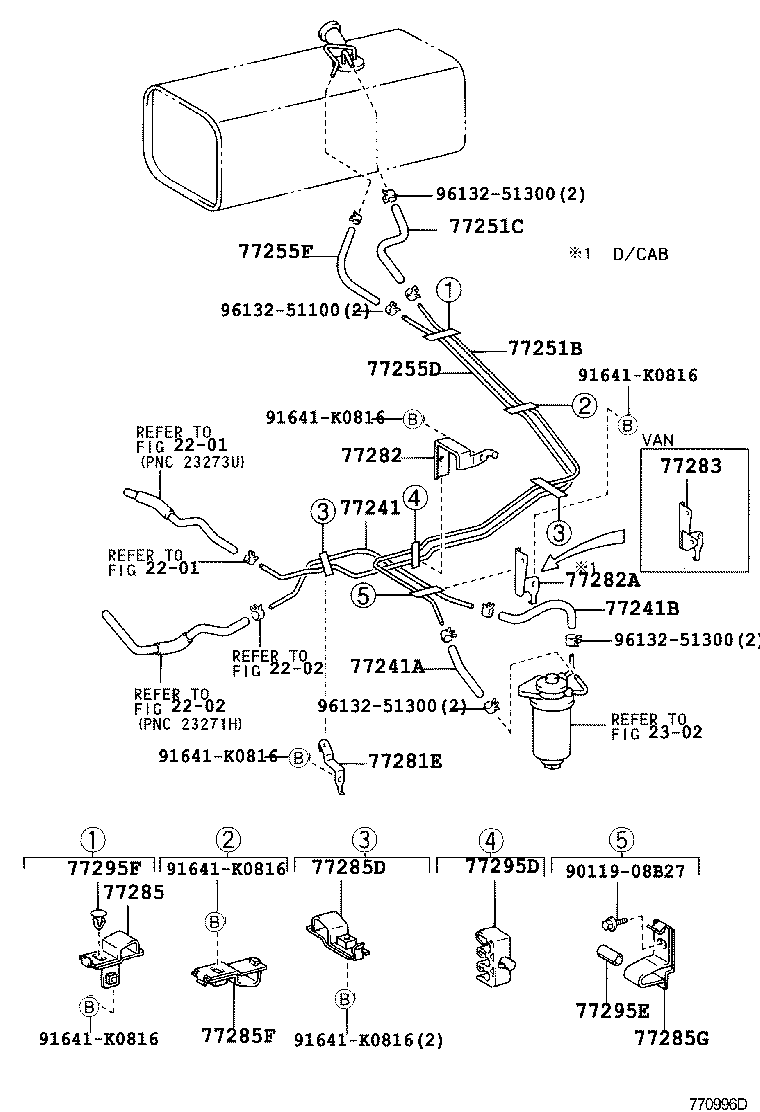

| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-25370 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95337-08020 |
LY220,230,270,280..DSL *H,L=200,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95337-08020 |
KDY24#,290,LY220,230,240,270,280,290..DCR,DSL *H,L=160,内径=7.6 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-25360 |
RZY220,230 |
1 | ||
| 77252-25090 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95337-08020 |
LY220,230,240,270,280,290..DSL *H,L=180,内径=7.6 |
1 | ||
| 77205-25290 |
TRY220,230 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-25250 |
TRY220,230 |
1 | ||
| 77255-25210 |
RZY220,230 |
1 | ||
| 77255-25220 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
LY220,230,270,280..DSL *H,L=200 |
1 | ||
| 95333-06020 |
RZY220,230 *H,L=200 |
1 | ||
| 77281E - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-25070 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 77282 - BRACKET, FUEL MAIN TUBE, NO.2 | ||||
| 77281-25080 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77281-25030 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77281-25010 |
RZY220,230,TRY220,230 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-25010 |
LY220,230,240,270,280,290..DSL |
2 | ||
| 77285-25010 |
RZY220,230,TRY220,230 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-25020 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-25020 |
LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI |
1 | ||
| 77295E - GROMMET, FUEL TUBE | ||||
| 77295-25030 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 77295-25040 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77295-25060 |
RZY220,230,TRY220,230 |
1 | ||
| Common parts | ||||
| 90119-08B27 | ||||
| 91641-K0816 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 1 OF 2(0107-0408)LY220,230,270,280..DSL
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

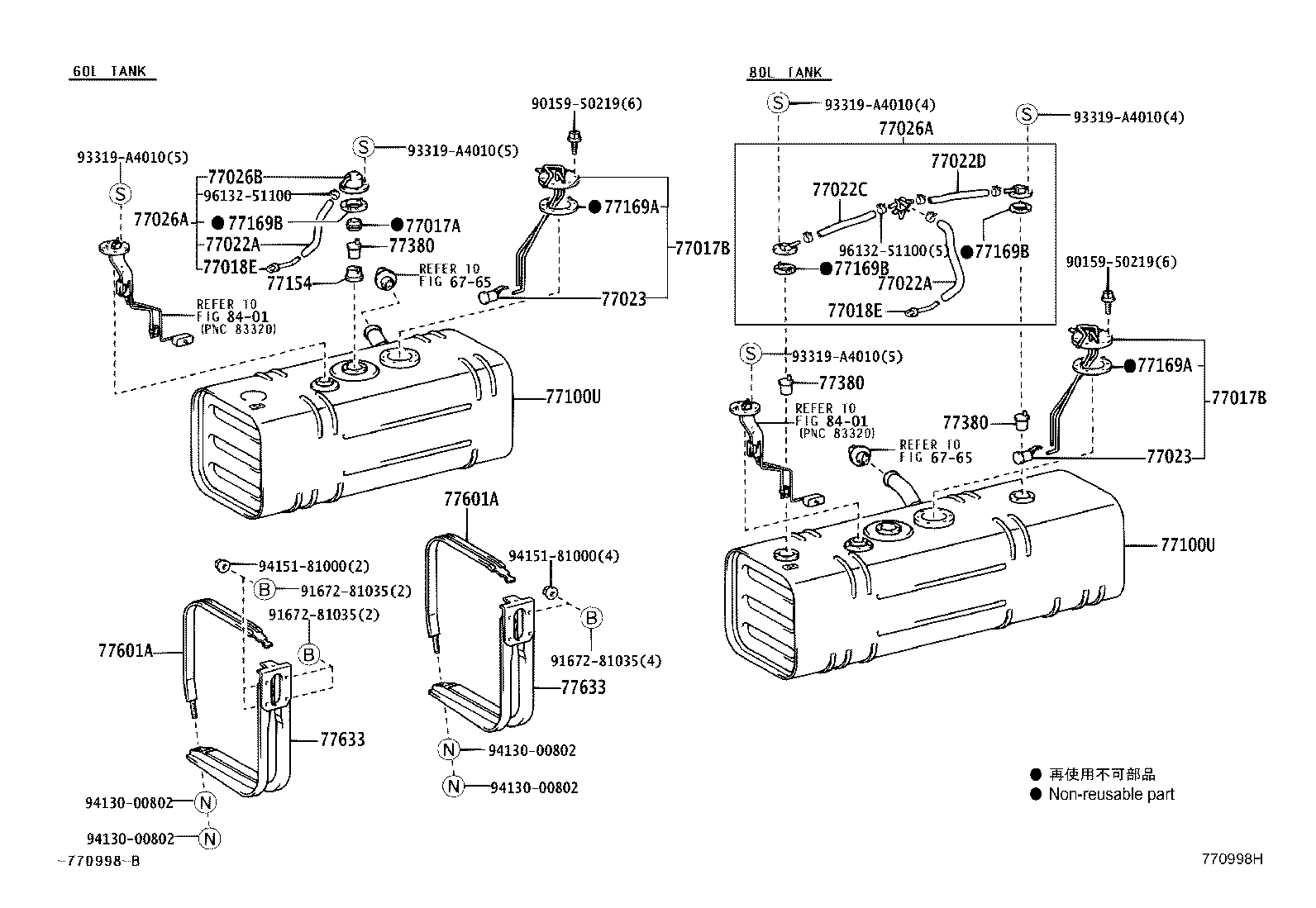

| 77017A - GASKET, FUEL TANK VENT | ||||
| 77178-44010 |
RZY230,TRY230;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-25120 |
LY220,230,270,280..DSL..(CBU,IV3) |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-25120 |
LY220,230,270,280..DSL..(CBU,IV3) |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77244-25030 |
RZY230,TRY230..IV6;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77244-25030 |
RZY230,TRY230..IV6;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06020 |
RZY220,230..CBU,IV3 *H,L=180 |
1 | ||
| 95333-06030 |
RZY230..IV6;KDY22#,23#,27#,28#,LY220,230,270,280..(DCR,DSL)..(CBU,IV3) *H,L=260 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06020 |
RZY220,230..CBU,IV3 *H,L=180 |
1 | ||
| 95333-06030 |
RZY230..IV6;KDY22#,23#,27#,28#,LY220,230,270,280..(DCR,DSL)..(CBU,IV3) *H,L=260 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-26020 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-26020 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280..(DCR,DSL)..(CBU,IV3) |
1 | ||
| 77026-25021 |
TRY220,230..CBU,IV3 |
1 | ||
| 77026-25020 |
RZY220,230..CBU,IV3 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280..(DCR,DSL)..(CBU,IV3) |
1 | ||
| 77026-25021 |
TRY220,230..CBU,IV3 |
1 | ||
| 77026-25020 |
RZY220,230..CBU,IV3 |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77026-37010 |
RZY220,230..CBU,IV3 |
1 | ||

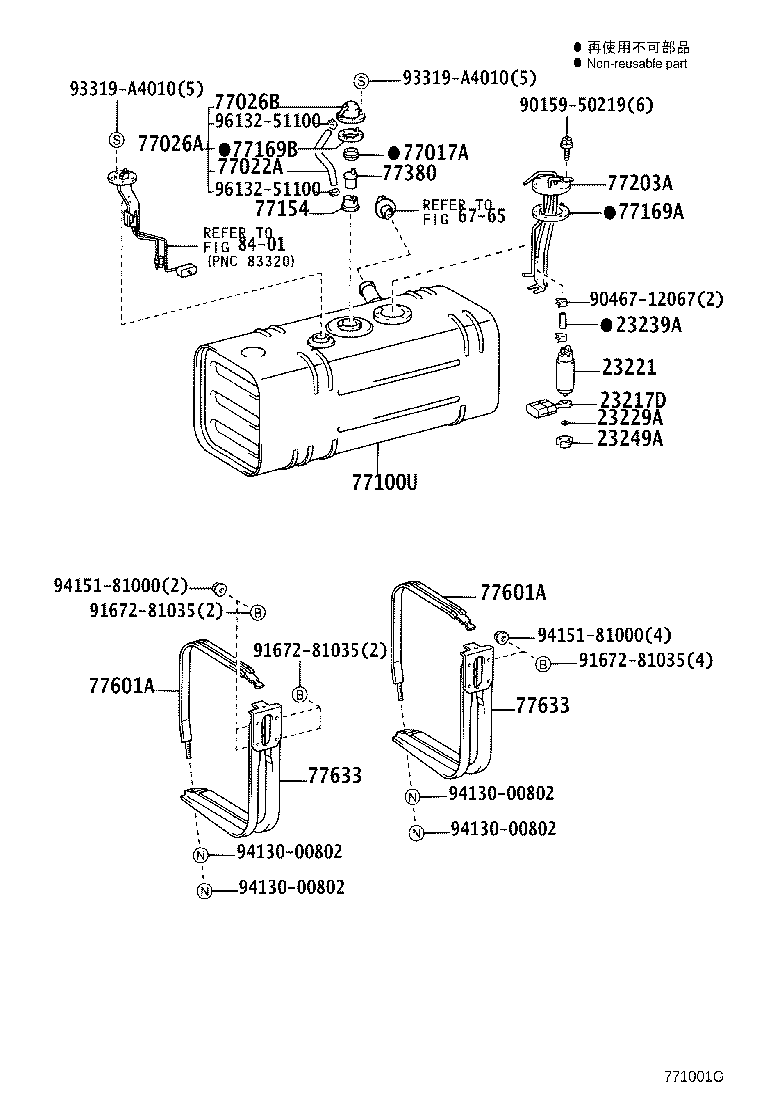

| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-25400 |
LY220,230,270,280..DSL..(CBU,IV3) 830 X 304 X 304 |
1 | ||
| 77001-25430 |
RZY220,230..CBU,IV3 830 X 304 X 304 |
1 | ||
| 77001-25401 |
LY220,230,270,280..DSL..(CBU,IV3) 830 X 304 X 304 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-25400 |
LY220,230,270,280..DSL..(CBU,IV3) 830 X 304 X 304 |
1 | ||
| 77001-25430 |
RZY220,230..CBU,IV3 830 X 304 X 304 |
1 | ||
| 77001-25401 |
LY220,230,270,280..DSL..(CBU,IV3) 830 X 304 X 304 |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-37010 |
LY220,230,270,280..DSL..(CBU,IV3) |
1 | ||
| 77154-25010 |
RZY230,TRY230;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77154-37010 |
RZY220,230..CBU,IV3 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-32010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-32010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
RZY230,TRY230;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
RZY230,TRY230;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
RZY230,TRY230;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-25120 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-25120 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25160 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25160 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
2 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 91672-81035 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0107-0308)RZY220,230..CBU,IV3

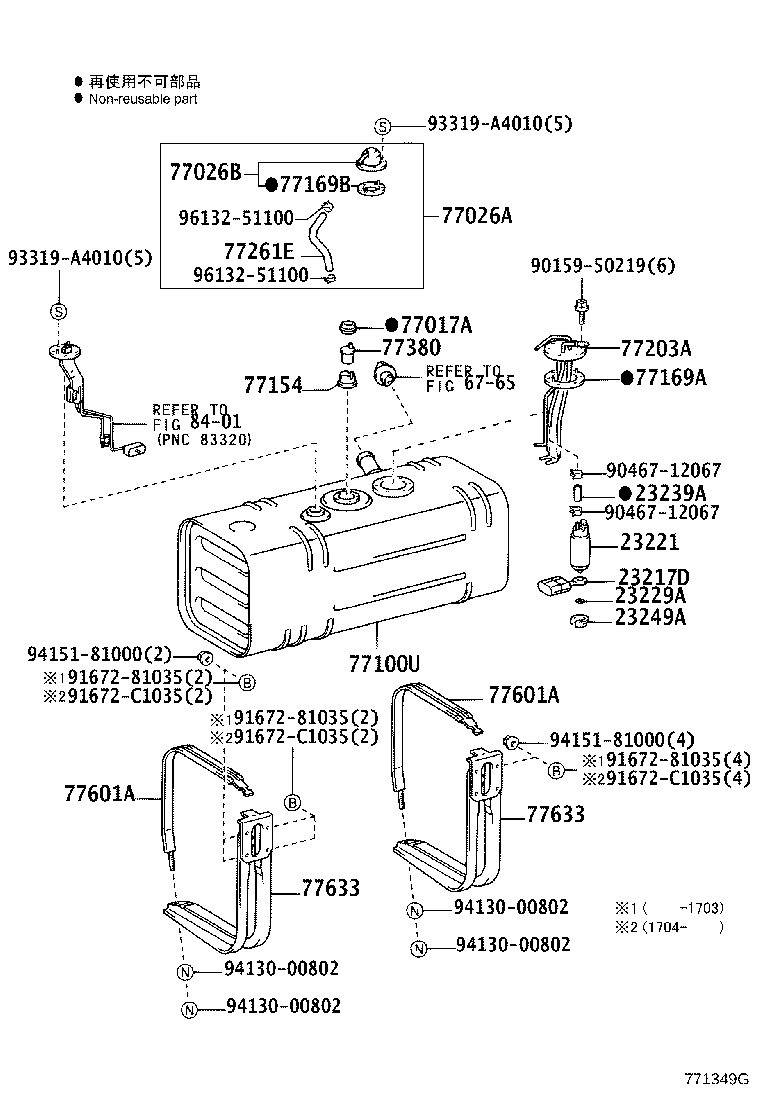

ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77178-44010 |
RZY230,TRY230;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06020 |
RZY220,230..CBU,IV3 *H,L=180 |
1 | ||
| 95333-06030 |
RZY230..IV6;KDY22#,23#,27#,28#,LY220,230,270,280..(DCR,DSL)..(CBU,IV3) *H,L=260 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280..(DCR,DSL)..(CBU,IV3) |
1 | ||
| 77026-25021 |
TRY220,230..CBU,IV3 |
1 | ||
| 77026-25020 |
RZY220,230..CBU,IV3 |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77026-37010 |
RZY220,230..CBU,IV3 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-25400 |
LY220,230,270,280..DSL..(CBU,IV3) 830 X 304 X 304 |
1 | ||
| 77001-25430 |
RZY220,230..CBU,IV3 830 X 304 X 304 |
1 | ||
| 77001-25401 |
LY220,230,270,280..DSL..(CBU,IV3) 830 X 304 X 304 |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-37010 |
LY220,230,270,280..DSL..(CBU,IV3) |
1 | ||
| 77154-25010 |
RZY230,TRY230;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77154-37010 |
RZY220,230..CBU,IV3 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-32010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-25080 |
RZY220,230,TRY220,230..CBU,IV3 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
RZY230,TRY230;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-25120 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-25120 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25160 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25160 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
2 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 90467-12067 | ||||
| 91672-81035 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0308- )TRY220,230..CBU,IV3
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77178-44010 |
RZY230,TRY230;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280..(DCR,DSL)..(CBU,IV3) |
1 | ||
| 77026-25021 |
TRY220,230..CBU,IV3 |
1 | ||
| 77026-25020 |
RZY220,230..CBU,IV3 |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77026-37010 |
RZY220,230..CBU,IV3 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-25400 |
LY220,230,270,280..DSL..(CBU,IV3) 830 X 304 X 304 |
1 | ||
| 77001-25430 |
RZY220,230..CBU,IV3 830 X 304 X 304 |
1 | ||
| 77001-25401 |
LY220,230,270,280..DSL..(CBU,IV3) 830 X 304 X 304 |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-37010 |
LY220,230,270,280..DSL..(CBU,IV3) |
1 | ||
| 77154-25010 |
RZY230,TRY230;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77154-37010 |
RZY220,230..CBU,IV3 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-32010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-25080 |
RZY220,230,TRY220,230..CBU,IV3 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06017 |
TRY220,230..CBU,IV3 長さ=170 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
RZY230,TRY230;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220..(DCR,DSL,EFI)..(CBU,IV3) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-25120 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-25120 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25160 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25160 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI |
2 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 90467-12067 | ||||
| 91672-81035 | ||||
| 91672-C1035 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0308- )TRY220,230
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-25080 |
TRY220,230 |
1 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 95337-06020 |
TRY220,230 |
2 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 95337-06020 |
TRY220,230 |
2 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95337-08020 |
LY220,230,240,270,280,290..DSL *H,L=180,内径=7.6 |
1 | ||
| 77205-25290 |
TRY220,230 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-25250 |
TRY220,230 |
1 | ||
| 77255-25210 |
RZY220,230 |
1 | ||
| 77255-25220 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-25010 |
RZY220,230 |
1 | ||
| 77261-25020 |
TRY220,230 |
1 | ||
| 77281E - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-25070 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 77282 - BRACKET, FUEL MAIN TUBE, NO.2 | ||||
| 77281-25080 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77281-25030 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77281-25010 |
RZY220,230,TRY220,230 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-25010 |
LY220,230,240,270,280,290..DSL |
2 | ||
| 77285-25010 |
RZY220,230,TRY220,230 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-25050 |
RZY220,230,TRY220,230 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-25020 |
RZY220,230,TRY220,230 |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-25020 |
LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 77295-25040 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 77295-25060 |
RZY220,230,TRY220,230 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-25040 |
RZY220,230 |
1 | ||
| 77740-63010 |
TRY220,230 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-25020 |
TRY220,230 |
1 | ||
| 77751-25010 |
RZY220,230 |
1 | ||
| Common parts | ||||
| 90119-08B27 | ||||
| 90461-10651 | ||||
| 90959-01463 | ||||
| 91551-80825 | ||||
| 91641-K0816 | ||||
| 91651-B0822 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
