LY230-TBPDS3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )LY230,280,RZY231,281..TB..ATM

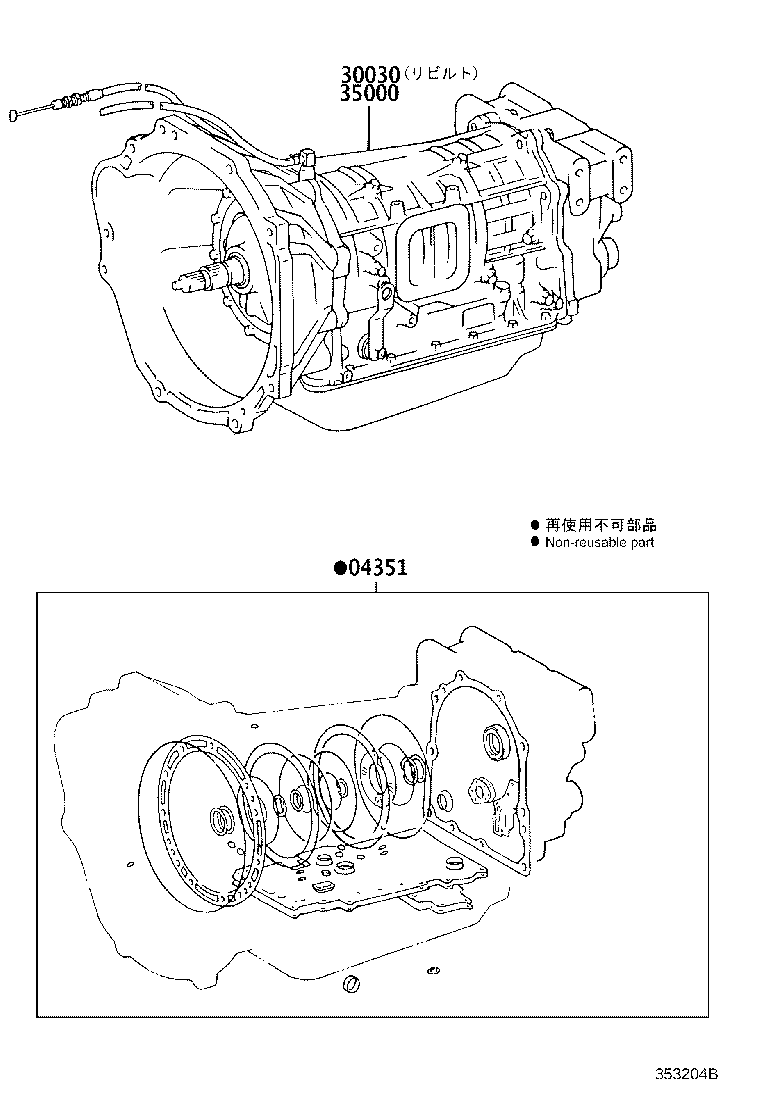

Click highlighted areas on diagram

A443E,A443F

diagram 04351 30030 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-26090

TRY220,230..ATM..125T

 1
04351-25020

LY220,230,280,RZY220,230..TS..ATM

 1
04351-26091

TRY220,230..ATM..125T

 1
04351-25070

LY230,280..TB..ATM

 1
30030 - TRANSMISSION ASSY, REBUILT
30030-25180

LY220,230..ATM..125T..ST

 1
30030-25130

LY230..TB..ATM..DSL

 1
30030-25200

RZY220,230..ATM..(CBU,IV3)

 1
30030-25260

TRY220,230..ATM..125T..(CBU,IV3)

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-25200

RZY220,230..ATM..(CBU,IV3)

A45DE

 1
35000-25180

LY220,230..ATM..125T..ST

A44DE

 1
35000-25130

LY230..TB..ATM..DSL

A443E

 1
35000-25260

TRY220,230..ATM..125T..(CBU,IV3)

A45DE

 1

(0107- )LY220,230,280,RZY220,230,TRY220,230..TS..ATM

Click highlighted areas on diagram

A44DE,A44DF,A45DE

diagram 04351 30030 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-26090

TRY220,230..ATM..125T

 1
04351-25020

LY220,230,280,RZY220,230..TS..ATM

 1
04351-26091

TRY220,230..ATM..125T

 1
04351-25070

LY230,280..TB..ATM

 1
30030 - TRANSMISSION ASSY, REBUILT
30030-25180

LY220,230..ATM..125T..ST

 1
30030-25130

LY230..TB..ATM..DSL

 1
30030-25200

RZY220,230..ATM..(CBU,IV3)

 1
30030-25260

TRY220,230..ATM..125T..(CBU,IV3)

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-25200

RZY220,230..ATM..(CBU,IV3)

A45DE

 1
35000-25180

LY220,230..ATM..125T..ST

A44DE

 1
35000-25130

LY230..TB..ATM..DSL

A443E

 1
35000-25260

TRY220,230..ATM..125T..(CBU,IV3)

A45DE

 1
