LY230-PQPES3 (2001)
Toyota Dyna/Toyoace
(0107- )TB..ATM..DSL
A443E,A443F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118B - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-25020 |
LY220,230,280..ATM..DSL |
1 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-25020 |
LY220,230,280..ATM..DSL |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-25090 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35013-25070 |
RZY220,230..ATM |
1 | ||
| 35013-25110 |
TRY220,230..ATM..125T |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-25090 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35103-25110 |
TRY220,230..ATM..125T |
1 | ||
| 35103-25070 |
RZY220,230..ATM |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-25020 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35104-22060 |
TRY220,230..ATM..125T |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03099 |
LY220,230,280,RZY220,230..ATM..(DSL,EFI) NO.2 |
1 | ||
| 90930-03094 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.1 |
1 | ||
| 90930-03098 |
TRY220,230..ATM..125T |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03099 |
LY220,230,280,RZY220,230..ATM..(DSL,EFI) NO.2 |
1 | ||
| 90930-03094 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.1 |
1 | ||
| 90930-03098 |
TRY220,230..ATM..125T |
1 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
7 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11118 |
LY230,280..TB..ATM..DSL;KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 90445-11145 |
TRY220,230..ATM..125T |
1 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-99067 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.1 |
1 | ||
| 90301-10189 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.2 |
1 | ||
| 35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-99067 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.1 |
1 | ||
| 90301-10189 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.2 |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-25030 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35106-25050 |
TRY220,230..ATM..125T |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18057 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90341-10006 |
RZY220,230..ATM |
1 | ||
| 90341-10011 |
RZY220,230..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 12157-10010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-25011 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35111-26070 |
TRY220,230..ATM..125T |
1 | ||
| 35111-35080 |
RZY220,230..ATM |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
7 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-13001 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
KDY22#,23#,28#,LY220,230,280,RZY231,281,TRY220,23#,281..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
KDY230..TW4..ATM;KDY231..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| Common parts | ||||
| 90119-12294 | ||||
| 90119-12295 | ||||
| 91611-B0616 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91619-61250 | ||||
| 91651-60816 | ||||
| 91651-61030 | ||||
| 96132-51000 | ||||

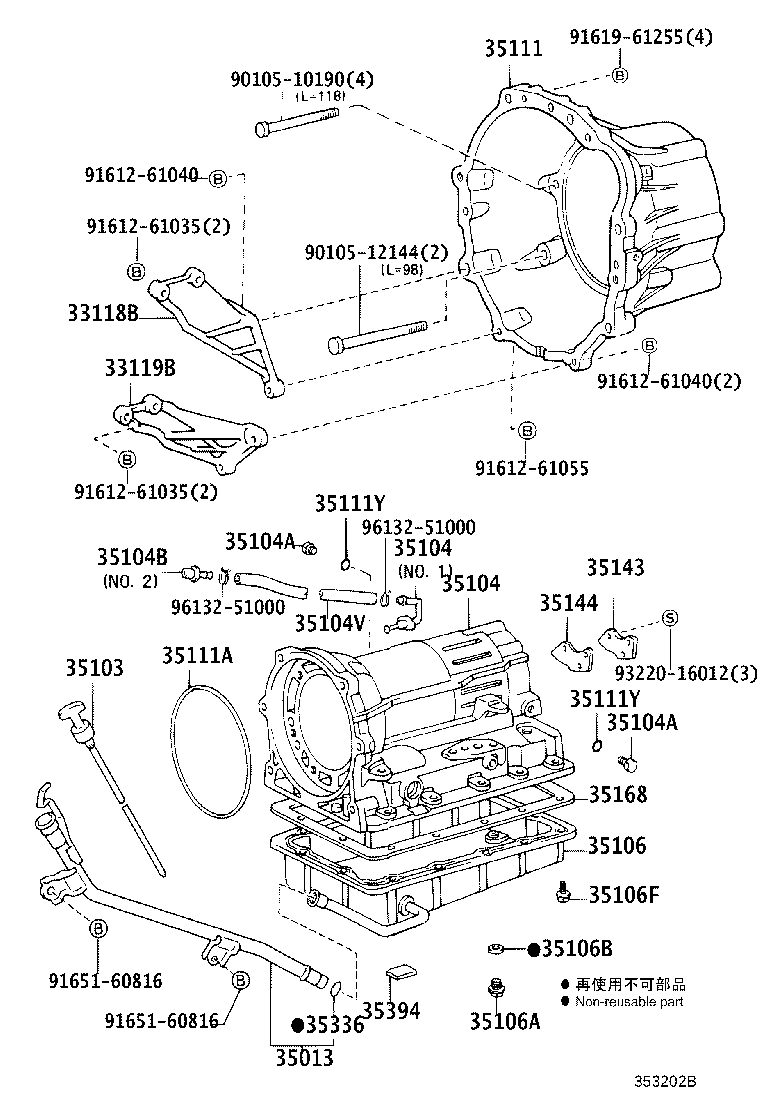

(0107- )RZY220,230..ATM
A45DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118B - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-25020 |
LY220,230,280..ATM..DSL |
1 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-25020 |
LY220,230,280..ATM..DSL |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-25090 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35013-25070 |
RZY220,230..ATM |
1 | ||
| 35013-25110 |
TRY220,230..ATM..125T |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-25090 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35103-25110 |
TRY220,230..ATM..125T |
1 | ||
| 35103-25070 |
RZY220,230..ATM |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-25020 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35104-22060 |
TRY220,230..ATM..125T |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-25020 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35104-22060 |
TRY220,230..ATM..125T |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03099 |
LY220,230,280,RZY220,230..ATM..(DSL,EFI) NO.2 |
1 | ||
| 90930-03094 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.1 |
1 | ||
| 90930-03098 |
TRY220,230..ATM..125T |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11118 |
LY230,280..TB..ATM..DSL;KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 90445-11145 |
TRY220,230..ATM..125T |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-25030 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35106-25050 |
TRY220,230..ATM..125T |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18057 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90341-10006 |
RZY220,230..ATM |
1 | ||
| 90341-10011 |
RZY220,230..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 12157-10010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-25011 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35111-26070 |
TRY220,230..ATM..125T |
1 | ||
| 35111-35080 |
RZY220,230..ATM |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99054 |
RZY220,230..ATM |
1 | ||
| 90301-99054 |
TRY220,230..ATM..125T |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
7 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
7 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
RZY220,230..ATM |
1 | ||
| 35143-22010 |
TRY220,230..ATM..125T |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-28010 |
RZY220,230..ATM |
1 | ||
| 35144-28010 |
TRY220,230..ATM..125T |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
RZY220,230..ATM |
1 | ||
| 35168-22011 |
TRY220,230..ATM..125T |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
KDY22#,23#,28#,LY220,230,280,RZY231,281,TRY220,23#,281..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
KDY230..TW4..ATM;KDY231..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| Common parts | ||||
| 90105-10190 | ||||
| 90105-12144 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91612-61055 | ||||
| 91619-61255 | ||||
| 91651-60816 | ||||
| 93220-16012 | ||||
| 96132-51000 | ||||
(0308- )TRY220,230..ATM..125T
A45D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-25090 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35013-25070 |
RZY220,230..ATM |
1 | ||
| 35013-25110 |
TRY220,230..ATM..125T |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-25090 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35103-25110 |
TRY220,230..ATM..125T |
1 | ||
| 35103-25070 |
RZY220,230..ATM |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-25020 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35104-22060 |
TRY220,230..ATM..125T |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03099 |
LY220,230,280,RZY220,230..ATM..(DSL,EFI) NO.2 |
1 | ||
| 90930-03094 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.1 |
1 | ||
| 90930-03098 |
TRY220,230..ATM..125T |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03168 |
TRY220,230..ATM..125T |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11118 |
LY230,280..TB..ATM..DSL;KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 90445-11145 |
TRY220,230..ATM..125T |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-25030 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35106-25050 |
TRY220,230..ATM..125T |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18057 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90341-10006 |
RZY220,230..ATM |
1 | ||
| 90341-10011 |
RZY220,230..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 12157-10010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-25011 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35111-26070 |
TRY220,230..ATM..125T |
1 | ||
| 35111-35080 |
RZY220,230..ATM |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99054 |
RZY220,230..ATM |
1 | ||
| 90301-99054 |
TRY220,230..ATM..125T |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
7 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
7 | ||
| 35139 - BRACKET, OIL FILLER TUBE | ||||
| 35139-25010 |
TRY220,230..ATM |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
RZY220,230..ATM |
1 | ||
| 35143-22010 |
TRY220,230..ATM..125T |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-28010 |
RZY220,230..ATM |
1 | ||
| 35144-28010 |
TRY220,230..ATM..125T |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
RZY220,230..ATM |
1 | ||
| 35168-22011 |
TRY220,230..ATM..125T |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
KDY22#,23#,28#,LY220,230,280,RZY231,281,TRY220,23#,281..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
KDY230..TW4..ATM;KDY231..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| Common parts | ||||
| 90105-10190 | ||||
| 90105-12144 | ||||
| 90949-01B81 | ||||
| 91611-B0816 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91612-61060 | ||||
| 91619-61255 | ||||
| 91651-40610 | ||||
| 91651-60816 | ||||
| 93220-16012 | ||||
| 96132-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
