LY230-PQPES (2001)
Toyota Dyna/Toyoace

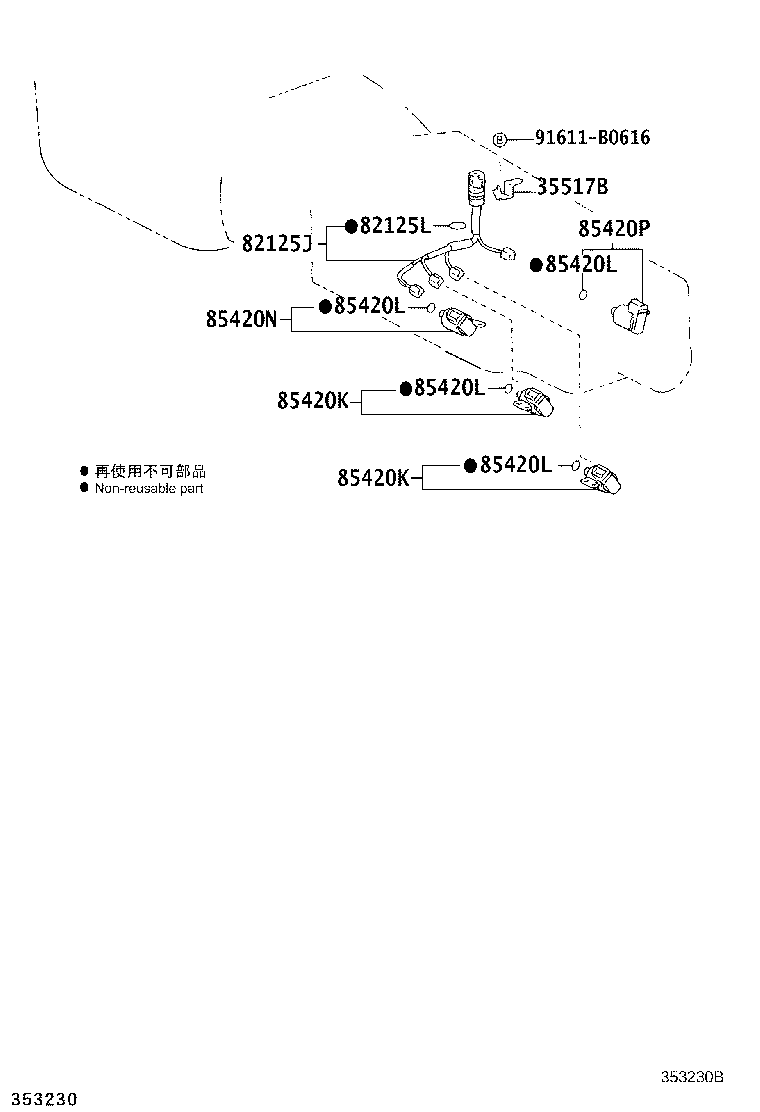

ILLUST NO. 2 OF 2(0107- )LY230,280,RZY231,281..TB..ATM
A443E,A443F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35517B - PLATE, TRANSMISSION WIRE LOCK | ||||
| 35517-37010 |
LY230,280..TB..ATM..DSL |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-36010 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 82125-25140 |
TRY220,230..ATM..125T |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 96721-24018 |
KDY23#,280,TRY230..TS..ATM..ST;KDY22#,281,LY220,230,280,RZY220,23#,281,TRY220..ATM |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-30030 |
TRY220,230..ATM..125T AISIN,DENSO |
2 | ||
| 85420-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-30030 |
TRY220,230..ATM..125T AISIN,DENSO |
2 | ||
| 85420-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| 85420N - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-28030 |
TRY220,230..ATM..125T |
1 | ||
| 85420-60060 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 85420P - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-60070 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| Common parts | ||||
| 91611-B0616 | ||||

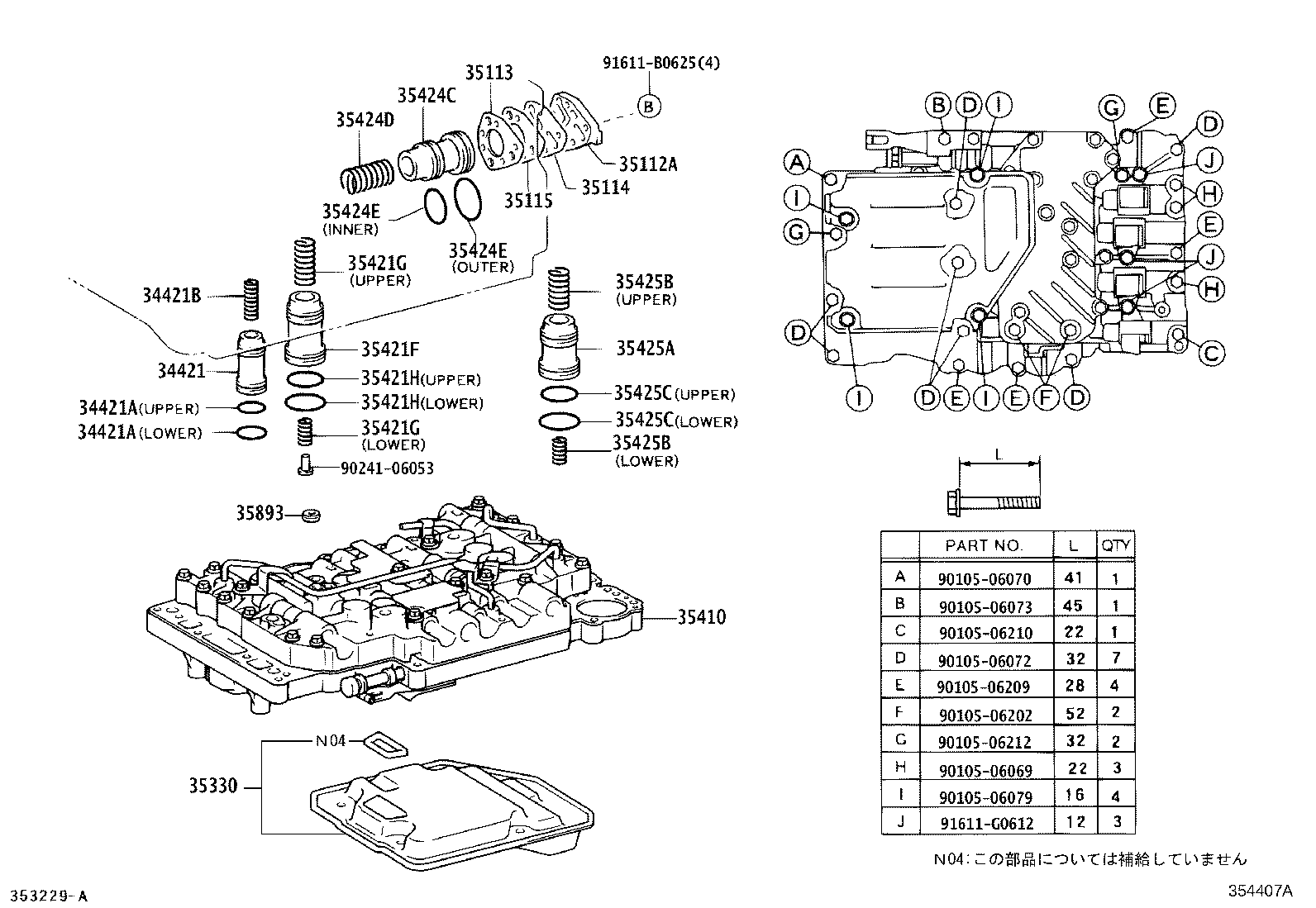

ILLUST NO. 1 OF 2(0107- )LY230,280,RZY231,281..TB..ATM
A443E,A443F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34421 - PISTON, OVERDRIVE BRAKE ACCUMULATOR | ||||
| 34421-37010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-26003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90301-29003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-26003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90301-29003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 34421B - SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90501-31020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35112A - COVER, FRONT CLUTCH ACCUMULATOR | ||||
| 35112-60010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35113 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.2 | ||||
| 35113-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35114 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.1 | ||||
| 35114-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35115 - PLATE, FRONT CLUTCH ACCUMULATOR | ||||
| 35115-60010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-53010 |
TRY220,230..ATM..125T |
1 | ||
| 35330-36010 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-25080 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35410-25060 |
RZY220,230..ATM |
1 | ||
| 35410-25090 |
TRY220,230..ATM..125T |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35402-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-22050 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90501-38008 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-22050 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90501-38008 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-29003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90301-37004 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-29003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90301-37004 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22032 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90501-20162 |
TRY220,230..ATM..125T |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-22003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-28003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-22003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-28003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-60060 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25002 |
RZY220,230..ATM |
1 | ||
| 90501-30025 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90501-25061 |
TRY220,230..ATM..125T |
1 | ||
| 90501-18113 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25002 |
RZY220,230..ATM |
1 | ||
| 90501-30025 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90501-25061 |
TRY220,230..ATM..125T |
1 | ||
| 90501-18113 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-28003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90301-33006 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-28003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90301-33006 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35893 - GASKET, CENTER SUPPORT APPLY | ||||
| 35893-36010 |
LY230,280,RZY231,281..TB..ATM |
4 | ||
| Common parts | ||||
| 90105-06069 | ||||
| 90105-06070 | ||||
| 90105-06072 | ||||
| 90105-06073 | ||||
| 90105-06079 | ||||
| 90105-06202 | ||||
| 90105-06209 | ||||
| 90105-06210 | ||||
| 90105-06212 | ||||
| 90241-06053 | ||||
| 91611-B0625 | ||||
| 91611-G0612 | ||||

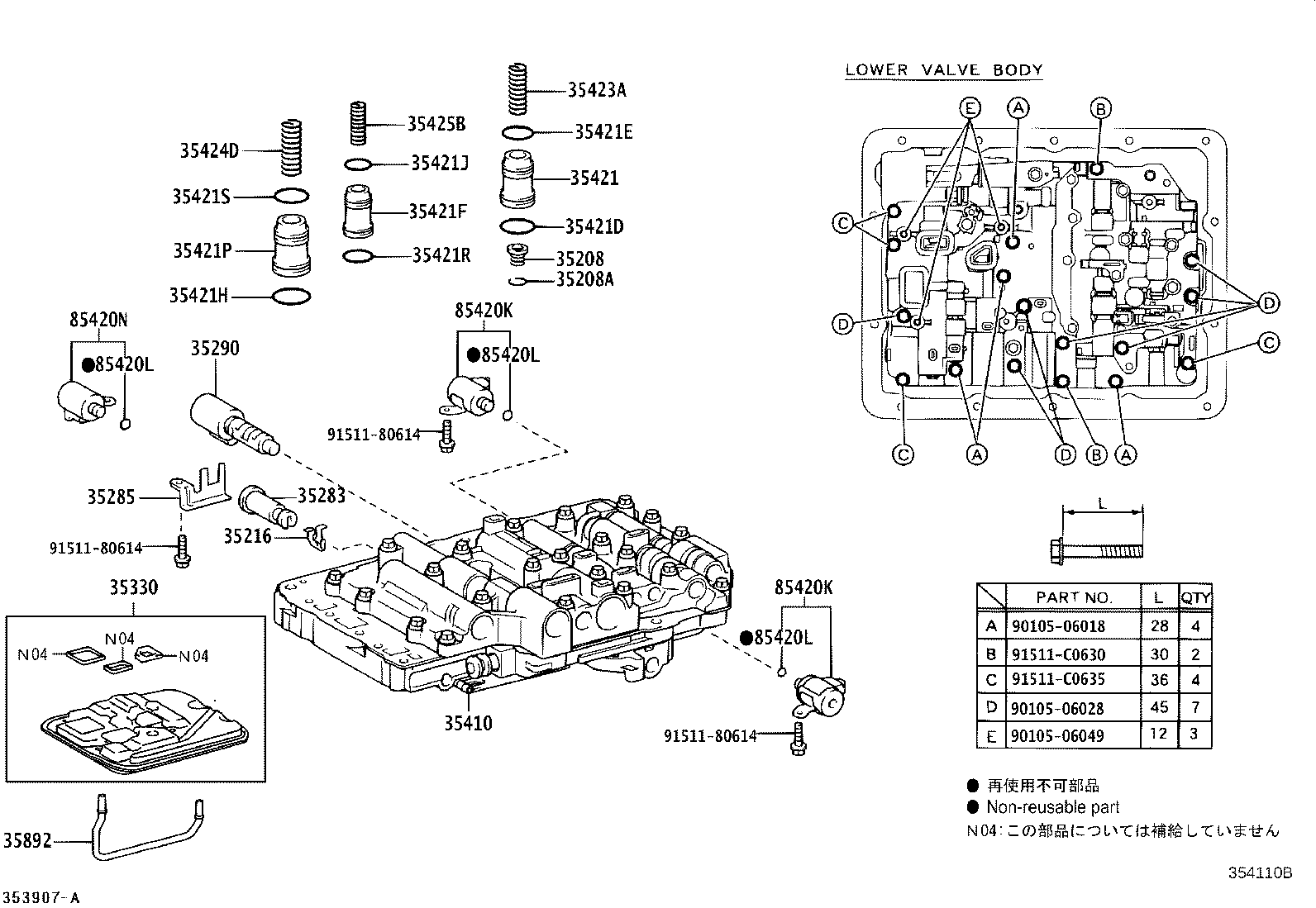

ILLUST NO. 1 OF 2(0308- )KDY280..TB..ATM ; (0308- )KDY23#..ATM..125T..WT ; (0308- )KDY23#,T
A442E,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34421 - PISTON, OVERDRIVE BRAKE ACCUMULATOR | ||||
| 34421-37010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-26003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90301-29003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-26003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90301-29003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 34421B - SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90501-31020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35112A - COVER, FRONT CLUTCH ACCUMULATOR | ||||
| 35112-60010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35113 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.2 | ||||
| 35113-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35114 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.1 | ||||
| 35114-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35115 - PLATE, FRONT CLUTCH ACCUMULATOR | ||||
| 35115-60010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-25010 |
TRY220,230..ATM..125T |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-53010 |
TRY220,230..ATM..125T |
1 | ||
| 35330-36010 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-25080 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35410-25060 |
RZY220,230..ATM |
1 | ||
| 35410-25090 |
TRY220,230..ATM..125T |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35402-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-22050 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90501-38008 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-22050 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90501-38008 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-37004 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 90301-29003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-29003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90301-37004 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22032 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90501-20162 |
TRY220,230..ATM..125T |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-22003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-28003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-22003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-28003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-60060 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25002 |
RZY220,230..ATM |
1 | ||
| 90501-30025 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90501-25061 |
TRY220,230..ATM..125T |
1 | ||
| 90501-18113 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25002 |
RZY220,230..ATM |
1 | ||
| 90501-30025 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90501-25061 |
TRY220,230..ATM..125T |
1 | ||
| 90501-18113 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-28003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90301-33006 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-28003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90301-33006 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35893 - GASKET, CENTER SUPPORT APPLY | ||||
| 35893-36010 |
LY230,280,RZY231,281..TB..ATM |
4 | ||
| 35893 - GASKET, CENTER SUPPORT APPLY | ||||
| 35893-36010 |
LY230,280,RZY231,281..TB..ATM |
4 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-30030 |
TRY220,230..ATM..125T AISIN,DENSO |
2 | ||
| 85420-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-30030 |
TRY220,230..ATM..125T AISIN,DENSO |
2 | ||
| 85420-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| 85420N - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-28030 |
TRY220,230..ATM..125T |
1 | ||
| 85420-60060 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 85420P - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-60070 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| Common parts | ||||
| 90105-06060 | ||||
| 90105-06069 | ||||
| 90105-06070 | ||||
| 90105-06072 | ||||
| 90105-06073 | ||||
| 90105-06079 | ||||
| 90105-06202 | ||||
| 90105-06209 | ||||
| 90105-06210 | ||||
| 90105-06212 | ||||
| 90105-06262 | ||||
| 90105-06263 | ||||
| 90119-05011 | ||||
| 90119-05015 | ||||
| 90119-05043 | ||||
| 90560-05016 | ||||
| 90949-01B86 | ||||
| 90949-02118 | ||||
| 91611-B0625 | ||||
| 91611-G0612 | ||||
| 96151-02400 | ||||
ILLUST NO. 2 OF 2(0308- )KDY230,280,TRY230..TB..ATM ; (0605-)KDY230..TS..ATM..WT ; (0709-
A442E,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-36010 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 82125-25140 |
TRY220,230..ATM..125T |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 96721-24018 |
KDY23#,280,TRY230..TS..ATM..ST;KDY22#,281,LY220,230,280,RZY220,23#,281,TRY220..ATM |
1 | ||
| Common parts | ||||
| 91611-60620 | ||||
ILLUST NO. 1 OF 2(0308- )TRY220,230..ATM..125T
A45DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-28010 |
TRY220,230..ATM..125T |
1 | ||
| 35216 - STOPPER, VALVE SLEEVE | ||||
| 35216-28010 |
TRY220,230..ATM..125T |
1 | ||
| 35283 - SLEEVE, LOCK UP CONTROL SOLENOID | ||||
| 35283-28010 |
TRY220,230..ATM..125T |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-28010 |
TRY220,230..ATM..125T |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-25010 |
TRY220,230..ATM..125T |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-53010 |
TRY220,230..ATM..125T |
1 | ||
| 35330-36010 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-25080 |
LY230,280..TB..ATM..DSL |
1 | ||
| 35410-25060 |
RZY220,230..ATM |
1 | ||
| 35410-25090 |
TRY220,230..ATM..125T |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-26010 |
TRY220,230..ATM..125T |
1 | ||
| 35421-26010 |
RZY220,230..ATM |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29011 |
RZY220,230..ATM |
1 | ||
| 90301-29011 |
TRY220,230..ATM..125T |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23010 |
TRY220,230..ATM..125T |
1 | ||
| 90301-23010 |
RZY220,230..ATM |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35402-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-37004 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 90301-29003 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18010 |
TRY220,230..ATM..125T |
1 | ||
| 90301-18010 |
RZY220,230..ATM |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
RZY220,230..ATM |
1 | ||
| 35421-22030 |
TRY220,230..ATM..125T |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26012 |
TRY220,230..ATM..125T |
1 | ||
| 90301-26012 |
RZY220,230..ATM |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-21012 |
TRY220,230..ATM..125T |
1 | ||
| 90301-21012 |
RZY220,230..ATM |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25037 |
RZY220,230,TRY220,230..ATM..125T |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22032 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90501-20162 |
TRY220,230..ATM..125T |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25002 |
RZY220,230..ATM |
1 | ||
| 90501-30025 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 上側 |
1 | ||
| 90501-25061 |
TRY220,230..ATM..125T |
1 | ||
| 90501-18113 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 下側 |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-26010 |
RZY220,230..ATM |
1 | ||
| 35892-22010 |
TRY220,230..ATM..125T |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-30030 |
TRY220,230..ATM..125T AISIN,DENSO |
2 | ||
| 85420-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-30030 |
TRY220,230..ATM..125T AISIN,DENSO |
2 | ||
| 85420-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| 85420N - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-28030 |
TRY220,230..ATM..125T |
1 | ||
| 85420-60060 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| Common parts | ||||
| 90105-06018 | ||||
| 90105-06028 | ||||
| 90105-06049 | ||||
| 91511-80614 | ||||
| 91511-C0630 | ||||
| 91511-C0635 | ||||

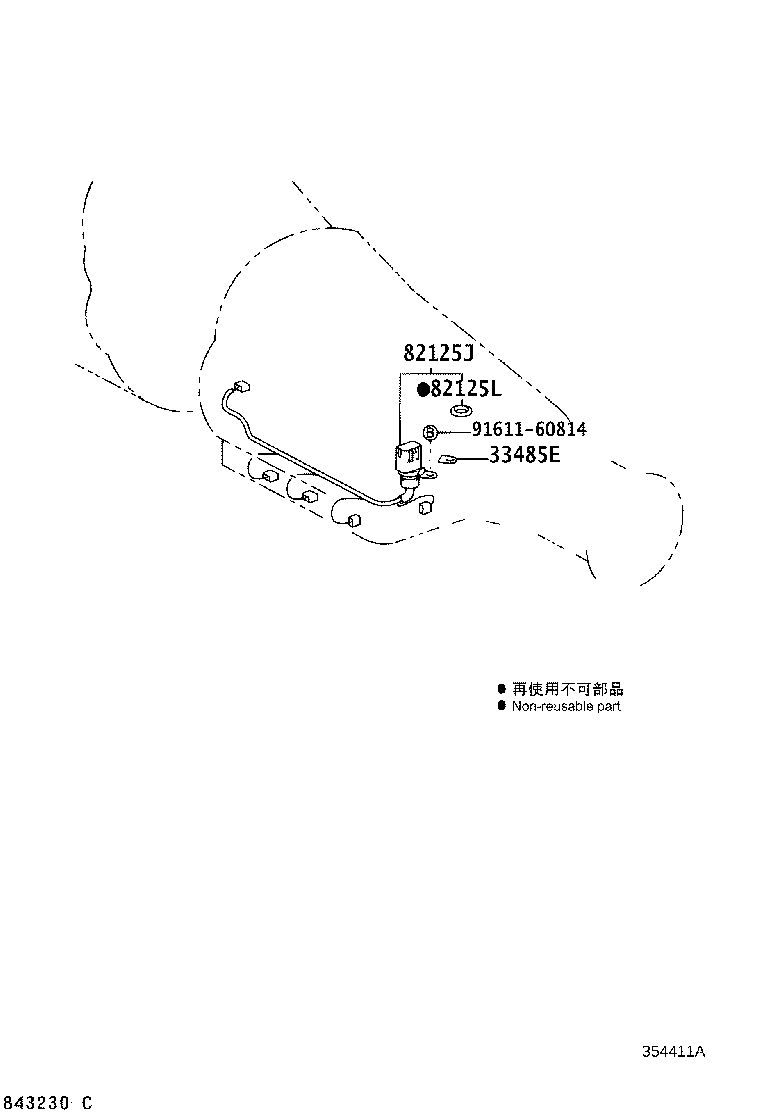

ILLUST NO. 2 OF 2(0308- )TRY220,230..ATM..125T
A45DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33485E - PLATE, LOCK | ||||
| 33485-28010 |
TRY220,230..ATM..125T |
1 | ||
| 33485-30020 |
RZY220,230..ATM |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-36010 |
LY230,280,RZY231,281..TB..ATM |
1 | ||
| 82125-25140 |
TRY220,230..ATM..125T |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 96721-24018 |
KDY23#,280,TRY230..TS..ATM..ST;KDY22#,281,LY220,230,280,RZY220,23#,281,TRY220..ATM |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
