Toyota Dyna/toyoace LY230 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
LY230-PGPES (2001)
8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

LY230-PGPES (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004

Engine 5L

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0107-1610)

Click highlighted areas on diagram

ﾌﾛﾝﾄ - ﾏﾆｭｱﾙｴｱｺﾝ

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37120	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
87104-37120	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37030	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
87105-37030	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-37040	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
87107-37040	RZY231,281,TRY220,230	07/2001 - 05/2007	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37150	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
87130-37150	KDY221,231,241,271,281,TRY220,23#,281	07/2001 - 06/2010	1
87130-37160	KDY221,231..T4..TB;KDY271,281,TRY220,230;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｵ-ﾄｴｱｺﾝ	07/2001 - 04/2015	1
87130-37160	LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2004	1
87130-37150	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
87130-37160	RZY220,230;LY230..TW1;LY220..125T..WT;LY230..TB..125T..ST ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2003	1
87150 - RADIATOR ASSY, HEATER
87150-37160	LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2004	1
87150-25010	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ﾏﾆﾕｱﾙｴｱｺﾝ OR ﾅｼ(ｴｱｺﾝ)	07/2001 - 08/2004	1
87150-37160	RZY220,230;LY230..TW1;LY220..125T..WT;LY230..TB..125T..ST ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2003	1
87150-37160	TRY220,230 ｵ-ﾄｴｱｺﾝ	07/2001 - 05/2007	1
87150-37200	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ OR ｶﾝﾚｲﾁｼﾖｳ & ﾅｼ(ｴｱｺﾝ)	07/2001 - 08/2004	1
87441D - FILTER, HEATER AIR, NO.2
87441-37031	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	10/2001 - 08/2004	1
87441-37030	LY220,230,240,270,280,290,RZY220,230	07/2001 - 10/2001	1
Common parts
87128-37050
90179-06274
90179-08057
90480-01529
91554-80614
Linked diagrams
5851
8714

ILLUST NO. 1 OF 2(0107-1610)

Click highlighted areas on diagram

ﾌﾛﾝﾄ - ｵｰﾄｴｱｺﾝ

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37120	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
87104-37120	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37030	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
87105-37030	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
87106A - SERVO SUB-ASSY, DAMPER
87106-37040	RZY220,230;LY230..TW1;LY220..125T..WT;LY230..TB..125T..ST ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2003	1
87106-37040	LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2004	1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-37050	RZY220,230;LY230..TW1;LY220..125T..WT;LY230..TB..125T..ST ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2003	1
87106-37050	LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2004	1
87106M - SERVO SUB-ASSY, DAMPER, NO.2
87106-37060	LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2004	1
87106-37060	RZY220,230;LY230..TW1;LY220..125T..WT;LY230..TB..125T..ST ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2003	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-37040	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
87107-37040	RZY231,281,TRY220,230	07/2001 - 05/2007	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37150	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
87130-37150	KDY221,231,241,271,281,TRY220,23#,281	07/2001 - 06/2010	1
87130-37160	KDY221,231..T4..TB;KDY271,281,TRY220,230;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｵ-ﾄｴｱｺﾝ	07/2001 - 04/2015	1
87130-37160	LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2004	1
87130-37150	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	07/2001 - 08/2004	1
87130-37160	RZY220,230;LY230..TW1;LY220..125T..WT;LY230..TB..125T..ST ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2003	1
87150 - RADIATOR ASSY, HEATER
87150-37160	LY220..15T,1T;LY270,280..DSL;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2004	1
87150-25010	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ﾏﾆﾕｱﾙｴｱｺﾝ OR ﾅｼ(ｴｱｺﾝ)	07/2001 - 08/2004	1
87150-37160	RZY220,230;LY230..TW1;LY220..125T..WT;LY230..TB..125T..ST ｵ-ﾄｴｱｺﾝ	07/2001 - 08/2003	1
87150-37160	TRY220,230 ｵ-ﾄｴｱｺﾝ	07/2001 - 05/2007	1
87150-37200	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ OR ｶﾝﾚｲﾁｼﾖｳ & ﾅｼ(ｴｱｺﾝ)	07/2001 - 08/2004	1
87441D - FILTER, HEATER AIR, NO.2
87441-37031	LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL	10/2001 - 08/2004	1
87441-37030	LY220,230,240,270,280,290,RZY220,230	07/2001 - 10/2001	1
Common parts
87128-37050
90179-06274
90179-08057
90480-01529
91554-80614
Linked diagrams
5851
8714

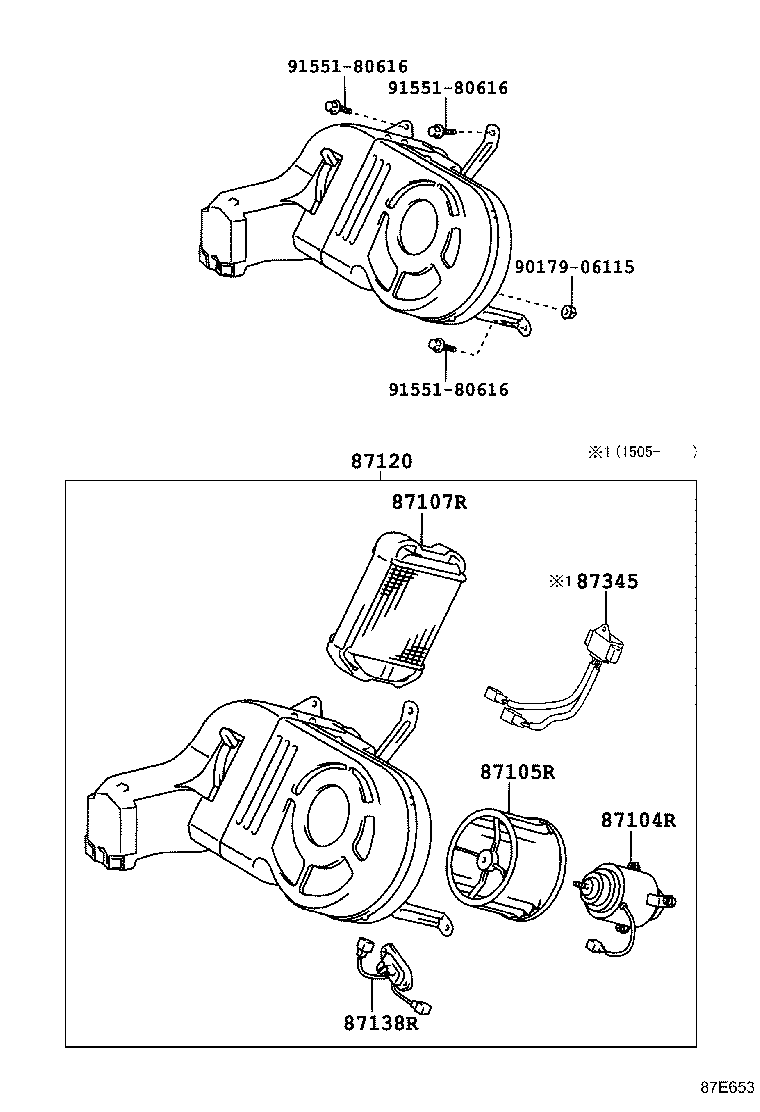

ILLUST NO. 2 OF 2(0107- )TW1,TW2,TW3,TW4

Click highlighted areas on diagram

ﾘﾔ

Part #	Description	Period	Qty
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-87003	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-60330	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	1
87120 - HEATER ASSY, REAR
87110-37100	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 06/2008	1
87138R - RESISTOR, REAR HEATER BLOWER
87138-37180	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	1
Common parts
90179-06115
91551-80616
