LY230-PGPES (2001)
Toyota Dyna/Toyoace

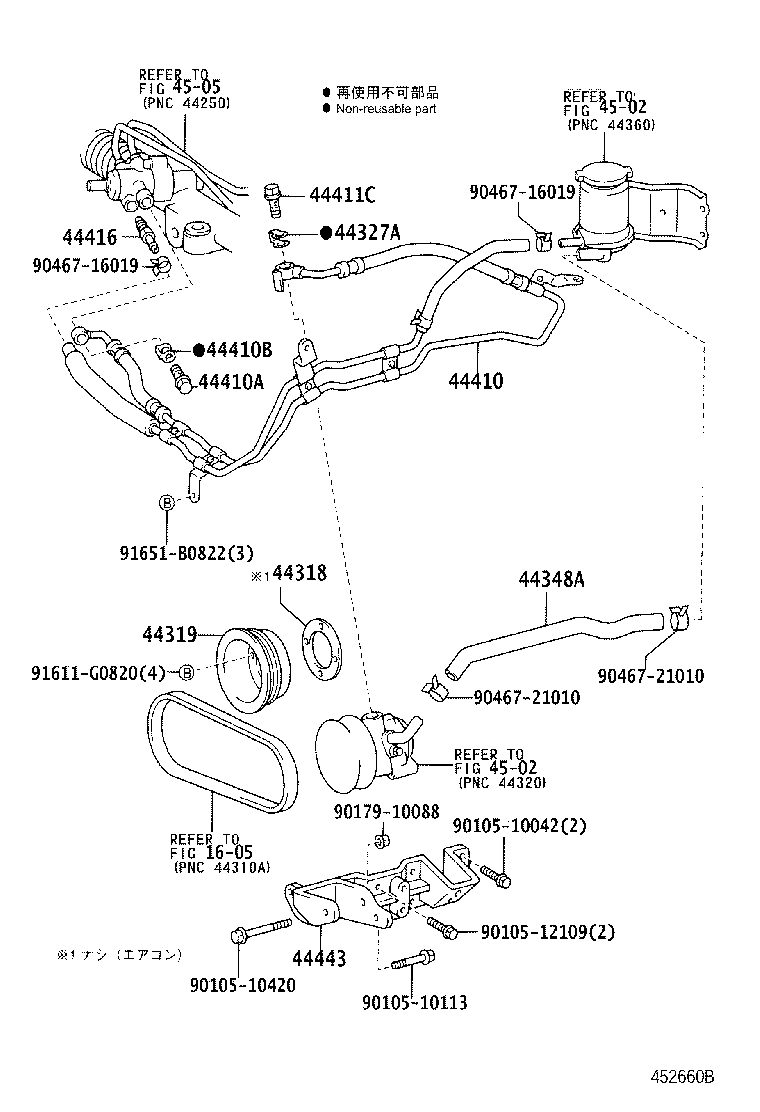

(0107- )DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-26010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-26020 |
RZY220,230 |
1 | ||
| 44319-26040 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-26020 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 44327-30040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-25060 |
RZY220,230 |
1 | ||
| 44348-25070 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-25150 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 44410-25200 |
TRY220,23#,281 |
1 | ||
| 44410-25130 |
RZY220,230 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 44327-30030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16034 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-26080 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-26031 |
RZY220,230 |
1 | ||
| 44443-25030 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| Common parts | ||||
| 90105-10042 | ||||
| 90105-10113 | ||||
| 90105-10420 | ||||
| 90105-12109 | ||||
| 90179-10088 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91611-G0820 | ||||
| 91651-B0822 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4502 | ||||
| 4505 | ||||

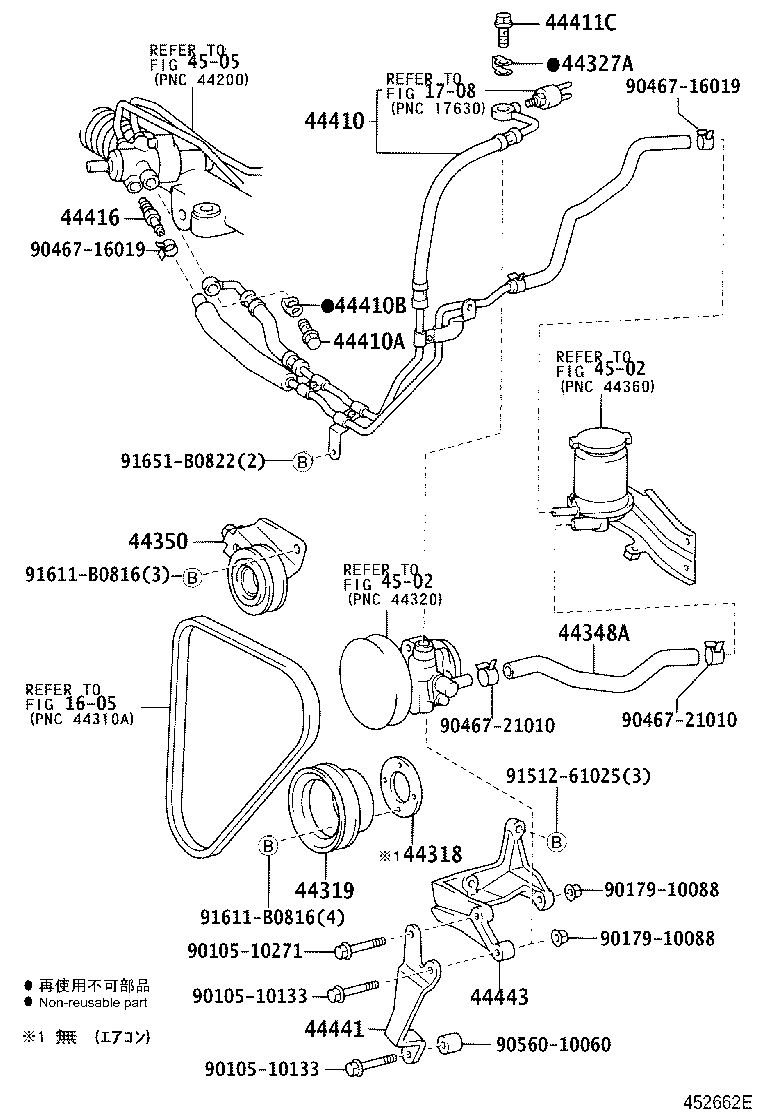

(0107- )RZY220,230
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-26010 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-26020 |
RZY220,230 |
1 | ||
| 44319-26040 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-26020 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 44327-30040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-25060 |
RZY220,230 |
1 | ||
| 44348-25070 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-26010 |
RZY220,230 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-25150 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 44410-25200 |
TRY220,23#,281 |
1 | ||
| 44410-25130 |
RZY220,230 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 44327-30030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16034 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-26080 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-26010 |
RZY220,230 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-26031 |
RZY220,230 |
1 | ||
| 44443-25030 |
LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL |
1 | ||
| Common parts | ||||
| 90105-10133 | ||||
| 90105-10271 | ||||
| 90179-10088 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 90560-10060 | ||||
| 91512-61025 | ||||
| 91611-B0816 | ||||
| 91651-B0822 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1708 | ||||
| 4502 | ||||
| 4505 | ||||

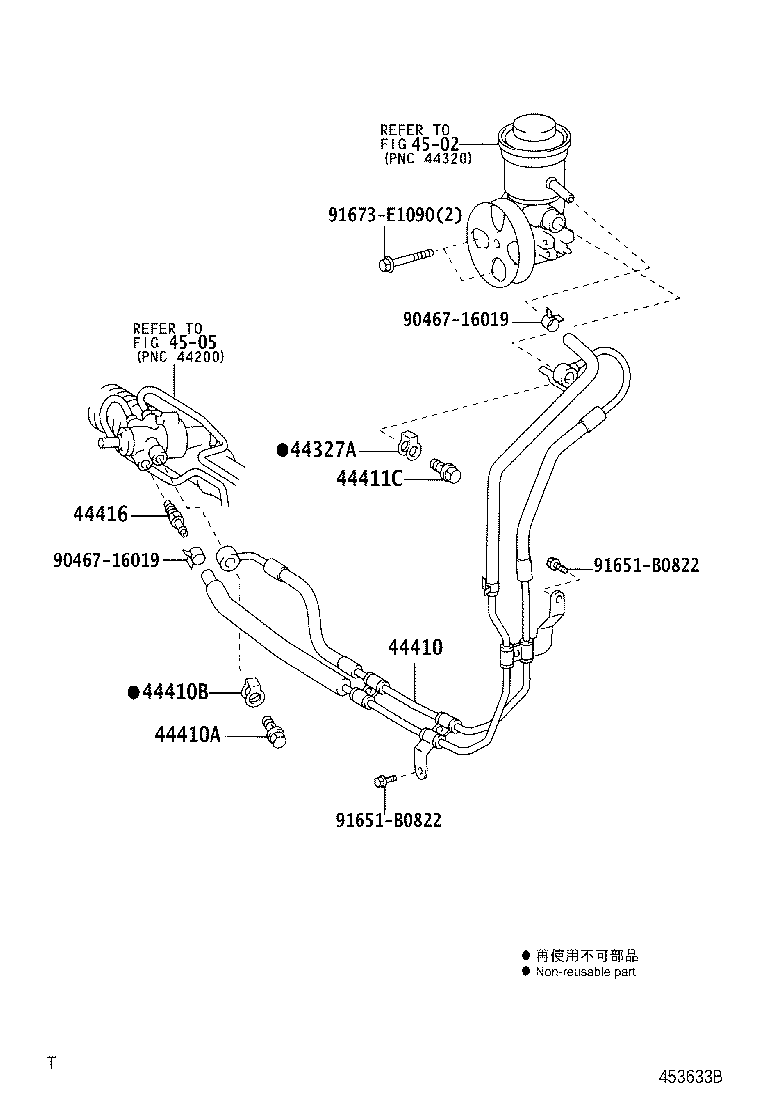

(0308- )TRY220,23#,281
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-26020 |
LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| 44327-30040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-25150 |
LY220,230,240,270,280,290..DSL |
1 | ||
| 44410-25200 |
TRY220,23#,281 |
1 | ||
| 44410-25130 |
RZY220,230 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 44327-30030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16034 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-26080 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 |
1 | ||
| Common parts | ||||
| 90467-16019 | ||||
| 91651-B0822 | ||||
| 91673-E1090 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
