LY230-PGMES (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )TW1,TW2,TW3,TW4

Click highlighted areas on diagram

diagram 74815A 9015960072
Part # Description Qty Price
74815A - BAR, SEPARATOR
74815-37090

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

 1
Common parts
90159-60072

(0107- )TW1,TW2,TW3,TW4,VAN

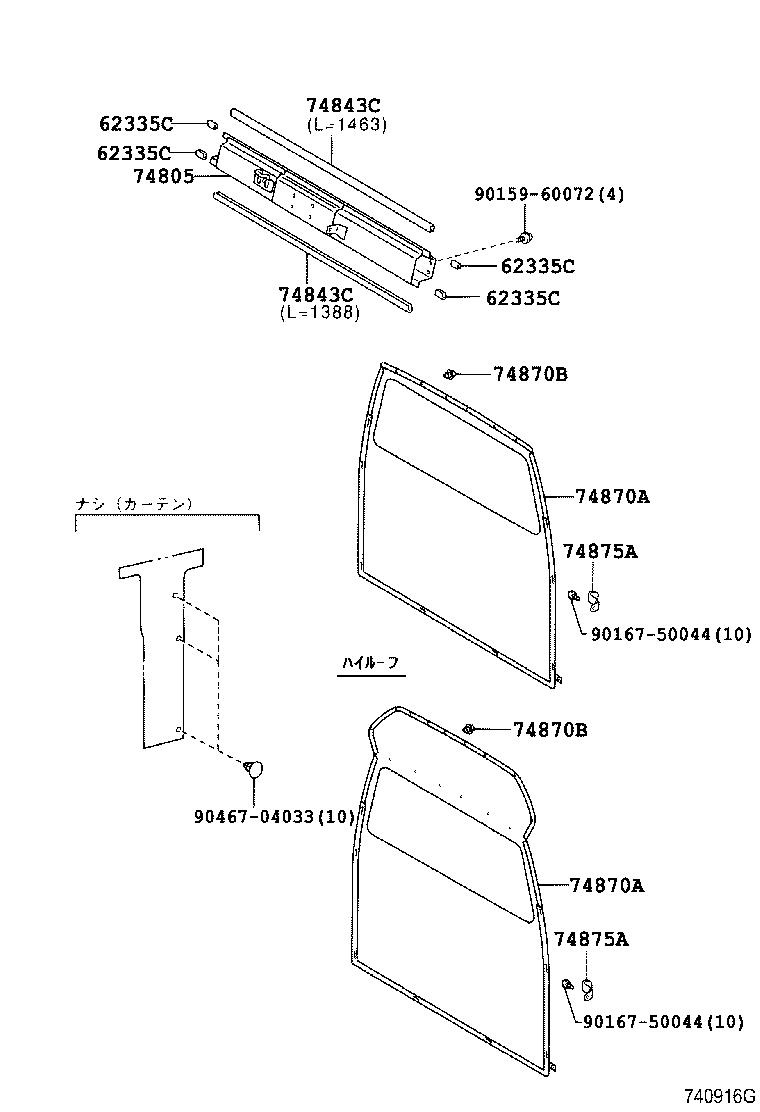

Click highlighted areas on diagram

diagram 62335C 62335C 62335C 62335C 74805 74843C 74843C 74870A 74870A 74870B 74870B 74875A 74875A 9015960072 9016750044 9016750044 9046704033
Part # Description Qty Price
62335C - COVER, SEPARATOR BAR
62335-37010B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN

MD.CHARCOAL,TRIM1#

 4
62335C - COVER, SEPARATOR BAR
62335-37010B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN

MD.CHARCOAL,TRIM1#

 4
62335C - COVER, SEPARATOR BAR
62335-37010B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN

MD.CHARCOAL,TRIM1#

 4
62335C - COVER, SEPARATOR BAR
62335-37010B0

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN

MD.CHARCOAL,TRIM1#

 4
74805 - SEPARATOR SUB-ASSY
74805-37110

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

 1
74843C - TRIM, SEPARATOR, UPPER REAR
74843-37010B0

LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN

MD.CHARCOAL,TRIM1#,長さ=1463

 1
74843-37020B0

LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN

MD.CHARCOAL,TRIM1#,長さ=1388

 1
74843C - TRIM, SEPARATOR, UPPER REAR
74843-37010B0

LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN

MD.CHARCOAL,TRIM1#,長さ=1463

 1
74843-37020B0

LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN

MD.CHARCOAL,TRIM1#,長さ=1388

 1
Common parts
90159-60072
90167-50044
90467-04033
