LY220-TLMGS3 (2001)
Toyota Dyna/Toyoace

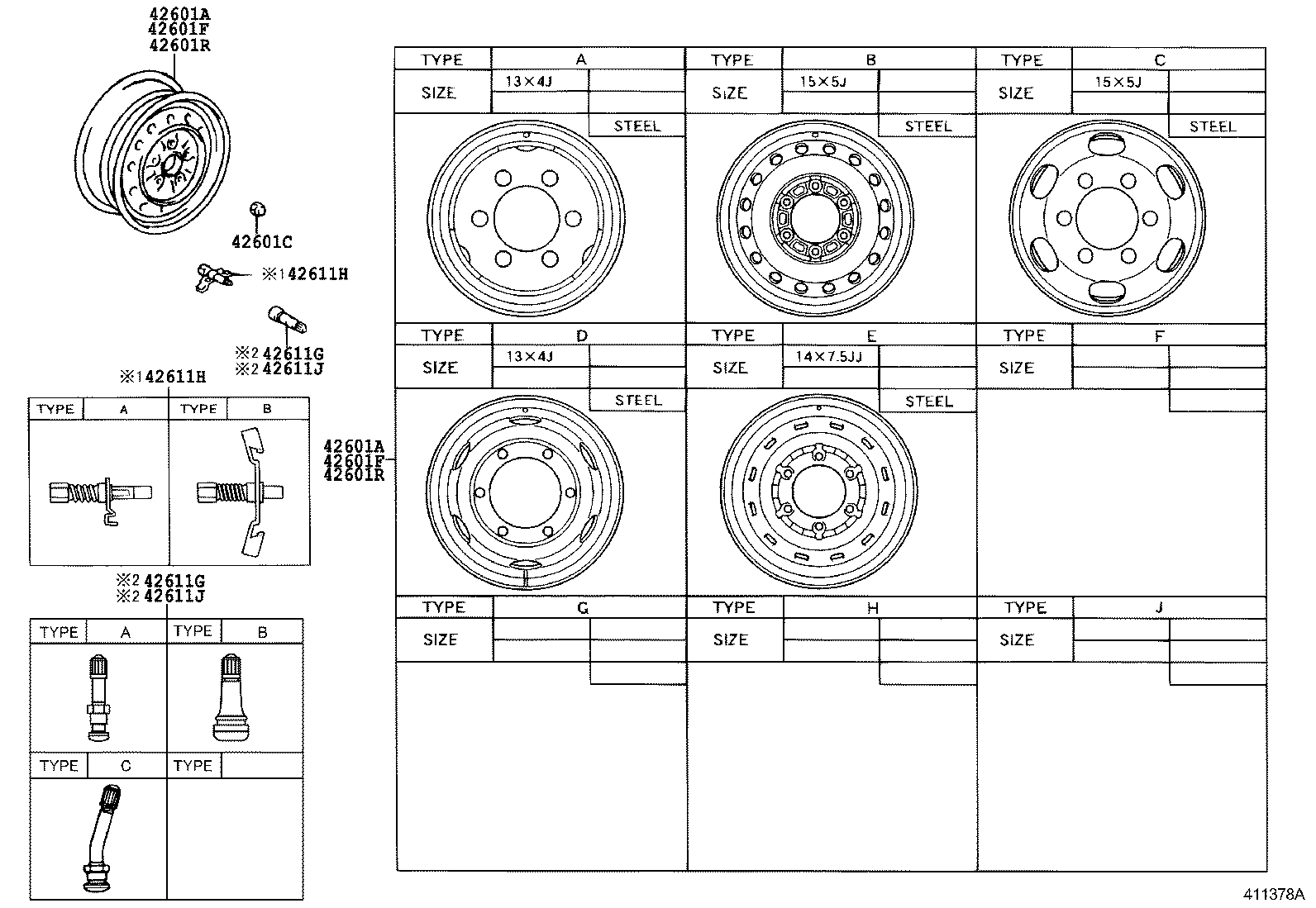

ILLUST NO. 1 OF 3(0107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-25040 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT 13X4J,#,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42601-26310 |
KDY221..T2..WT..IV3;KDY231..T2..MTM..WT;KDY231..T2..ATM..WT..(IV3,IV6);KDY220,230,LY220,230,RZY220,230,TRY220,230..T2..15T..WT 13X4J,#,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2,T3,TW1,TW2,TW3 15X5J,#,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-25040 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT 13X4J,#,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42601-26310 |
KDY221..T2..WT..IV3;KDY231..T2..MTM..WT;KDY231..T2..ATM..WT..(IV3,IV6);KDY220,230,LY220,230,RZY220,230,TRY220,230..T2..15T..WT 13X4J,#,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2,T3,TW1,TW2,TW3 15X5J,#,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01099 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT ﾘﾔ右側 |
6 | ||
| 90942-01051 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT ﾌﾛﾝﾄ |
12 | ||
| 90942-01100 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT ﾘﾔ左側 |
6 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42611-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2,T3,TW1,TW2,TW3 15X5J,#,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42611-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2,T3,TW1,TW2,TW3 15X5J,#,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42611-25040 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT 13X4J,#,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42601-26310 |
KDY221..T2..WT..IV3;KDY231..T2..MTM..WT;KDY231..T2..ATM..WT..(IV3,IV6);KDY220,230,LY220,230,RZY220,230,TRY220,230..T2..15T..WT 13X4J,#,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42611-25040 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT 13X4J,#,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42601-26310 |
KDY221..T2..WT..IV3;KDY231..T2..MTM..WT;KDY231..T2..ATM..WT..(IV3,IV6);KDY220,230,LY220,230,RZY220,230,TRY220,230..T2..15T..WT 13X4J,#,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90942-05023 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌﾛﾝﾄ |
2 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90942-05023 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌﾛﾝﾄ |
2 | ||
| 42611H - EXTENSION, VALVE | ||||
| 90942-05015 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90942-05022 |
KDY221..T2..WT..IV3;KDY231..T2..MTM..WT;KDY231..T2..ATM..WT..(IV3,IV6);KDY220,230,LY220,230,RZY220,230,TRY220,230..T2..15T..WT TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 42611H - EXTENSION, VALVE | ||||
| 90942-05015 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90942-05022 |
KDY221..T2..WT..IV3;KDY231..T2..MTM..WT;KDY231..T2..ATM..WT..(IV3,IV6);KDY220,230,LY220,230,RZY220,230,TRY220,230..T2..15T..WT TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
KDY231,TRY230..TW2..TB;KDY231,TRY230..T2..WT..(CBU,IV3);KDY22#,230,LY220,230,RZY220,230,TRY220..(T2,TW2)..WT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 90942-05023 |
LY280..ST;KDY221..1T..CBU;KDY231..ATM..ST..CBU;KDY270,281..T3,TW1,TW3;KDY231..(T2,T3,TW3)..MTM;KDY22#,LY220,RZY220,TRY220..T3;KDY231..(T2,T3)..ATM..(IV3,IV6);KDY221..(T2,TW1)..(15T,1T)..IV3;KDY220,LY220,RZY220,TRY220..(T2,TW1)..(15T,1T);KDY230,271,280,LY230,270,RZY230,TRY230..(T2,T3,TW1,TW3)..(125T,15T,1T) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90942-05023 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
KDY231,TRY230..TW2..TB;KDY231,TRY230..T2..WT..(CBU,IV3);KDY22#,230,LY220,230,RZY220,230,TRY220..(T2,TW2)..WT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 90942-05023 |
LY280..ST;KDY221..1T..CBU;KDY231..ATM..ST..CBU;KDY270,281..T3,TW1,TW3;KDY231..(T2,T3,TW3)..MTM;KDY22#,LY220,RZY220,TRY220..T3;KDY231..(T2,T3)..ATM..(IV3,IV6);KDY221..(T2,TW1)..(15T,1T)..IV3;KDY220,LY220,RZY220,TRY220..(T2,TW1)..(15T,1T);KDY230,271,280,LY230,270,RZY230,TRY230..(T2,T3,TW1,TW3)..(125T,15T,1T) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90942-05023 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||

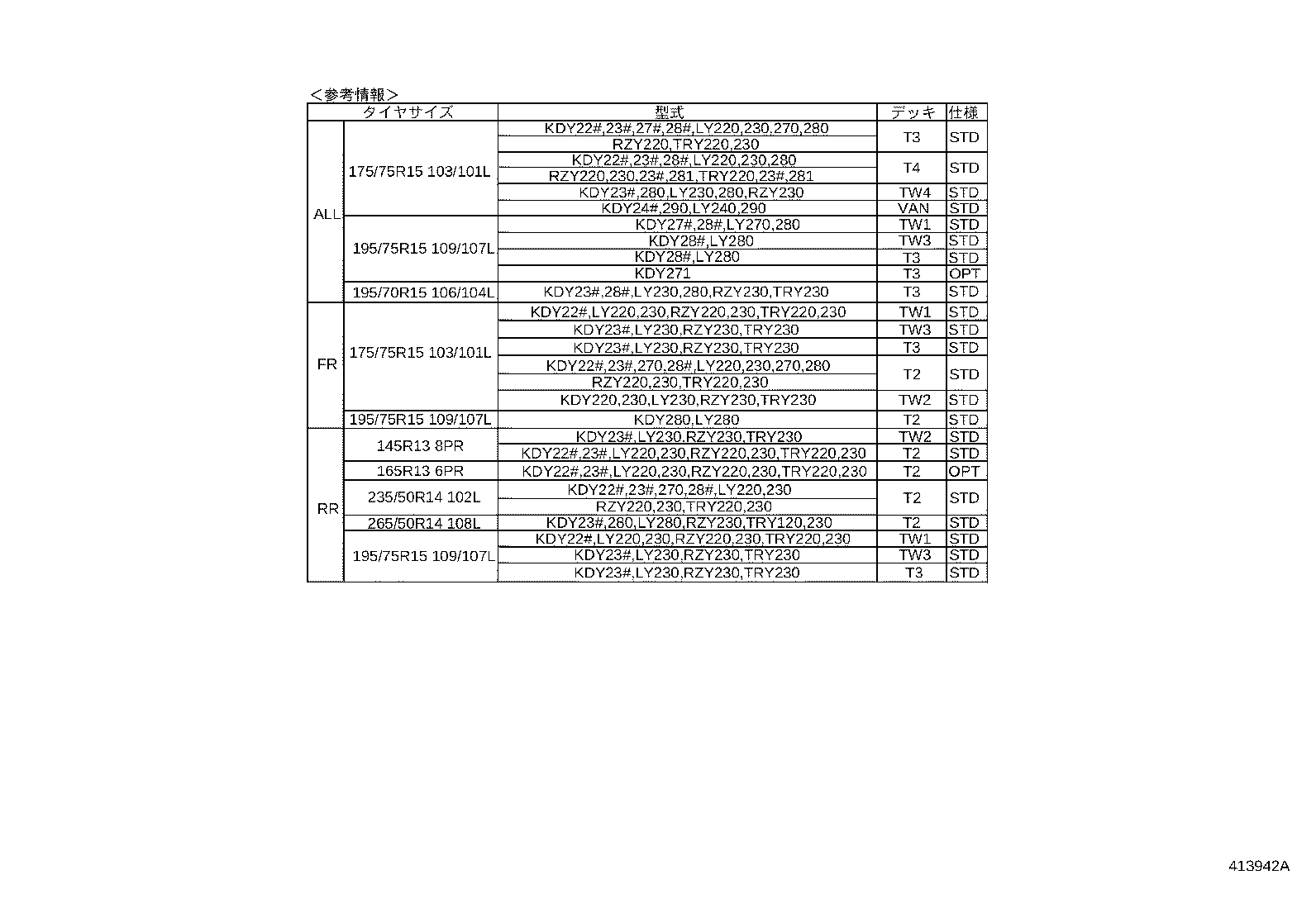

ILLUST NO. 2 OF 3(0107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03079 | ||||
| 90942-03080 | ||||
| 90942-03081 | ||||
| 90942-03082 | ||||
| 90942-03083 | ||||
| 90942-03084 | ||||
| 90942-03085 | ||||
| 90942-03107 | ||||
| 90942-03218 | ||||
| 90942-03219 | ||||
| 90942-03220 | ||||
| 90942-03221 | ||||
| 90942-03222 | ||||
| 90942-03223 | ||||
| 90942-03224 | ||||
| 90942-03225 | ||||
| 90942-03360 | ||||
| 90942-03361 | ||||
| 90942-03362 | ||||
| 90942-03363 | ||||
| 90942-03364 | ||||
| 90942-03365 | ||||
| 90942-03366 | ||||
| 90942-03367 | ||||
| 90942-03368 | ||||
| 90942-03369 | ||||
ILLUST NO. 3 OF 3(0107- )
