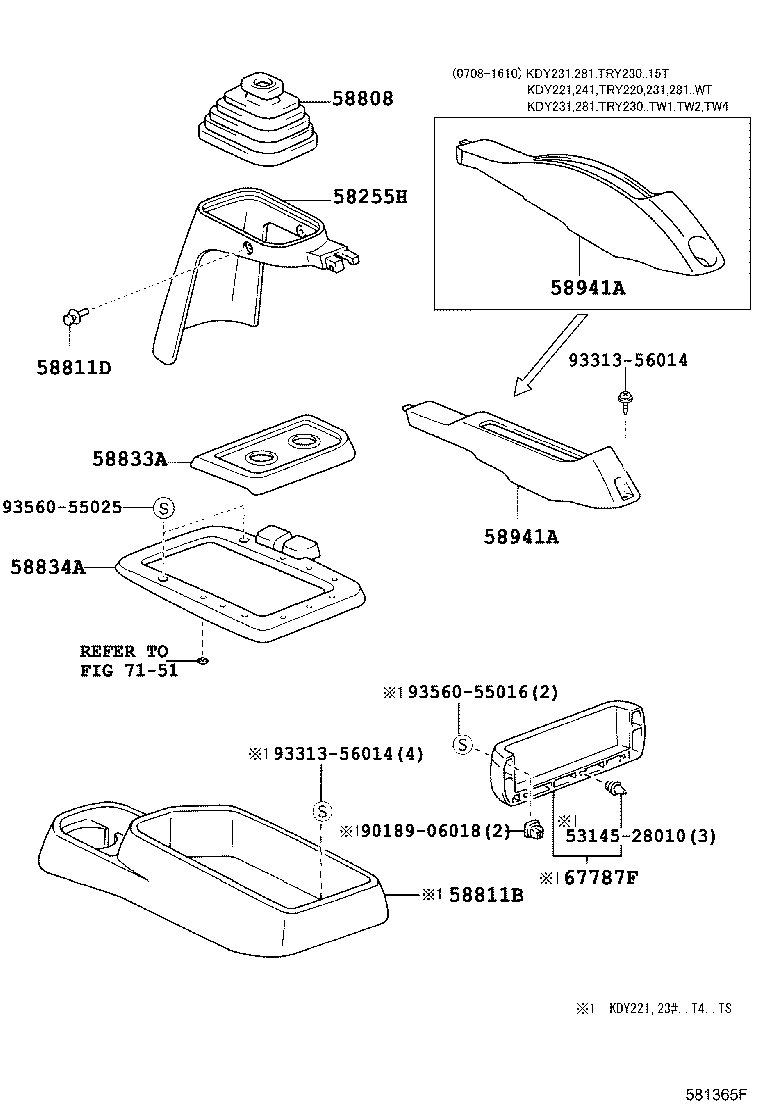

Toyota Dyna/toyoace LY220 CONSOLE BOX & BRACKET

Part #	Description	Period	Qty
58255H - COVER, SHIFT LEVER BOOT
58255-37020B0	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 DK.CHARCOAL,TRIM1#	07/2001 - 09/2009	1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-37020B0	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM DK.CHARCOAL,TRIM1#	07/2001 - 09/2009	1
58811D - CLIP(FOR CONSOLE BOX)
90467-07191B0	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 DK.CHARCOAL,TRIM1#	07/2001 - 05/2015	3
58833A - COVER, CONSOLE, UPPER
58839-95400B0	KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1#	07/2001 - 09/2009	1
58834A - COVER, CONSOLE, LOWER
58834-25020B0	KDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) MD.CHARCOAL,TRIM1#	07/2001 - 09/2009	1
58941A - COVER, PARKING BRAKE HOLE
58941-37010B0	KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281 DK.CHARCOAL,TRIM1#	07/2001 - 09/2009	1
58941A - COVER, PARKING BRAKE HOLE
58941-37010B0	KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281 DK.CHARCOAL,TRIM1#	07/2001 - 09/2009	1
Common parts
53145-28010
90189-06018
93313-56014
93560-55016
93560-55025
Linked diagrams
7151

LY220-TLMES (2001)
