LY220-TLMES (2001)
Toyota Dyna/Toyoace

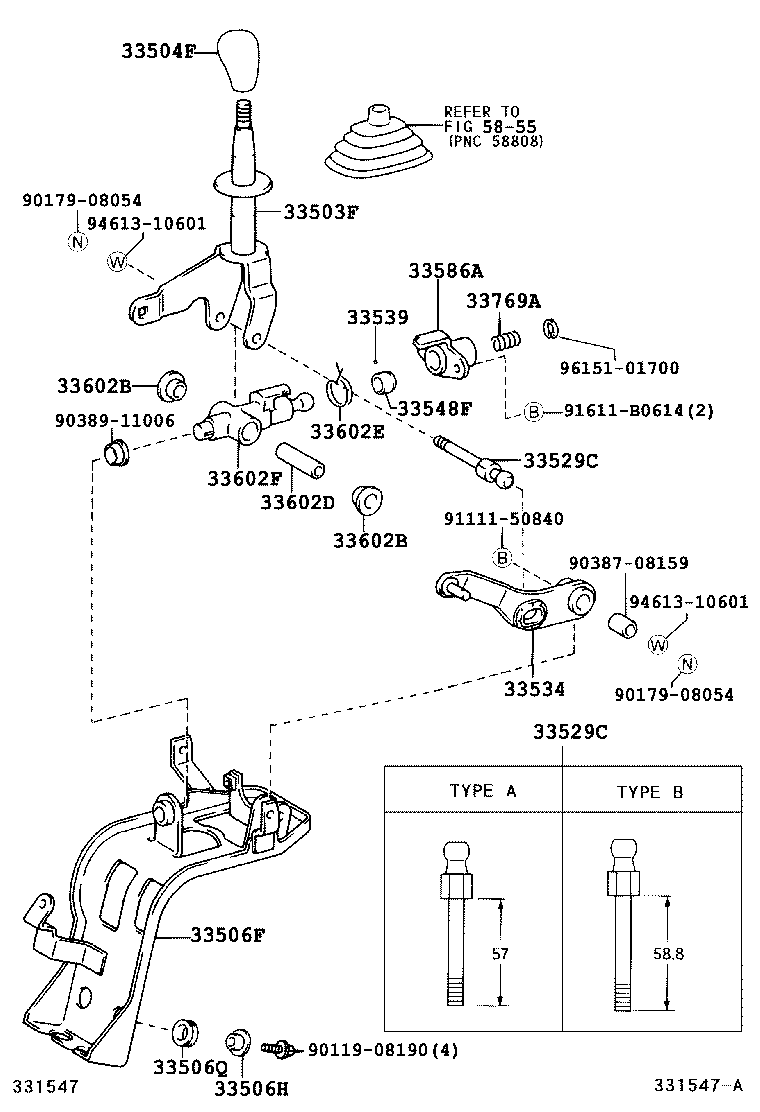

ILLUST NO. 1 OF 2(0107- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-37050 |
KDY221..T3..TS..MTM;KDY221..(T2,T4,TW1)..MTM;KDY231,TRY230..TW2..TB..MTM;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..MTM;KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..MTM ｱﾘ(ｶﾄｳｼｷ ｼﾌﾄ ﾚﾊﾞ-) |
1 | ||
| 33055-37060 |
KDY221,23#..T4..TB..MTM;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..MTM;KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-35030B3 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM DK.CHARCOAL,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-37031 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33577-37060 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
4 | ||
| 33529C - BOLT, SHIFT LEVER | ||||
| 33529-37020 |
KDY221..T3..TS..MTM;KDY221..(T2,T4,TW1)..MTM;KDY231,TRY230..TW2..TB..MTM;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..MTM;KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 33529-37030 |
TRY230..TB..125T;KDY230..T4..TB..MTM;KDY221..(T2,T4)..TB;KDY231..(T4,TW2)..TB..MTM;KDY221..(T2,T3,TW1)..TS..MTM;KDY231..(T2,T3,TW3,TW4)..MTM;TRY230..(T2,T3,T4,TW1,TW3)..MTM;KDY230..(T2,T3,TW2,TW3,TW4)..MTM;KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..MTM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 33529C - BOLT, SHIFT LEVER | ||||
| 33529-37020 |
KDY221..T3..TS..MTM;KDY221..(T2,T4,TW1)..MTM;KDY231,TRY230..TW2..TB..MTM;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..MTM;KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 33529-37030 |
TRY230..TB..125T;KDY230..T4..TB..MTM;KDY221..(T2,T4)..TB;KDY231..(T4,TW2)..TB..MTM;KDY221..(T2,T3,TW1)..TS..MTM;KDY231..(T2,T3,TW3,TW4)..MTM;TRY230..(T2,T3,T4,TW1,TW3)..MTM;KDY230..(T2,T3,TW2,TW3,TW4)..MTM;KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281..MTM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-37060 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT) | ||||
| 33586-37020 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..MTM |
1 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
2 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
2 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08063 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90949-03034 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33769A - SPRING, CROSS SHAFT END | ||||
| 33769-37020 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..MTM |
1 | ||
| Common parts | ||||
| 90119-08190 | ||||
| 90179-08054 | ||||
| 90387-08159 | ||||
| 90389-11006 | ||||
| 91111-50840 | ||||
| 91611-B0614 | ||||
| 94613-10601 | ||||
| 96151-01700 | ||||
| Linked diagrams | ||||
| 5855 | ||||

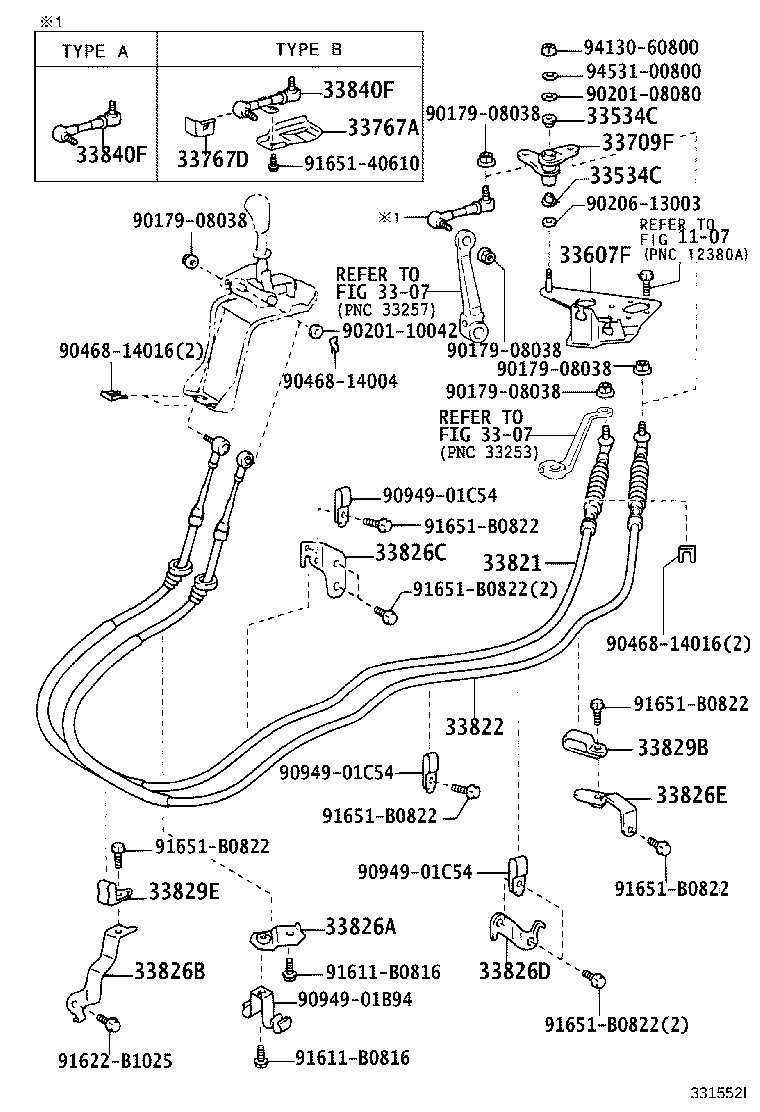

ILLUST NO. 2 OF 2(0107- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-13192 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-13192 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
2 | ||
| 33607F - SUPPORT SUB-ASSY, CONTROL ROD (FOR FLOOR SHIFT) | ||||
| 33607-25090 |
KDY23#,LY230,RZY230,TRY230..MTM..(12T,15T,175T);KDY22#,24#,LY220,240,RZY220,231,TRY220,231..MTM..WT;KDY23#,LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T |
1 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33709-25190 |
LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-25010 |
LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-25010 |
LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,280,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37180 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-25010 |
TRY231,281;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33827-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-25050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33829E - BRACKET, TRANSMISSION CONTROL CABLE | ||||
| 33829-25080 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-25110 |
LY230..TW1;LY230..MTM..LPG;LY220..125T..WT;LY230..TB..125T..ST;KDY220,230..MTM..(125T,1T)..ST;KDY270,280,290,LY270,280,290,RZY220,230,281..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-25110 |
LY230..TW1;LY230..MTM..LPG;LY220..125T..WT;LY230..TB..125T..ST;KDY220,230..MTM..(125T,1T)..ST;KDY270,280,290,LY270,280,290,RZY220,230,281..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90201-08080 | ||||
| 90201-10042 | ||||
| 90206-13003 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01B94 | ||||
| 90949-01C54 | ||||
| 91611-B0816 | ||||
| 91622-B1025 | ||||
| 91651-40610 | ||||
| 91651-B0822 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 3307 | ||||
