LY220-PSMBS (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0308)

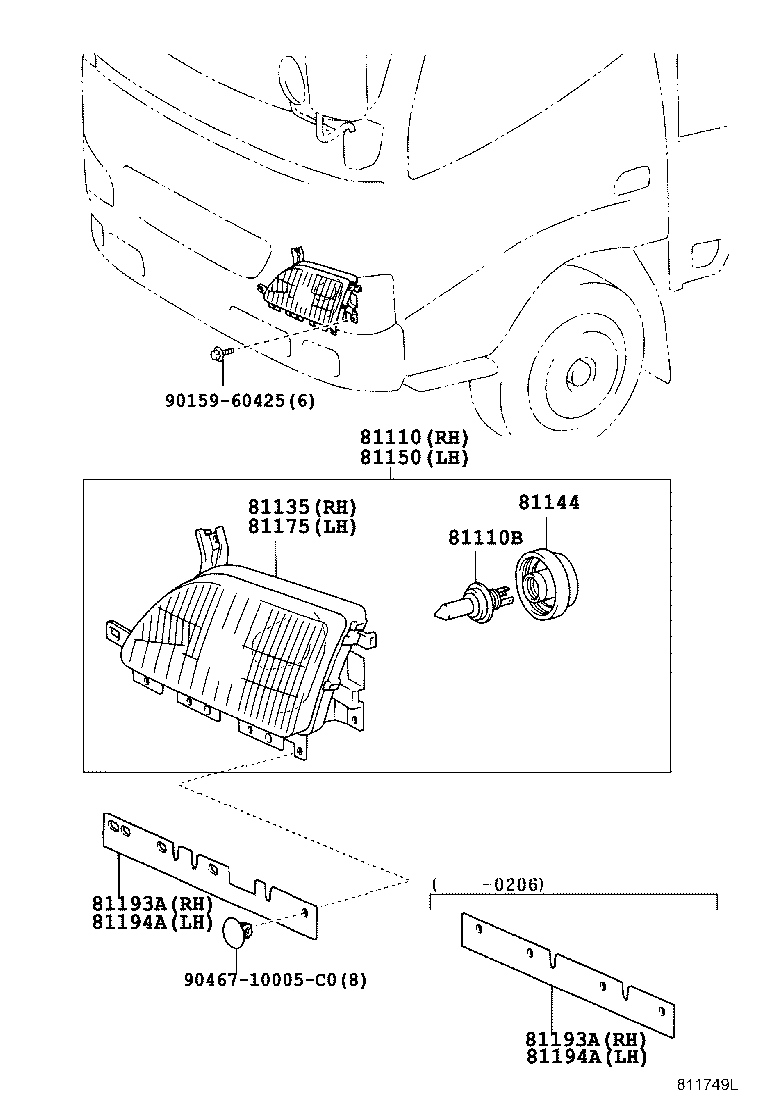

Click highlighted areas on diagram

diagram 81110 81110B 81135 81144 81150 81175 81193A 81193A 81194A 81194A 9015960425 9046710005C0
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-37170

LY220,230,240,270,280,290,RZY220,230

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

LY220,230,240,270,280,290,RZY231,281,TRY220,230

12V 60/55W,ﾊﾛｹﾞﾝ

 2
90981-13058

TRY230..ST..IV6;TRY230..TB..125T;TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3);LY220,230,240,270,280,290,RZY231,281,TRY220

12V 60/55W,ﾊﾛｹﾞﾝ

 2
90981-13058

LY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL

12V 60/55W,ﾊﾛｹﾞﾝ

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-37170

LY220,230,240,270,280,290,RZY220,230

 1
81144 - COVER, HEADLAMP, NO.1
81139-37110

LY220,230,240,270,280,290,RZY220,230

 2
81150 - HEADLAMP ASSY, LH
81150-37171

LY220,230,240,270,280,290,RZY220,230

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-37171

LY220,230,240,270,280,290,RZY220,230

 1
81193A - PROTECTOR, HEADLAMP, RH
81193-37040

LY220,230,240,270,280,290

 1
81193-37050

LY220,230,240,270,280,290,RZY220,230

 1
81193-37011

LY220,230,240,270,280,290,RZY220,230

 1
81193A - PROTECTOR, HEADLAMP, RH
81193-37040

LY220,230,240,270,280,290

 1
81193-37050

LY220,230,240,270,280,290,RZY220,230

 1
81193-37011

LY220,230,240,270,280,290,RZY220,230

 1
81194A - PROTECTOR, HEADLAMP, LH
81194-37012

LY220,230,240,270,280,290,RZY220,230

 1
81193-37040

LY220,230,240,270,280,290

 1
81193-37050

LY220,230,240,270,280,290,RZY220,230

 1
81194A - PROTECTOR, HEADLAMP, LH
81194-37012

LY220,230,240,270,280,290,RZY220,230

 1
81193-37040

LY220,230,240,270,280,290

 1
81193-37050

LY220,230,240,270,280,290,RZY220,230

 1
Common parts
90159-60425
90467-10005C0
