LY220-PSMBS (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )TW1,TW2,TW3,TW4,VAN

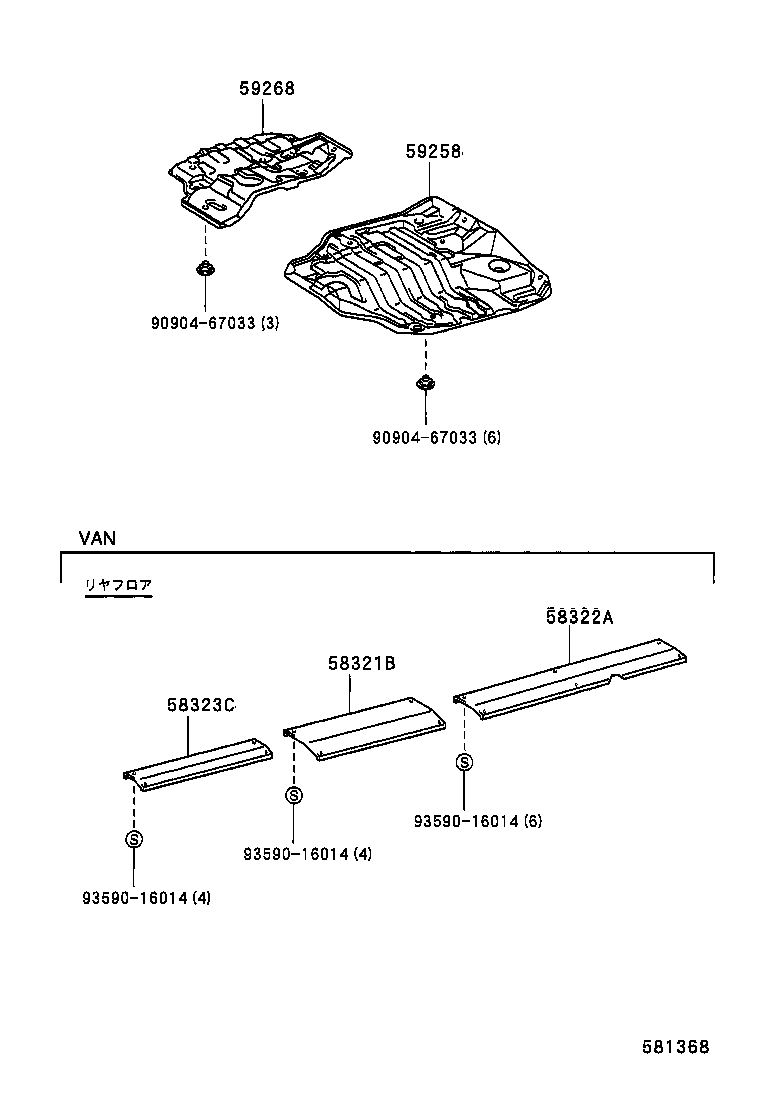

Click highlighted areas on diagram

diagram 58321B 58322A 58323C 59258 59268 9090467033 9090467033 9359016014 9359016014 9359016014
Part # Description Qty Price
59258 - INSULATOR, ENGINE SERVICE HOLE COVER MAIN
59258-37050

LY230,280..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);LY220,230,240,270,280,290,RZY220..TW1,TW2,TW3,TW4,VAN

 1
59258-37111

KDY23#,28#,LY230,280,TRY230..IV6;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,TRY220,230..TW1,TW2,TW3,TW4,VAN

 1
59258-37110

LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);LY220,230,240,270,280,290,RZY220,TRY220,230..TW1,TW2,TW3,TW4,VAN

 1
59268 - INSULATOR, ENGINE SUB COVER
59268-37061

LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);LY220,230,240,270,280,290,RZY220,TRY220,230..TW1,TW2,TW3,TW4,VAN

 1
59268-37062

LY230,280,TRY230..IV6;LY220,230,240,270,280,290,TRY220,230..TW1,TW2,TW3,TW4,VAN

 1
59268-37060

LY230,280..IV6;LY220,230,240,270,280,290,RZY220,230..TW1,TW2,TW3,TW4,VAN

 1
Common parts
90904-67033
93590-16014
