LY220-PSMBS (2001)
Toyota Dyna/Toyoace

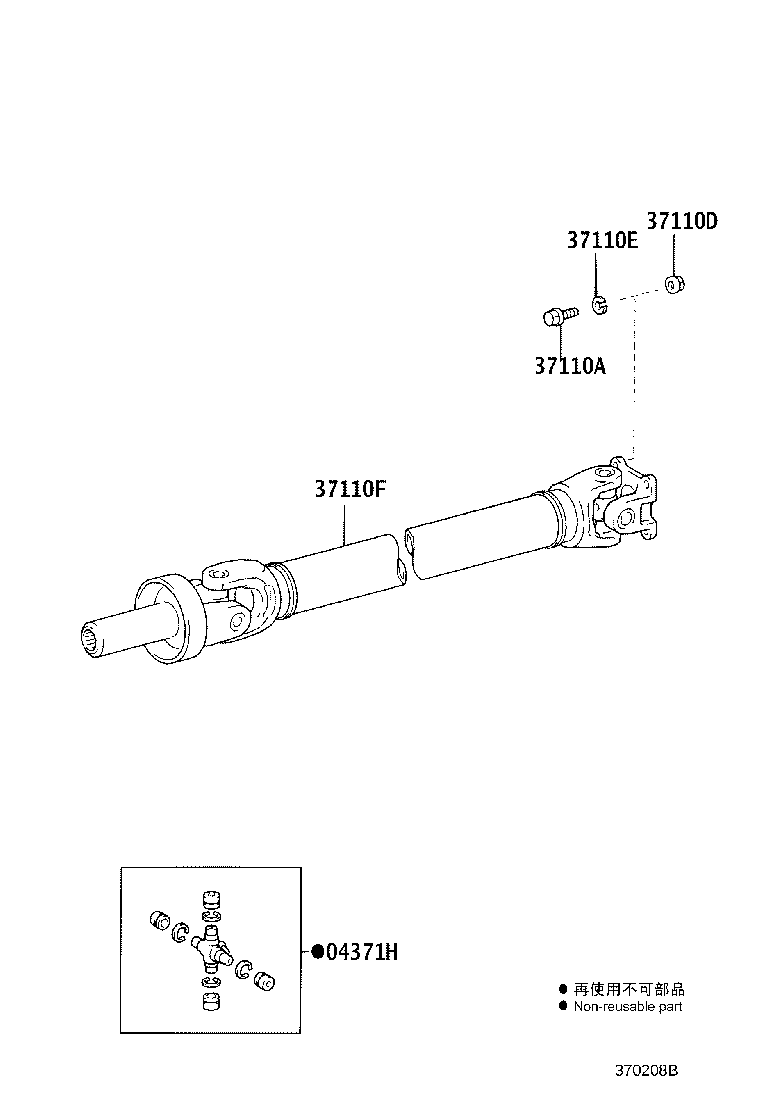

(0107-0210)LY220,RZY220..ST ; (0107-0210)LY230,RZY230..T2,T3,TW3..125T,1T
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-60070 |
LY220..125T..ST;LY230..125T..WT;LY280..MTM..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL;LY220,280..(T2,T3,T4,TW1)..MTM..(12T,15T,1T);KDY22#,23#,24#,27#,28#,LY240,RZY231,281,TRY220,23#,281 |
2 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
LY230..TB..125T..ST;TRY230..(T2,TW2)..WT;KDY23#,LY230,RZY230..(T2,TW2)..TB..WT;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY23#,280,LY230,280,RZY230..(T2,T3,TW3)..TS;KDY22#,27#,LY220,270,RZY220,TRY220..T2,T3,TW1 *10−1.00PX27−13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
LY230,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,LY220,RZY220,TRY220..(125T,1T)..ST 高さ=9 |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
LY230,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,LY220,RZY220,TRY220..(125T,1T)..ST |
4 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-25540 |
LY220,RZY220,TRY220..MTM..ST |
1 | ||

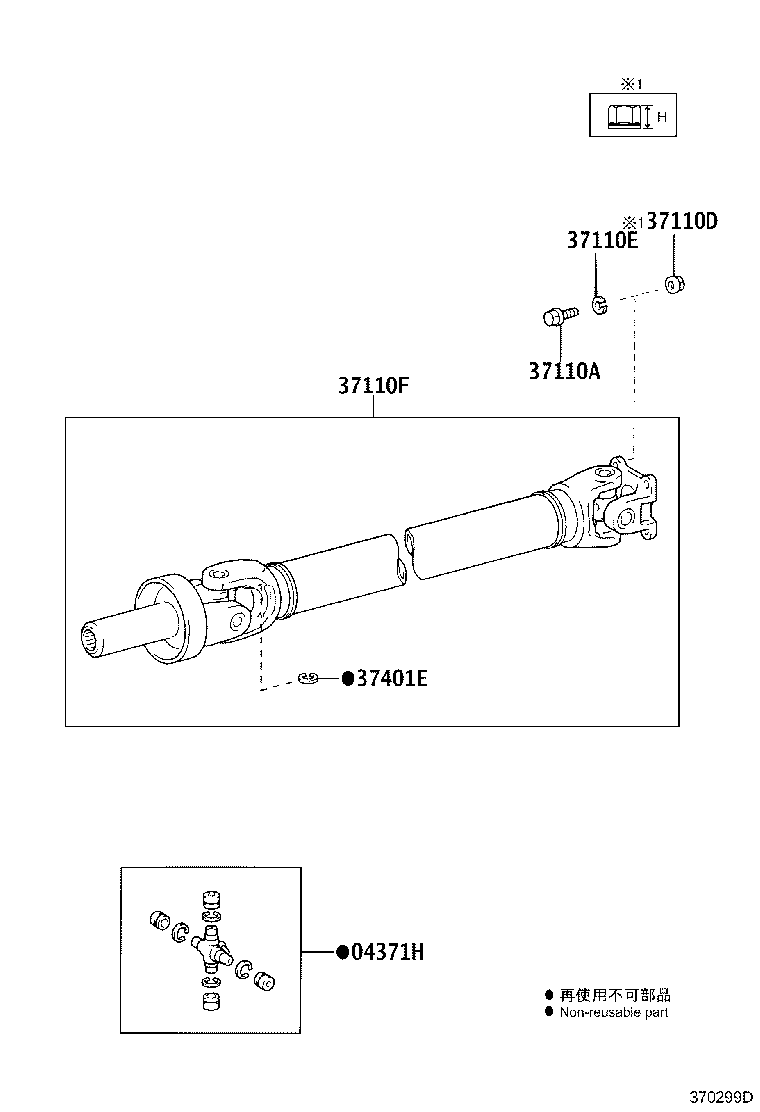

(0210- )LY230,RZY230,TRY230..T2,T3,TW3..125T,1T ; (0210- )KDY22#,23#,LY220,RZ
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-60070 |
LY220..125T..ST;LY230..125T..WT;LY280..MTM..125T..WT;LY230..(T2,T3,TW3)..TS;LY230..TB..(12T,15T,175T)..DSL;LY220,280..(T2,T3,T4,TW1)..MTM..(12T,15T,1T);KDY22#,23#,24#,27#,28#,LY240,RZY231,281,TRY220,23#,281 |
2 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
LY230..TB..125T..ST;TRY230..(T2,TW2)..WT;KDY23#,LY230,RZY230..(T2,TW2)..TB..WT;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY23#,280,LY230,280,RZY230..(T2,T3,TW3)..TS;KDY22#,27#,LY220,270,RZY220,TRY220..T2,T3,TW1 *10−1.00PX27−13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
LY230,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,LY220,RZY220,TRY220..(125T,1T)..ST 高さ=9 |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
LY230,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,LY220,RZY220,TRY220..(125T,1T)..ST |
4 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-25540 |
LY220,RZY220,TRY220..MTM..ST |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-25039 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.29,ﾏｰｸ 1 |
8 | ||
| 90520-25042 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.35,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-25041 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.33,ﾏｰｸ無 |
8 | ||
| 90520-25043 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.37,ﾌﾞﾙｰ |
8 | ||
| 90520-25046 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.43,ﾏｰｸ 8 |
8 | ||
| 90520-25044 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.39,ﾏｰｸ 6 |
8 | ||
| 90520-25045 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.41,ﾏｰｸ 7 |
8 | ||
| 90520-25050 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.51,ﾏｰｸ B |
8 | ||
| 90520-25047 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.45,ﾏｰｸ 9 |
8 | ||
| 90520-25040 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.31,ﾏｰｸ 2 |
8 | ||
| 90520-25052 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.55,ﾏｰｸ D |
8 | ||
| 90520-25049 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.49,ﾏｰｸ A |
8 | ||
| 90520-25051 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.53,ﾏｰｸ C |
8 | ||
| 90520-25048 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.47,ﾏｰｸ 10 |
8 | ||
| 90520-25056 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.23,ﾏｰｸ F |
8 | ||
| 90520-25058 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.27,ﾏｰｸ H |
8 | ||
| 90520-25054 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.19,ﾏｰｸ D |
8 | ||
| 90520-25055 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.21,ﾏｰｸ E |
8 | ||
| 90520-25053 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.57,ﾏｰｸ E |
8 | ||
| 90520-25057 |
LY280..ATM;LY280..MTM..(125T,1T)..ST;TRY230..(T2,T3,TW3)..TS..ST;LY220,230,240,290,RZY220,230;KDY22#,23#,LY270,TRY220..(125T,12T,1T)..ST 厚さ=2.25,ﾏｰｸ G |
8 | ||
