Toyota Dyna/toyoace LY220 ALTERNATOR

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-54340	5L..LY220,230,240,270,280,290..CBU,IV3 12V 70A	07/2001 - 08/2004	1
27020E - BOLT(FOR ALTERNATOR)
90105-10287	5L..LY220,230,240,270,280,290	07/2001 - 08/2004	1
27330 - ROTOR ASSY, ALTERNATOR
27330-64190	5L..LY220,230,240,270,280,290..CBU,IV3 12V 70A	07/2001 - 08/2004	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080	5L..LY220,230,240,270,280,290..CBU,IV3 12V 70A	07/2001 - 08/2004	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	5L..LY220..15T,1T;5L..LY220..125T..ST;5L..LY230..125T..WT;5L..LY240,270,280,290;2KDFTV..KDY230..T4..TS;5L..LY230..(T2,T3,TW3)..TS;5L..LY230..TB..(12T,15T,175T);1RZE..RZY220,230..TB..15T..WT..IV3 12V 90A	07/2001 - 08/2007	1
27700A - REGULATOR ASSY, GENERATOR
27700-50030	5L..LY220,230,240,270,280,290..CBU,IV3 12V 70A	07/2001 - 08/2004	1
Common parts
90119-08654
94150-80600

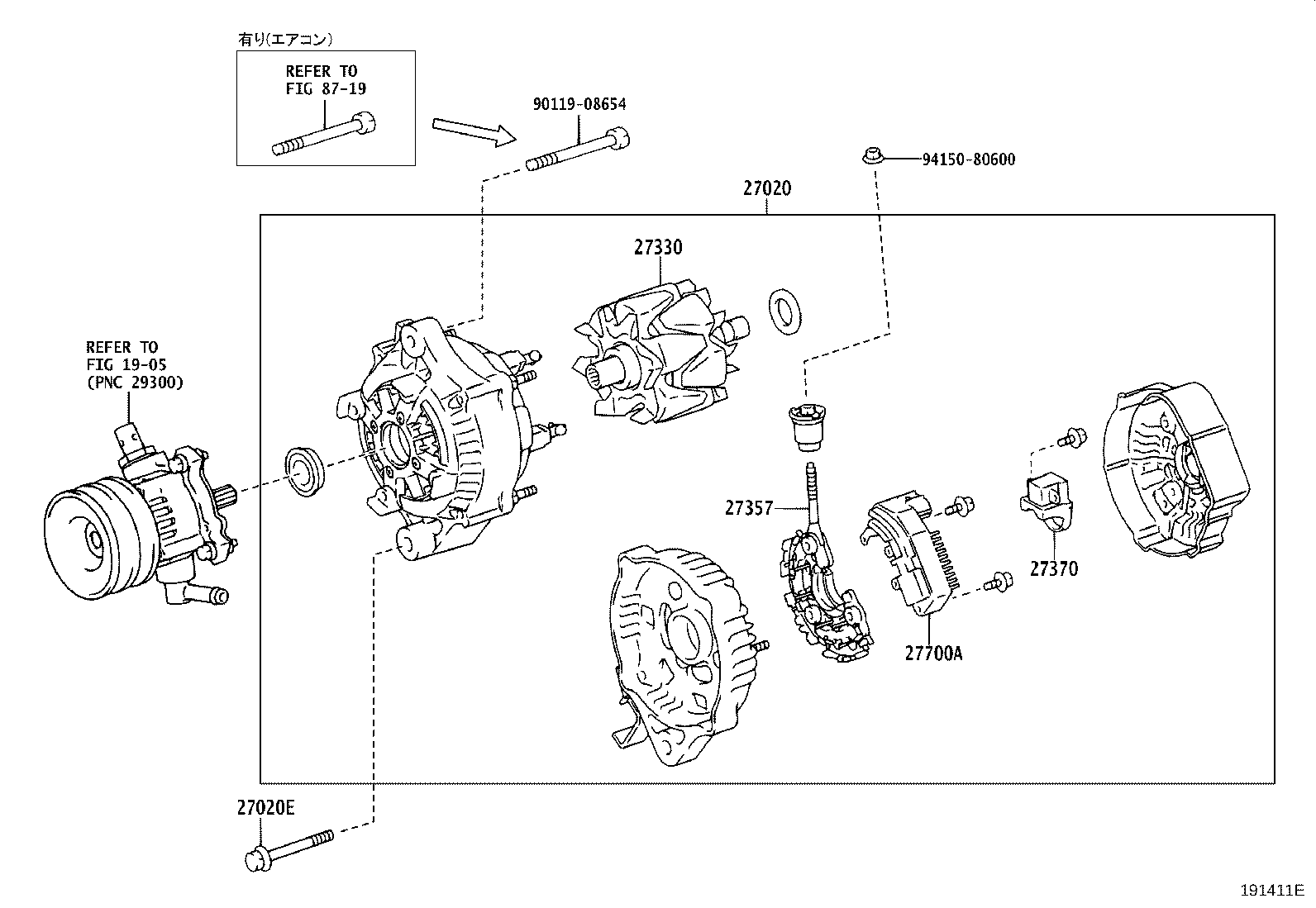

Linked diagrams
1905
8719

LY220-PSMBS (2001)
