LY220-PSMBS (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2004
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )

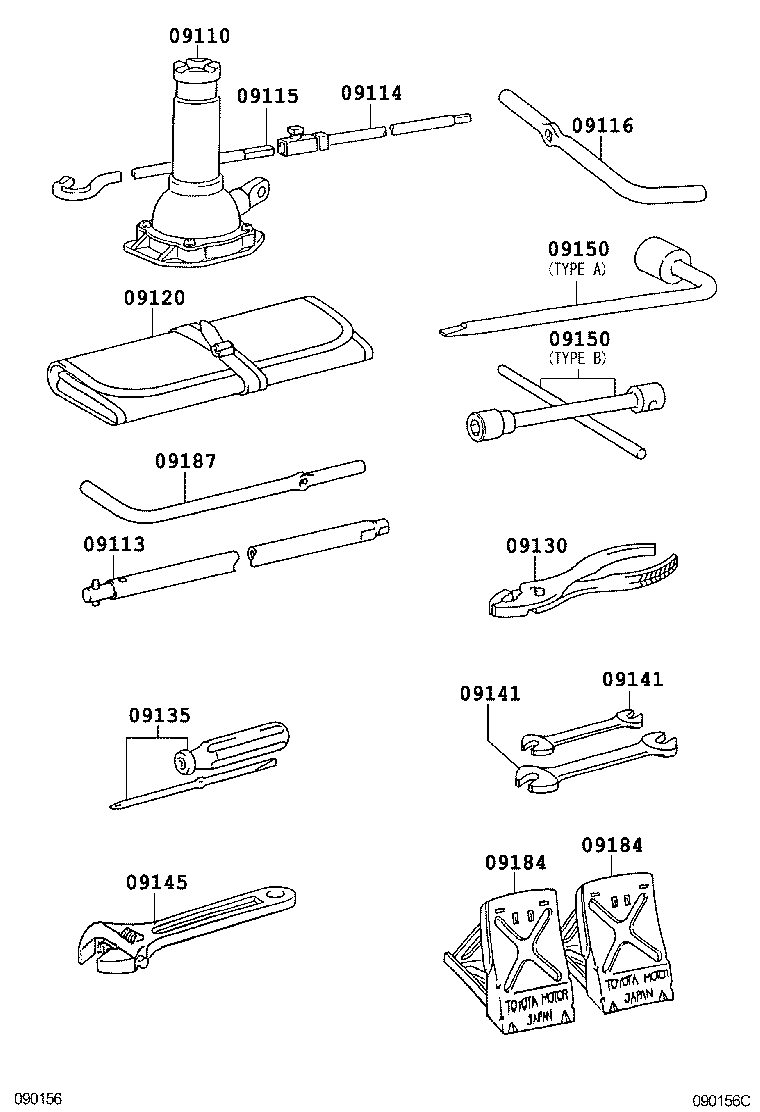

Click highlighted areas on diagram

diagram 09110 09113 09114 09115 09116 09120 09130 09135 09141 09141 09145 09150 09150 09184 09184 09187
Part # Description Qty Price
09110 - JACK ASSY
09111-25110

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..125T,12T,15T,1T

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-28010

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-35070

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
09116 - LEVER, JACK HANDLE
09116-35041

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
09120 - BAG, TOOL
09120-25040

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
09130 - PLIERS
99913-11500

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
09135 - DRIVER, SCREW
99915-10700

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
09141 - SPANNER
99914-10810

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

8 X 10

 1
99914-11214

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

12 X 14

 1
09141 - SPANNER
99914-10810

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

8 X 10

 1
99914-11214

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

12 X 14

 1
09145 - WRENCH, MONKEY
99911-11200

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
09150 - WRENCH, HUB NUT BOX
09150-26030

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2,T3,TW1,TW2,TW3

TYPE A:ｲﾗｽﾄ参照

 1
09150 - WRENCH, HUB NUT BOX
09150-26030

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2,T3,TW1,TW2,TW3

TYPE A:ｲﾗｽﾄ参照

 1
