KDY290V-RRMGY (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0408- )KDY22#,23#,24#,27#,28#,290

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1603 1603 1603 8712125040 8712425040 8712425070 8712425070 8712425140 8712425190 8712437090 8714 87245 87245A 87246A 87246B 87246B 87246B 87246C 87246C 87248A 87249A 87251C 87251C 9011908802 9016840006 9016840006 9016840006 9016840006 9046721010 9046721010 9046721010 9046721010 9155180814 9163140614 9165160616 9165160616 9415180600 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245A - HOSE, HEATER WATER, INLET A
87245-25850

KDY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A00

KDY220,230,240,270,280,290

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25A50

KDY240,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25A50

KDY240,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25A50

KDY240,290

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-25A60

KDY240,290..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A70

KDY240,290

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-25A60

KDY240,290..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A70

KDY240,290

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25280

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
87248-25300

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
Common parts
87121-25040
87124-25040
87124-25070
87124-25140
87124-25190
87124-37090
90119-08802
90168-40006
90467-21010
91551-80814
91631-40614
91651-60616
94151-80600
96134-42100
Linked diagrams
1603
8714

ILLUST NO. 1 OF 2(0408- )KDY220,230,24#,27#,28#,290

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ﾋｰﾀ)

diagram 1603 1603 1603 8712 8712125040 8712425040 8712425070 8712425080 8712425140 8712425190 8712437090 87245 87245A 87246A 87246B 87246B 87246B 87246C 87246C 87248A 87249A 87249B 87251C 87251C 87256D 9011908802 9016840006 9016840006 9016840006 9016840006 9046719022 9046719022 9046721010 9046721010 9046721010 9046721010 9155180814 9163140614 9165160616 9165160616 9415180600 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245A - HOSE, HEATER WATER, INLET A
87245-25850

KDY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25850

KDY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A00

KDY220,230,240,270,280,290

 1
87245-25A00

KDY220,230,240,270,280,290

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25A50

KDY240,290

 1
87245-25A50

KDY240,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25A50

KDY240,290

 1
87245-25A50

KDY240,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25A50

KDY240,290

 1
87245-25A50

KDY240,290

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-25A60

KDY240,290..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A60

KDY240,290..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A70

KDY240,290

 1
87245-25A70

KDY240,290

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-25A60

KDY240,290..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A60

KDY240,290..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A70

KDY240,290

 1
87245-25A70

KDY240,290

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25280

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25280

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
87248-25300

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25300

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-25030

KDY24#,290,LY240,290..06S

 1
87248-25030

KDY24#,290,LY240,290..06S

 1
87248-25290

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25290

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87256D - HOSE, REAR HEATER WATER OUTLET, D
99556-20300

KDY22#,23#,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

*H,L=240

 1
99556-20300

KDY22#,23#,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

*H,L=240

 1
Common parts
87121-25040
87124-25040
87124-25070
87124-25080
87124-25140
87124-25190
87124-37090
90119-08802
90168-40006
90467-19022
90467-21010
91551-80814
91631-40614
91651-60616
94151-80600
96134-42100
Linked diagrams
1603
8712

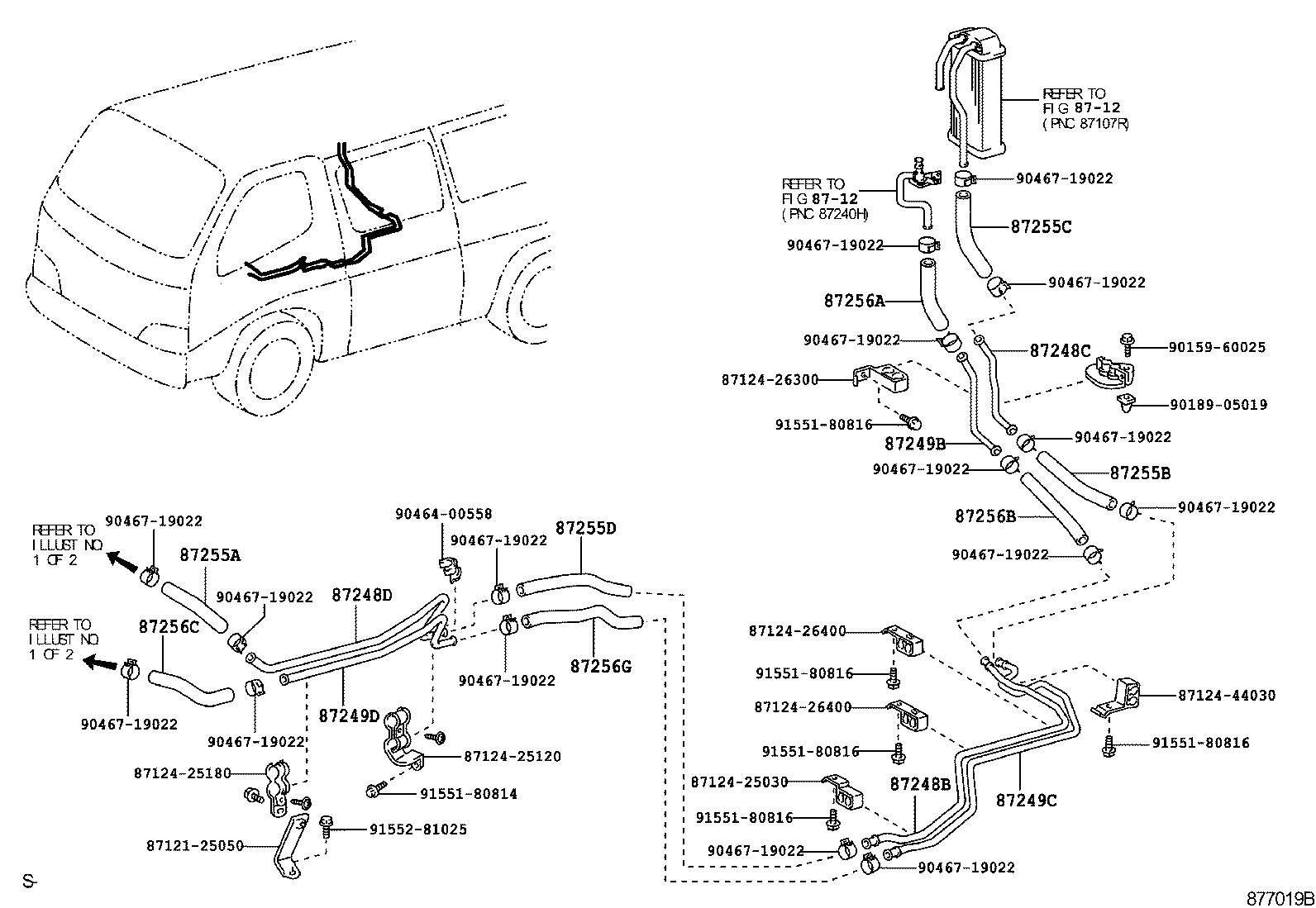

ILLUST NO. 2 OF 2(0408- )06S

Click highlighted areas on diagram

ﾘﾔ

diagram 8712 8712 8712125050 8712425030 8712425120 8712425180 8712426300 8712426400 8712426400 8712444030 87248B 87248C 87248D 87249B 87249C 87249D 87255A 87255B 87255C 87255D 87256A 87256B 87256C 87256G 9015960025 9018905019 9046400558 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9155180814 9155180816 9155180816 9155180816 9155180816 9155180816 9155281025
Part # Description Qty Price
87248B - PIPE, HEATER WATER INLET, B
87248-25020

KDY24#,290,LY240,290..06S

 1
87248C - PIPE, HEATER WATER INLET, C
87248-25040

KDY24#,290,LY240,290..06S

 1
87248D - PIPE, HEATER WATER INLET, D
87248-25330

KDY240,290..06S

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-25030

KDY24#,290,LY240,290..06S

 1
87248-25290

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-25010

KDY24#,290,LY240,290..06S

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-25640

KDY22#,23#,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20300

KDY24#,290,LY240,290..06S

*H,L=240

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20300

KDY24#,290,LY240,290..06S

*H,L=210

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-25880

KDY240,290..06S

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20200

KDY24#,290,LY240,290..06S

*H,L=140

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20300

KDY24#,290,LY240,290..06S

*H,L=280

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-25660

KDY22#,23#,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

 1
87256G - HOSE, REAR HEATER WATER OUTLET, G
87245-25890

KDY240,290..06S

 1
Common parts
87121-25050
87124-25030
87124-25120
87124-25180
87124-26300
87124-26400
87124-44030
90159-60025
90189-05019
90464-00558
90467-19022
91551-80814
91551-80816
91552-81025
Linked diagrams
8712

ILLUST NO. 1 OF 2(0408- )KDY220,230,24#,27#,28#,290 ; (0408-)KDY231..T2,T3,T4,TW3,TW4..CBU,IV

Click highlighted areas on diagram

ﾚｲﾄｳｼﾔ

diagram 1603 1603 1603 8712 8712125040 8712425040 8712425070 8712425070 8712425140 8712425190 8712437090 87245 87245A 87245B 87246A 87246B 87246B 87246B 87246C 87246C 87248A 87249A 87251C 87251C 87251C 9011908802 9016840006 9016840006 9016840006 9016840006 9046721010 9046721010 9046721010 9046721010 9163140614 9165160616 9165160616 9415180600 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245A - HOSE, HEATER WATER, INLET A
87245-25850

KDY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25850

KDY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A00

KDY220,230,240,270,280,290

 1
87245-25A00

KDY220,230,240,270,280,290

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25A50

KDY240,290

 1
87245-25A50

KDY240,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25A50

KDY240,290

 1
87245-25A50

KDY240,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25A50

KDY240,290

 1
87245-25A50

KDY240,290

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-25A60

KDY240,290..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A60

KDY240,290..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A70

KDY240,290

 1
87245-25A70

KDY240,290

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-25A60

KDY240,290..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A60

KDY240,290..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A70

KDY240,290

 1
87245-25A70

KDY240,290

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25280

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25280

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
87248-25300

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25300

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
Common parts
87121-25040
87124-25040
87124-25070
87124-25140
87124-25190
87124-37090
90119-08802
90168-40006
90467-21010
91631-40614
91651-60616
94151-80600
96134-42100
Linked diagrams
1603
8712
